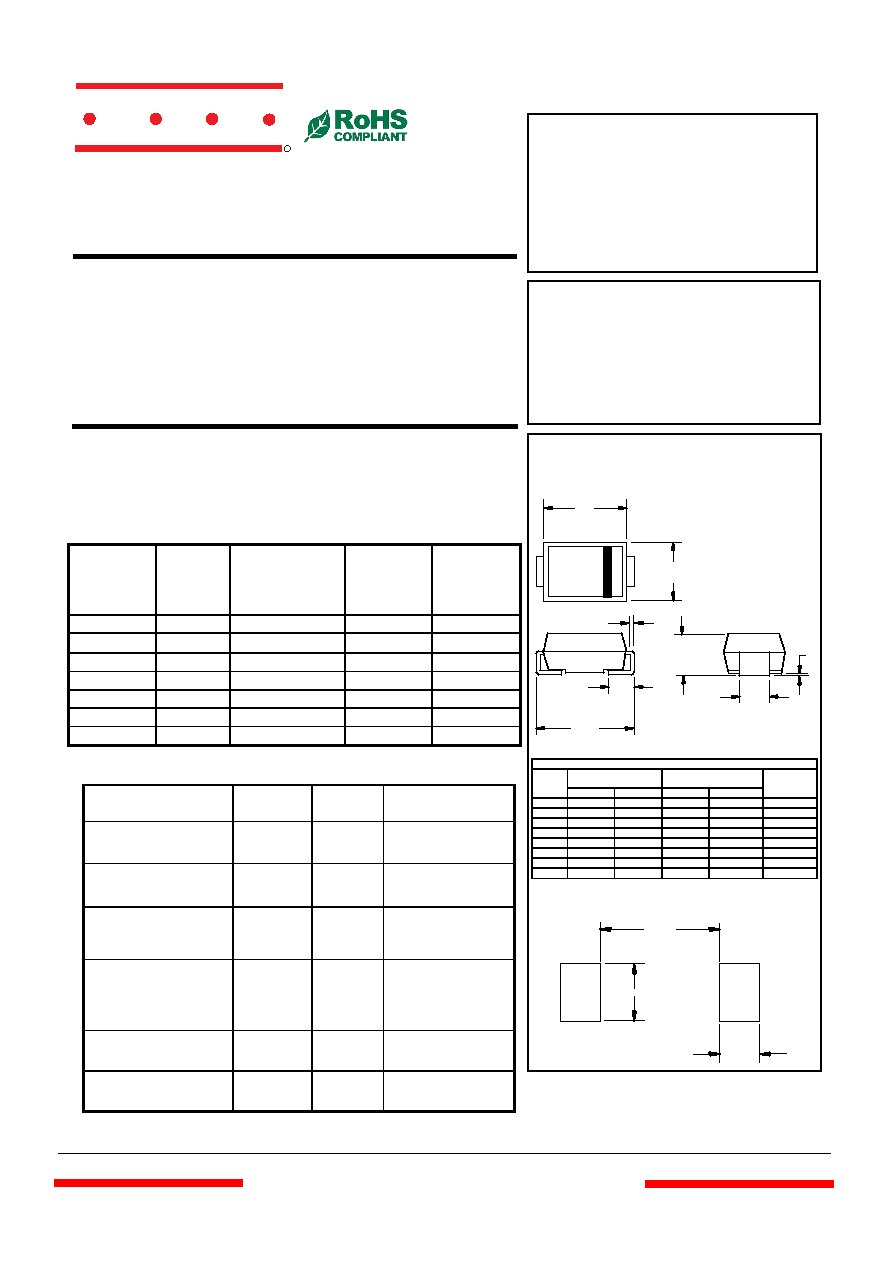

1 / 4 page

S3AB

THRU

S3MB

3.0 Amp Glass

Passivated Rectifier

50 to 1000 Volts

Features

•

Low forward voltage drop and high current capability

Maximum Ratings

•

Terminals: Solder Plated Terminal – Solderable per MIL-STD-202,

Method 208

•

Polarity: Cathode Band

•

Operating Junction Temperature:-55oC to +150oC

Electrical Characteristics @ 25OC Unless Otherwise Specified

Average Forward

Current

IO

3.0A

TT = 75OC

Non-Repetitive Peak

Forward Surge Current

IFSM

100A

8.3ms, half sine

Maximum

Instantaneous

Forward Voltage

VF

1.15V

IFM = 3.0A;

TJ = 25OC

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

IR

10μA

250μA

TJ = 25OC

TJ = 125OC

Typical Junction

Capacitance

CJ

40pF

Measured at

1.0MHz, VR=4.0V

0.050”

0.106

0.083”

SUGGESTED SOLDER

PAD LAYOUT

DO-214AA

(SMB) (LEAD FRAME)

A

B

D

C

E

F

G

H

DIMENSIONS

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.160

.185

4.06

4.70

B

.130

.155

3.30

3.94

C

.006

.012

0.15

0.31

D

..030

.060

0.76

1..52

E

.200

.220

5.08

5.59

F

.079

.103

2.01

2.62

G

.075

.087

1.91

2.21

H

.002

.008

0.05

0.203

omponents

20736 Marilla Street Chatsworth

!"#

$% !"#

MCC

Catalog

Number

Device

Marking

Maximum

Recurrent

Peak Reverse

Voltage

Maximum

RMS

Voltage

Maximum

DC

Blocking

Voltage

S3AB

50V

35V

50V

S3BB

100V

70V

100V

S3DB

200V

140V

200V

S3GB

400V

280V

400V

S3JB

600V

420V

600V

S3KB

800V

560V

800V

S3MB

1000V

700V

1000V

Revision:

F

201

7/08/21

www.mccsemi.com

1 of

4

•

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

•

Glass passivated die construction

•

Surge overload rating to 100A peak

•

Ideally suited for automatic assembly

Note1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7

a

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisture Sensitivity Level 1

•

Halogen free available upon request by adding suffix "-HF"

Typical Thermal

Resistance

RthJL

1

0oC/W

•

Storage Temperature: -55

oC to +150o C

Micro Commercial Components

M C C

R

Repetitive Peak

Forward Surge Current

IFRSM

150A

300us surge duration

900 ms between surges
