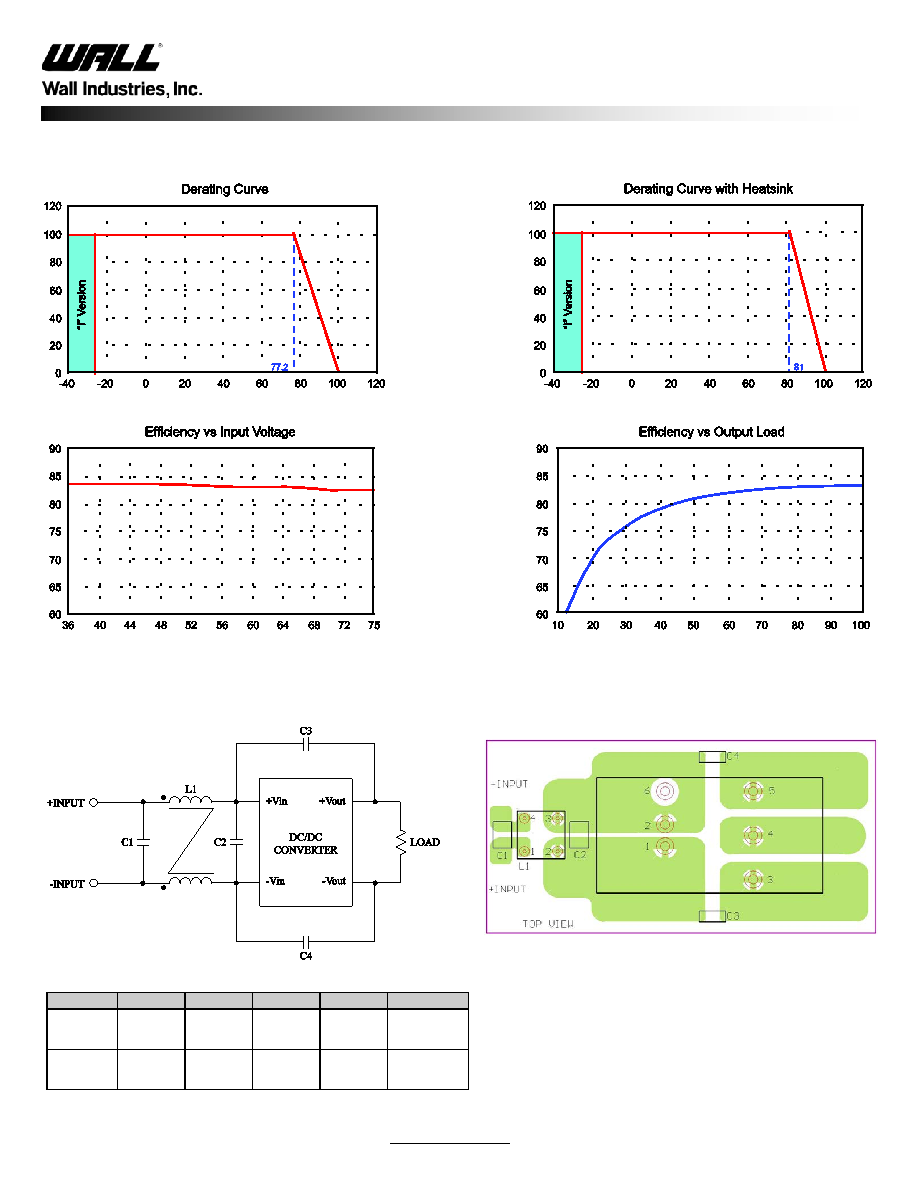

4 / 5 page  Rev. E JRW Series Single & Dual Outputs 4:1 Input Voltage Ranges 10 Watt DC/DC Power Converters Wall Industries, Inc. 37 Industrial Drive Exeter, NH 03833 04/25/2012 603-778-2300 www.wallindustries.com Fax 603-778-9797 Page 4 of 5 CHARACTERISTICS EMI FILTER Recommended Filter for EN55022 Class B Compliance Recommended EN55022 Class B Filter Circuit Layout The components used in the figure above are as follows: Model C1 C2 C3 C4 L1 24VDC nominal input 2.2µF/50V 1812 MLCC N/A 1000P/2KV MLCC 1000P/2KV MLCC 325µH Common Choke PMT-050 48VDC nominal input 2.2µF/100V 1812 MLCC 2.2µF/100V 1812 MLCC 1000P/2KV MLCC 1000P/2KV MLCC 325µH Common Choke PMT-050 |
|
|
