SMD Shielded Power Inductor

PAHP20

RoHS

ALLIED COMPONENTS INTERNATIONAL

949-356-1780

www.alliedcomponents.com

05/24/2017

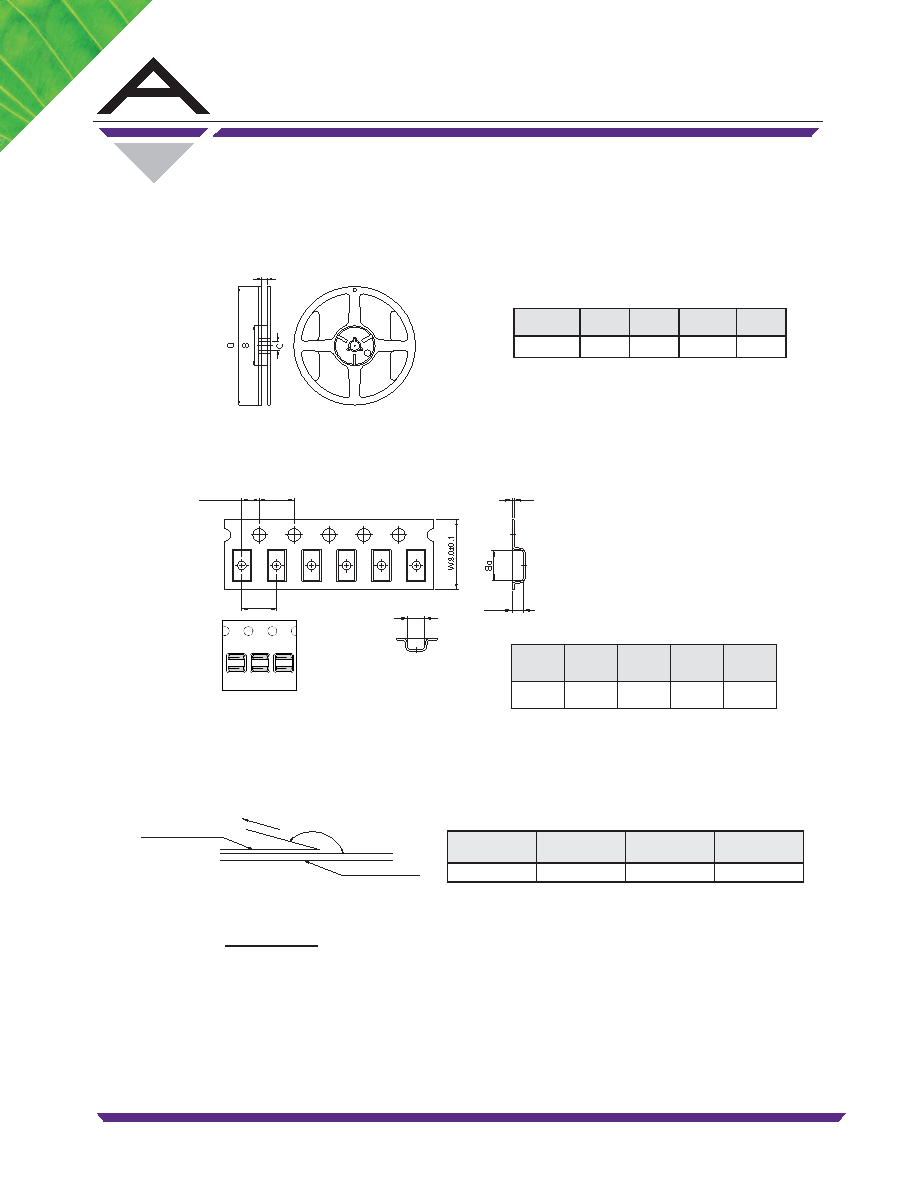

Reel Dimension

Tape Dimension

Tearing Off Force

Top cover tape

165° to180°

Base tape

F

Type

A(mm) B(mm) C(mm) D(mm)

178x8mm

50 Min

13±0.8

The force for tearing off cover tape is 15 to 80 grams in the arrow

direction under the following conditions.

Room Temp.

( )

℃

Room Humidity

(%)

Room atm

(hPa)

Tearing Speed

mm/min

5~35

45~85

860~1060

300

Bo(mm) Ao(mm) Ko(mm) P(mm)

t(mm)

2.5±0.1

2.0±0.1

1.4±0.1

4.0±0.1

.23±.05

8.4±1.0

PackagingInformation

Application Notice

‧

Storage Conditions

To maintain the solderability of terminal electrodes:

1. PAHP20Series meets IPC/JEDEC J-STD-020D standard-MSL, level 1.

2. Temperature and humidity conditions: Less than 40°C and 60% RH.

3. Recommended products should be used within 12 months form the time of delivery.

4. The packaging material should be kept where no chlorine or sulfur exists in the air.

‧

Transportation

1. Products should be handled with care to avoid damage or contamination from perspiration and skin oils.

2. The use of tweezers or vacuum pick up is strongly recommended for individual components.

3. Bulk handling should ensure that abrasion and mechanical shock are minimized.

A

178x8mm

t

Ko

P

Ao

Po:4±0.1

Bottom View

178±2.0
