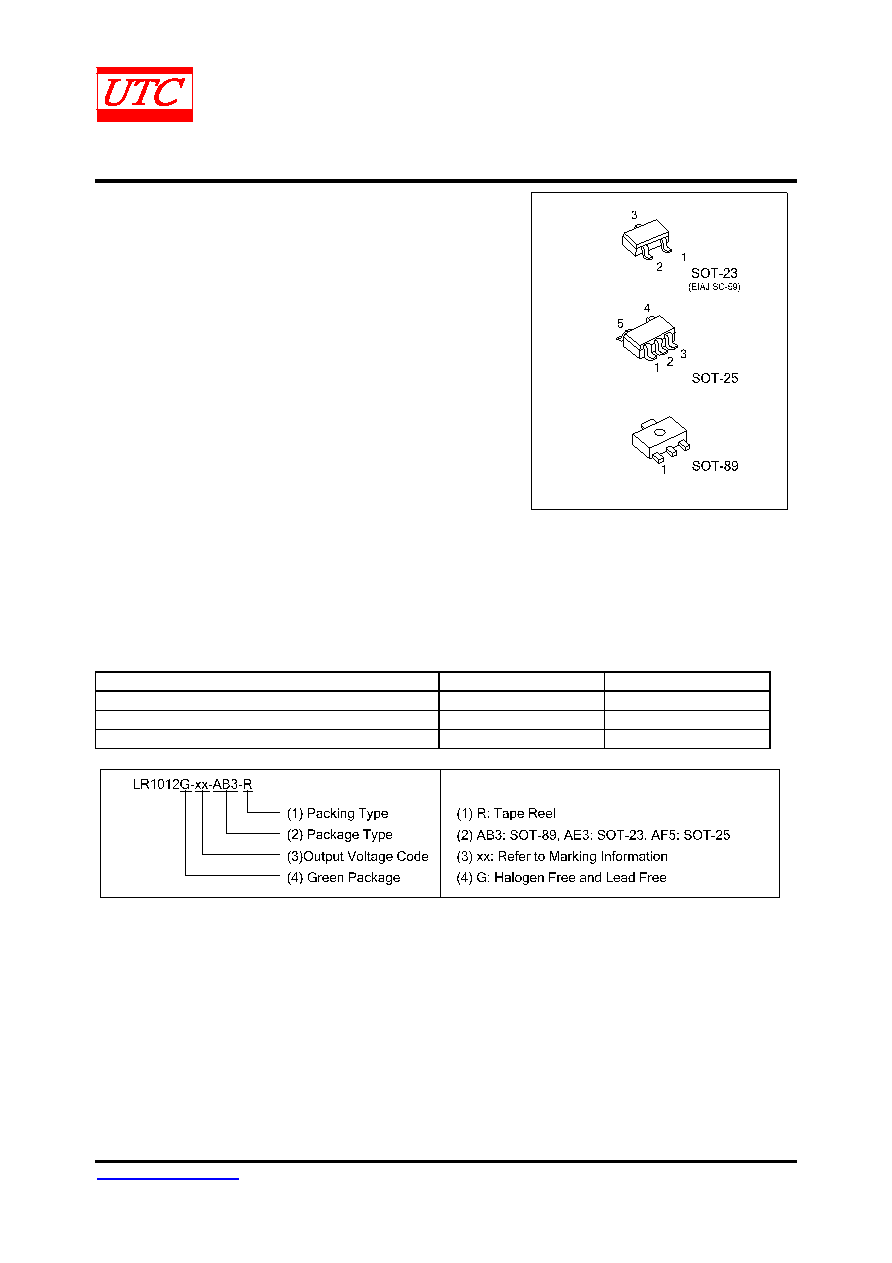

UNISONIC TECHNOLOGIES CO., LTD

LR1012

CMOS IC

www.unisonic.com.tw

1 of 4

QW-R502-495.G

HIGH OPERATING VOLTAGE

CMOS VOLTAGE REGULATOR



DESCRIPTION

The UTC LR1012 series is high operating voltage regulator

using UTC CMOS technology. The max operating voltage of UTC

LR1012L is 16V so it works best in high-voltage applications.

Moreover, it is also suitable in constructing lowpower portable

devices including small current consumption, power-off function

and short-current protection.



FEATURES

* Operating current: Max. 1.8µA (3.0V)

* Output voltage: 2.0 ~ 6.0V, as 0.1V step

* ±2.0% output voltage accuracy

* Output current:

50mA capable @ 3.0V output, VIN=5V

75mA capable @ 5.0V output, VIN=7V

* Dropout voltage:120mV @VOUT = 5.0V, IOUT=10mA



ORDERING INFORMATION

Ordering Number

Package

Packing

LR1012G-xx-AB3-R

SOT-89

Tape Reel

LR1012G-xx-AE3-R

SOT-23

Tape Reel

LR1012G-xx-AF5-R

SOT-25

Tape Reel

Note: xx: Output Voltage, refer to Marking Information.
