UNISONIC TECHNOLOGIES CO., LTD

LXXLD36

Preliminary

CMOS IC

www.unisonic.com.tw

1 of 7

Copyright © 2017 Unisonic Technologies Co., Ltd

QW-R102-090.c

3A, ULTRA LOW DROPOUT

(0.17V @ 3A) LINEAR

REGULATOR



DESCRIPTION

The UTC LXXLD36 is a typical LDO with the features of very low

dropout voltage as low as 0.17V at output current 3A.

For normal operation, two supply voltages are necessary. One

called control voltage from other equipment can shutdown the

output voltage and it should pull and hold the voltage of EN pin less

than 0.5V. Another one is the main supply voltage whose purpose is

for main power conversion, to keep the power dissipation low, and

to make the dropout voltage lower.

Internally, in the UTC LXXLD36, there’re many functions which

can be seen in the block figure to prevent the IC from being

damaged. Internal Power-On-Reset (POR) circuit can control the

two supply voltages to prevent fault operations of the circuit; the

thermal shutdown circuit is able to protect the device from over

thermal operation, and a current limit function will keep the device

work safely under current over-loads.

The UTC LXXLD36 can be used as an ideal to provide well

supply voltage in the applications, such as front-side-bus

(1.2V/3A) and note book PC applications.



FEATURES

* Low ESR Output Capacitor

* Fast Transient Response

* Output Voltage Adjustable through External Resistors

* With internal Soft-Start

* Internal Current Limit Protection

* Internal Under Voltage Protection

* Hysteretic Thermal Shutdown

* With Power-OK Output (with a Delay Time)

* Low Shutdown Quiescent Current (<30 uA)

* Shutdown/Enable Control Function



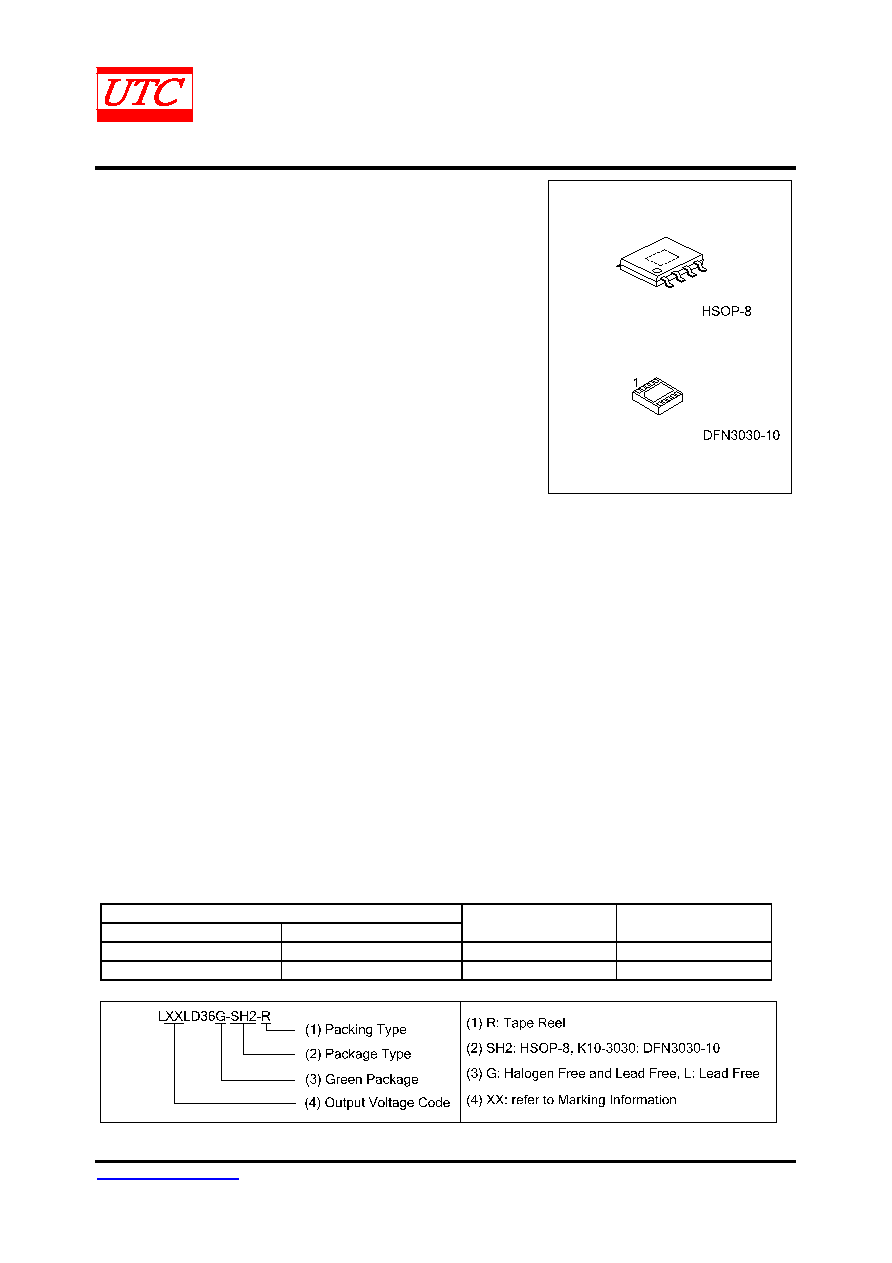

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

LXXLD36L-SH2-R

LXXLD36G-SH2-R

HSOP-8

Tape Reel

LXXLD36L-K10-3030-R

LXXLD36G-K10-3030-R

DFN3030-10

Tape Reel
