UNISONIC TECHNOLOGIES CO., LTD

UCS16502S

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 10

Copyright © 2017 Unisonic Technologies Co., Ltd

QW-R103-108.G

HIGH PERFORMANCE

CURRENT MODE POWER

SWITCH



DESCRIPTION

The UTC UCS16502S is an integrated PWM controller and

Power MOSFET specifically designed for switching operation

with minimal external components. The UTC UCS16502S is

designed to provide several special enhancements to satisfy the

needs, for example, Power-Saving mode for low standby power,

Frequency Hopping , Constant Output Power Limiting , Slope

Compensation ,Over Current Protection (OCP), Over Voltage

Protection (OVP), Over Load Protection (OLP), Under Voltage

Lock Out (UVLO), Over Temperature Protection (OTP), etc. IC

will be shutdown or can auto-restart in situations.



FEATURE

* Internal Power MOSFET (650V)

* Programming Gate Driver Capability

* Frequency hopping for Improved EMI Performance.

* Lower than 30mW Standby Power Design

* Linearly decreasing frequency to 20~35KHz during light load

* Internal Soft start

* Internal Slope Compensation

* Constant Power Limiting for universal AC input Range

* Gate Output Maximum Voltage Clamp(16V)

* Over temperature protection

* Overload protection

* Over voltage protection

* Leading edge blanking

* Cycle-by-Cycle current limiting

* Under Voltage Lock Out



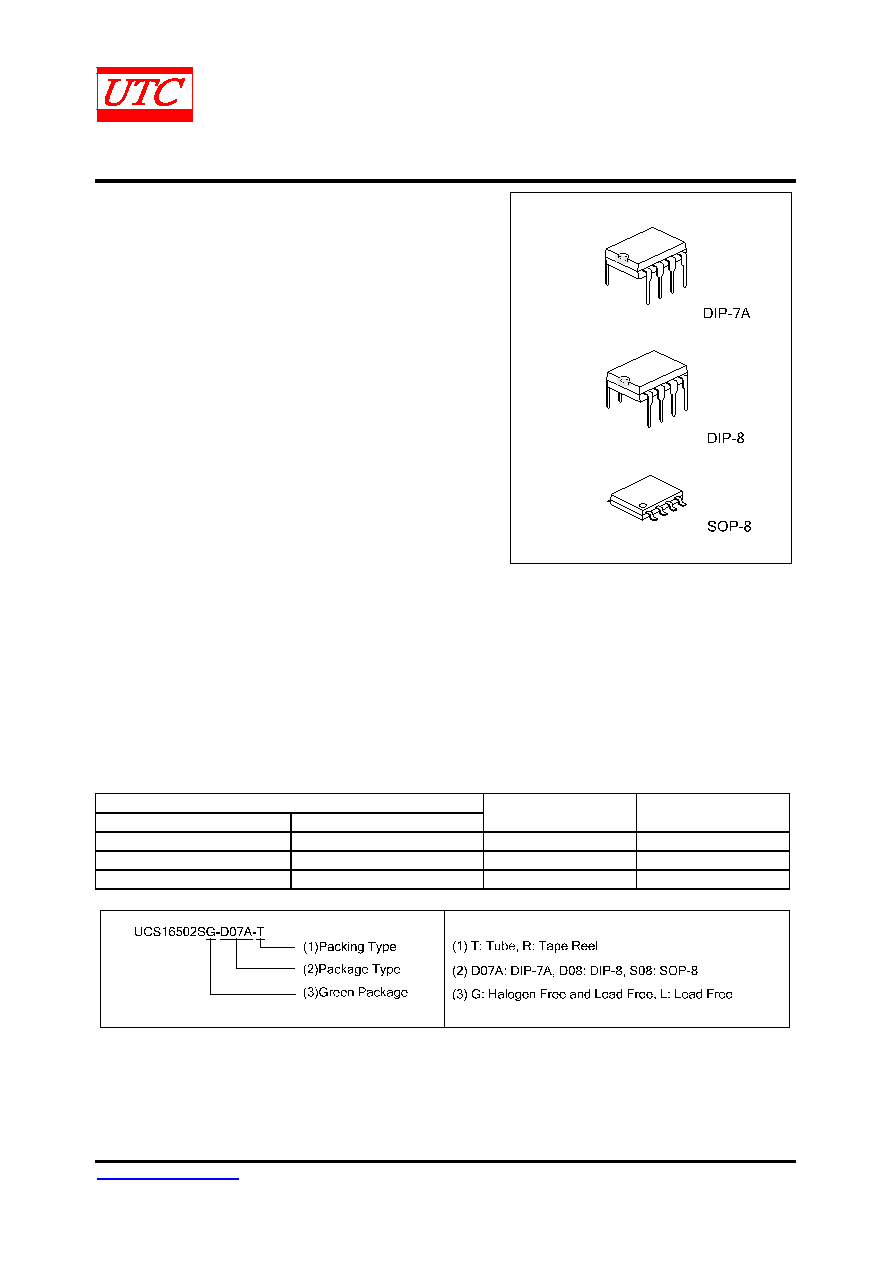

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

UCS16502SL-D07A-T

UCS16502SG-D07A-T

DIP-7A

Tube

UCS16502SL-D08-T

UCS16502SG-D08-T

DIP-8

Tube

UCS16502SL-S08-R

UCS16502SG-S08-R

SOP-8

Tape Reel
