INMP522

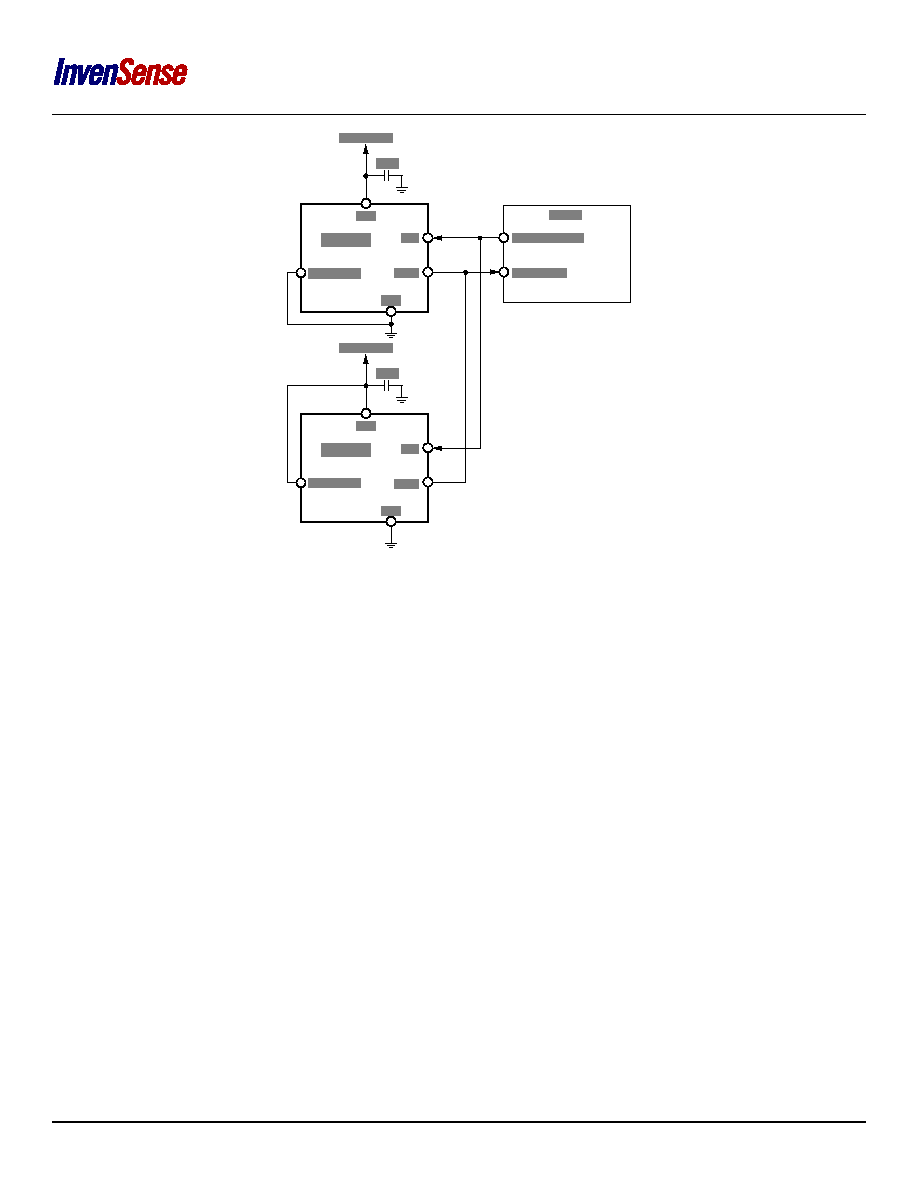

Figure 12. Stereo PDM Microphone Connection to Codec
Decouple the VDD pin of the INMP522 to GND with a 0.1 µF capacitor. Place this capacitor as close to VDD as the printed circuit board
(PCB) layout allows.
Do not use a pull-up or pull-down resistor on the PDM data signal line because the resistor can pull the signal to an incorrect state
during the period that the signal line is tristated.
CLOCK OUTPUT
CODEC
0.1µF
1.8V TO 3.3V
GND
L/R SELECT
DATA
INMP522
CLK
VDD
DATA INPUT
0.1µF
1.8V TO 3.3V
GND
L/R SELECT
DATA
INMP522
CLK
VDD
Page 13 of 21
Document Number: DS-INMP522-00
Revision: 1.1
Rev Date: 02/06/2014
