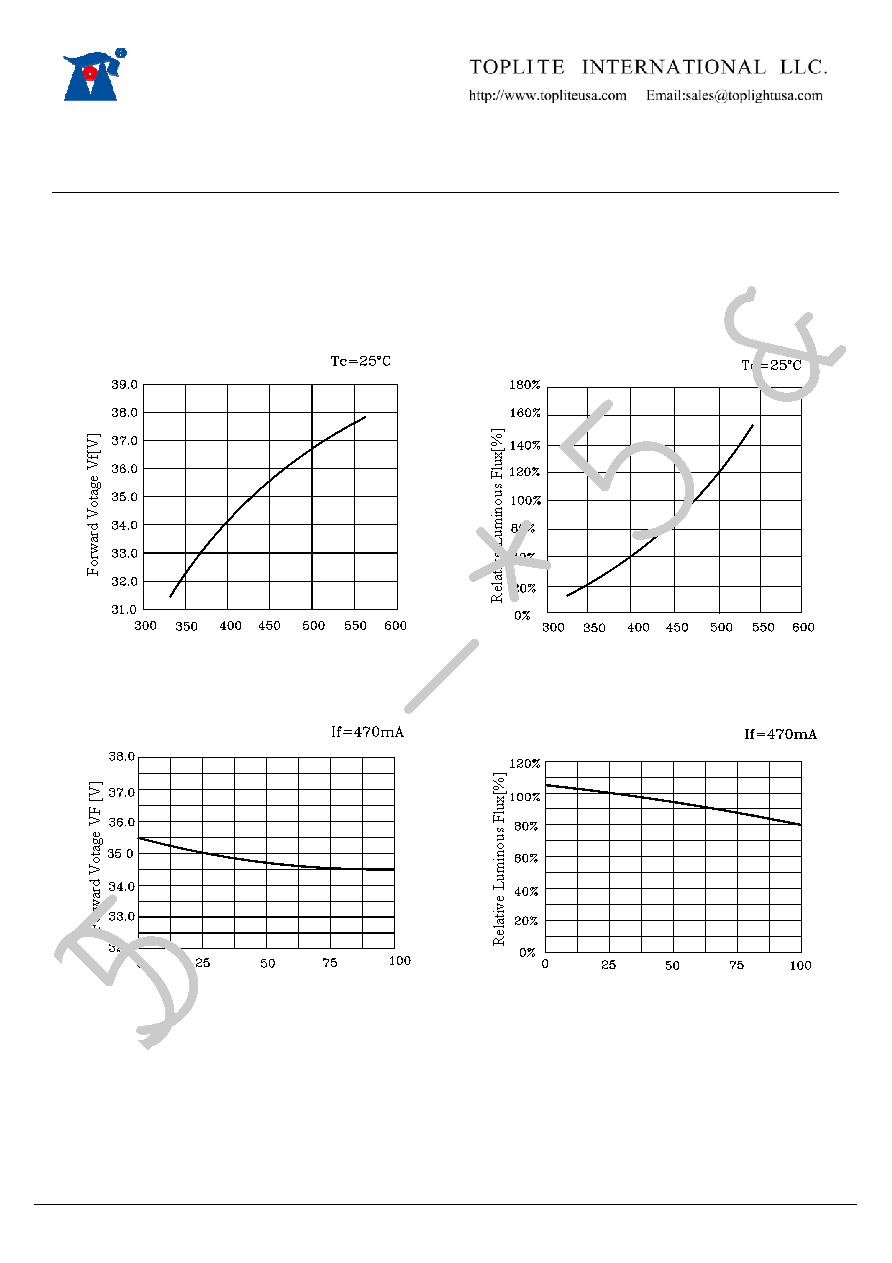

background image
TECHNICAL DATA SHEET
ATE-R20-18W
<FOR TOPLITE COB MODULE>
4 / 9
A/1
ATE-R20-18W SERIES
Revision issued in 2014.
3-3. Characteristics diagram (TYP.)
Case Temperature Vs. Forward Votage
Case Temperature Tc[°C]
Forward Current IF[mA]
Forward Votage Vs. Forward Current
Forward Current IF [mA]
Forward Current Vs.Relative Luminous Flux
Case Temperature Tc[°C]
Case Temperature Vs. Relative Luminous Flux
