TAI-TECH

www.tai-tech.com.tw

1. Features

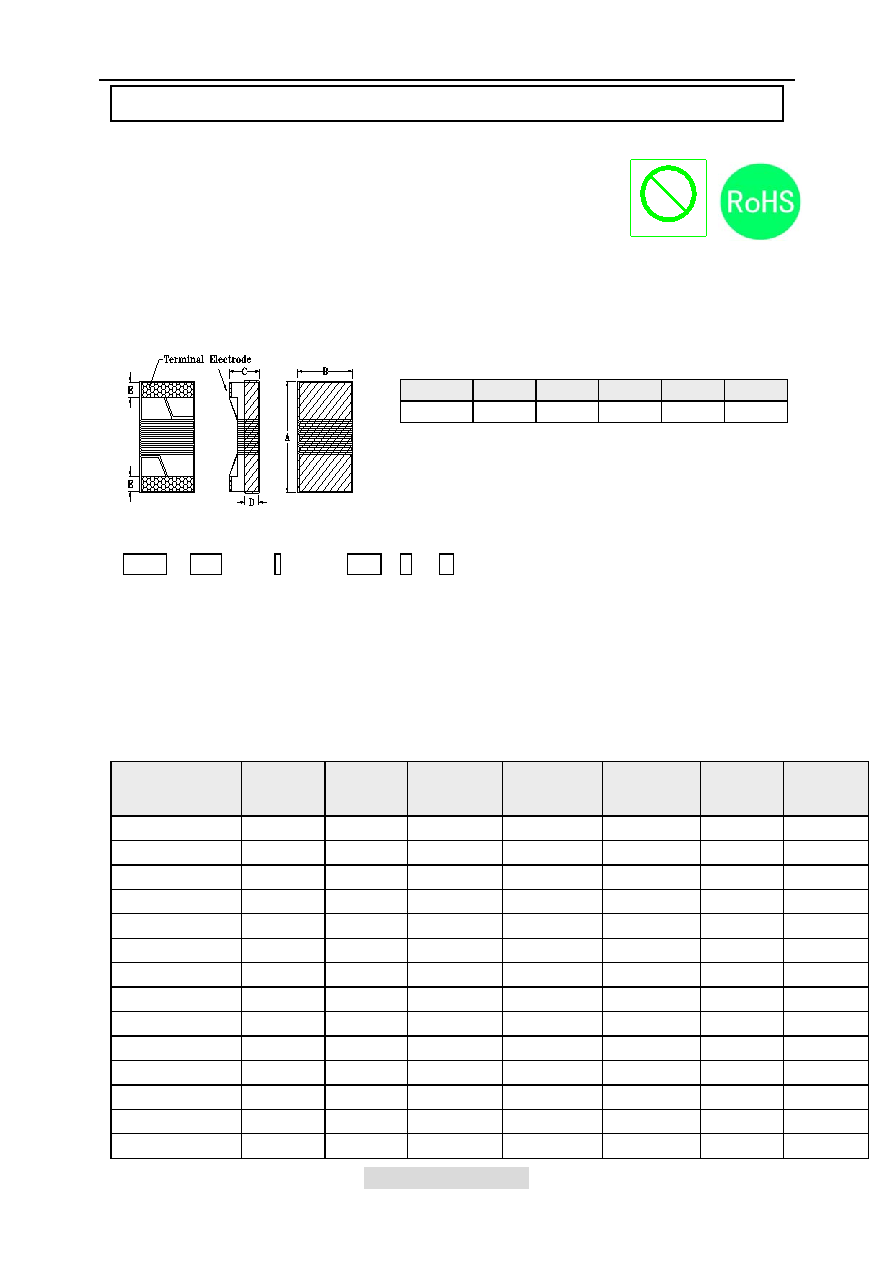

2. Dimensions

3. Part Numbering

4. Specification

SWC

108

I

-

10N

J

A

B

C

D

E

F

A: Series

B: Dimension

LxW

C: Lead free type

D: Inductance

10N=10nH

E: Inductance Tolerance

G=±2%, J=±5%, K=±10%

F: Control S/N

Size

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

SWC108I

2.92 max.

2.79 max.

2.20 max.

1.20 ref.

0.55±0.1

Unit:mm

1. Ceramic core wire wound construction.

2. No batch to batch variations in inductance

3. High Reliability due to ceramic wire wound construction.

4. High frequency application.

5. Small footprint as well as low profile.

6. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

7. Operating temperature -40~+125℃ (Including self - temperature rise)

High Frequency Winding Type Chip Inductor

SWC108I-SERIES

Part Number

Inductance

(nH)

Tolerance

Test Frequency

(Hz)

Q @ Test Freq.

min.

Rated Current

(mA) max.

DCR

(Ω) max.

SRF

(MHz) min.

SWC108I-10N□A

10

G, J, K

0.1V/50M

50/500

1000

0.08

4100

SWC108I-12N□A

12

G, J, K

0.1V/50M

50/500

1000

0.09

3300

SWC108I-15N□A

15

G, J, K

0.1V/50M

50/500

1000

0.18

2500

SWC108I-18N□A

18

G, J, K

0.1V/50M

50/350

1000

0.11

2500

SWC108I-22N□A

22

G, J, K

0.1V/50M

55/350

1000

0.12

2400

SWC108I-27N□A

27

G, J, K

0.1V/50M

55/350

1000

0.13

1600

SWC108I-33N□A

33

G, J, K

0.1V/50M

60/350

1000

0.14

1600

SWC108I-39N□A

39

G, J, K

0.1V/50M

60/350

1000

0.15

1500

SWC108I-47N□A

47

G, J, K

0.1V/50M

65/350

1000

0.16

1500

SWC108I-56N□A

56

G, J,K

0.1V/50M

65/350

1000

0.18

1300

SWC108I-68N□A

68

G, J,K

0.1V/50M

65/350

1000

0.20

1300

SWC108I-82N□A

82

G, J,K

0.1V/50M

60/350

1000

0.22

1000

SWC108I-R10□A

100

G, J,K

0.1V/25M

60/350

650

0.56

1000

SWC108I-R12□A

120

G, J,K

0.1V/25M

60/350

650

0.63

950

Halogen-free

Halogen
