Technical Data

10514

Effective March 2016

FP0707R

High frequency, high current power inductors

www.eaton.com/elx

Product specifications

Part Number8

OCL1

(nH) ±10%

FLL2

(nH) minimum

rms

(A)

sat1

(A)

sat2

(A)

sat3

(A)

DCR (mΩ)

±5% @ 20 °C

K-factor7

FP0707R1-R110-R

110

0.30

542

1. Open Circuit Inductance (OCL) Test Parameters: 100 kHz, 0.1 Vrms, 0.0 Adc, +25 °C

2. Full Load Inductance (FLL) Test Parameters: 100 kHz, 0.1 Vrms, I

sat1, +25 °C

3. I

rms: DC current for an approximate temperature rise of 40 ºC without core loss. Derating is

necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of

other heat generating components will affect the temperature rise. It is recommended that the

temperature of the part not exceed 125 °C under worst case operating conditions verified in the

end application.

4. I

sat1: Peak current for approximately 20% rolloff @ +25 °C

5. I

sat2: Peak current for approximately 20% rolloff @ +100 °C

6. I

sat3: Peak current for approximately 20% rolloff @ +125 °C

7. K-factor: Used to determine B

p-p for core loss (see graph).

p-p = K * L * ∆I * 10

-3

. B

p-p:(Gauss), K: (K-factor from table),

L: (Inductance in nH), ∆I (Peak to peak ripple current in Amps).

8. Part Number Definition: FP0707Rx-Rxxx-R

FP0707R= Product code and size

x= Version indicator

-Rxxx= Inductance value in μH, R= decimal point

-R suffix = RoHS compliant

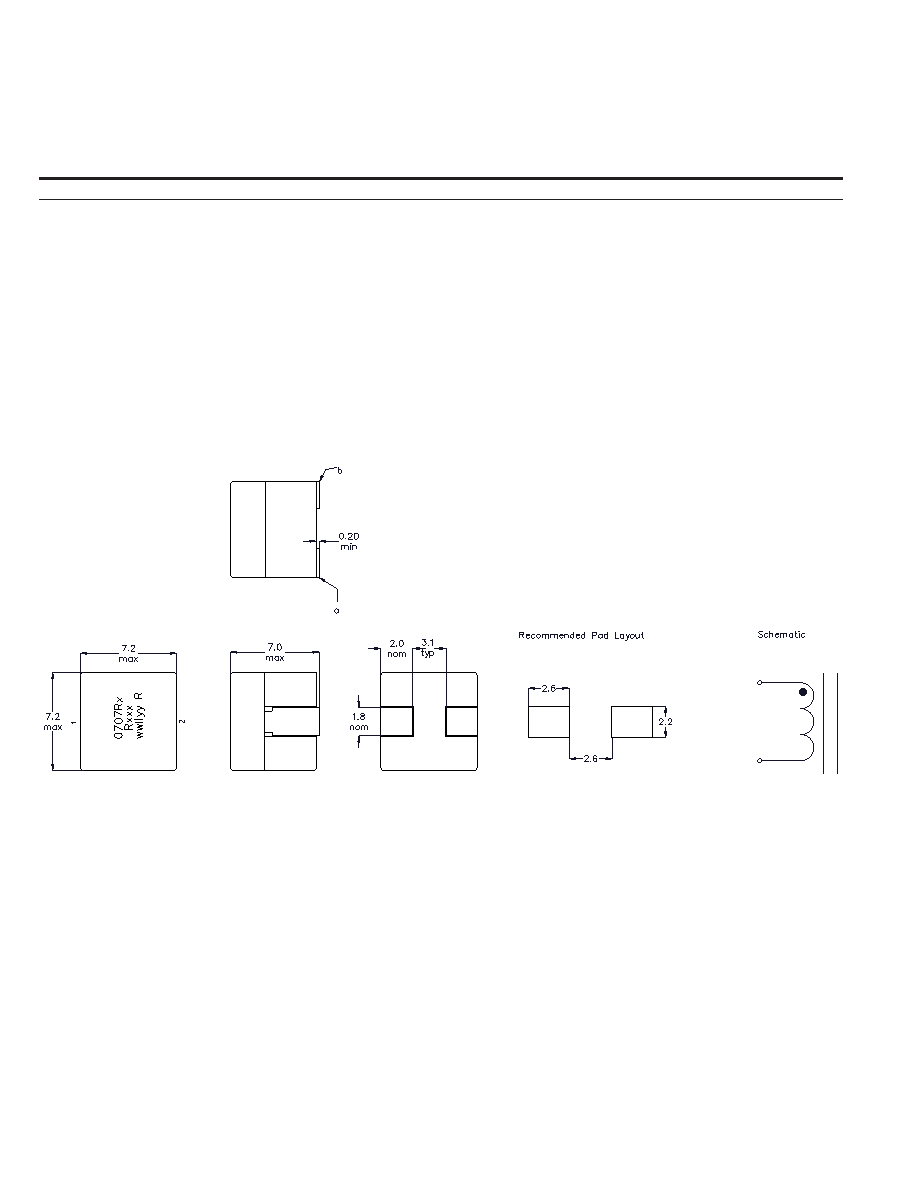

Dimensions (mm)

Part marking: 0707Rx (x = Version indicator), Rxxx = Inductance value in uH (R = decimal point), wwllyy = date code, R = revision level

Tolerances are ±0.15 millimeters unless stated otherwise.

All soldering surfaces to be coplanar within 0.1 millimeter

DCR measured from point “a” to point “b”

Do not route traces or vias underneath the inductor
