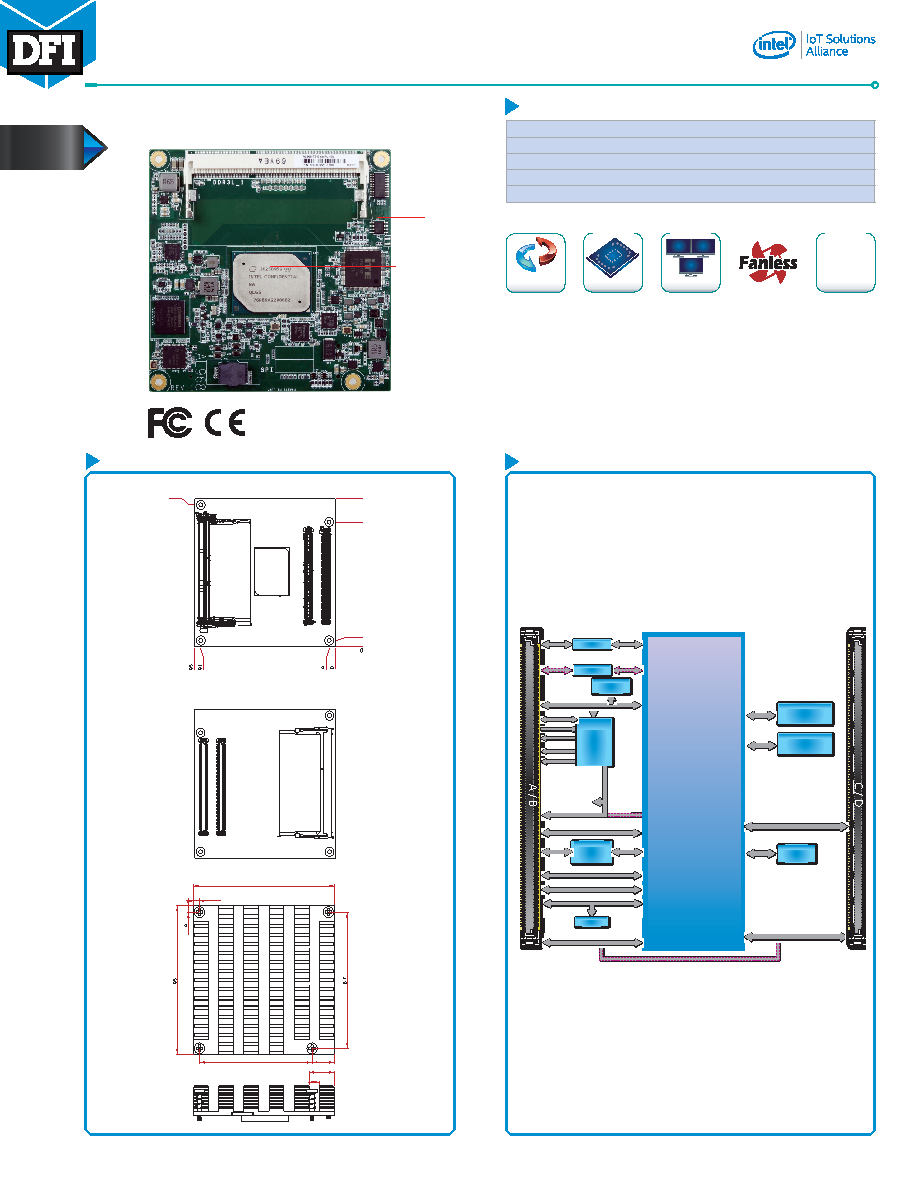

Block Diagram

Mechanical Drawing

AL968

Features

DDR3L

SODIMM

EEPROM

2x SATA 3.0

4x USB 3.0

SMBus

Intel Atom® Processor

E3900 Series

Intel® GLAN

I211AT/I210IT

MDI

SPI Flash

SPI Bus

DDR3L 1600MHz

SODIMM

Channel A

PCIe x1

4x PCIe x1 (1 x4/2 x2/1 x2, 2 x1/4 x1)

LPC Bus

8-bit DIO

WDT

I2C Bus

Serial Port 0,1

Fan PWM/

TACH_IN

SLP/LID

TCA6408A

Embedded

Controller

IT8528E

DDR3L 1600MHz

SODIMM

Channel B

DDI Port 1

HDA

8x USB 2.0

eDP/DDI

PTN3460

LVDS

PTN3355

VGA

e.MMC 5.0

MMC

SATA 3.0 port 1 is optional with USB 3.0 port 5

TPM 1.2/2.0

(Option)

Bottom View

Top View

4

80

91

95

7

15

76

17

95

4

Atom

Intel Atom®Processor E3900 Series

COM Express® Compact

• Dual channel DDR3L 1600MHz SODIMM up to 8GB

• Three independent displays: VGA*/DDI + LVDS*/eDP + DDI

• DP++ resolution supports up to 4096x2160 @ 60Hz

• Multiple expansion: 4 PCIe x1, 1 LPC, 1 I2C, 1 SMBus, eMMC

• Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0, 2 SATA 3.0

R

2.1

Type

6

3 Displays

* Populated by default

Wide

Temperature

-400C

850C

Intel Atom®

Processor E3900

Series

eMMC
