– Network port to network port

Insertion loss:

(Typical)

Network Port: 2.5 dB

Monitor Port: 5.5dB

Insertion loss:

(Measure)

Network Port: 3.25 dB

Monitor Port: 5.0 dB

General Technical Specifications

Size:

x 120.5mm ( wide) x 148mm (depth) x 27.7mm (height) (4.744″ x 5.827″ x 1.07″)

Weight

610 gram (21.52 oz)

Operating Humidity:

0%

–90%, non-condensing

Operating Temperature:

0°C

– 50°C (32°F – 122°F)

Storage Temperature:

-20°C

–65°C (-4°F–149°F)

EMC Certifications:

Class B

MTBF*:

> 50 years

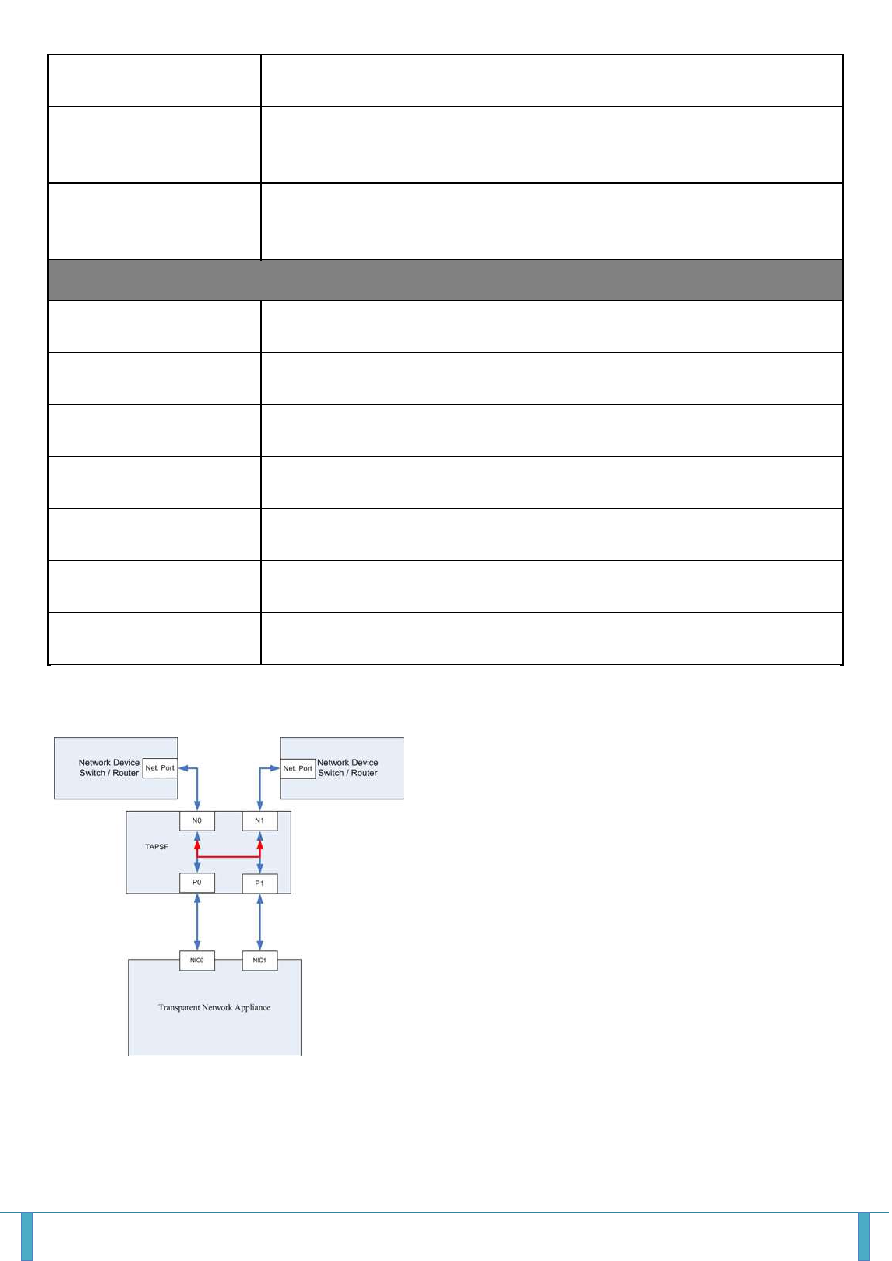

Figure: 2

– TAP Mode Functional Block Diagram
