MODEL: 38BSH3

38BSH3 SPECIFICATIONS

ES-4574 Rev.3 Page 2/4

https://www.m-system.co.jp/

One-shot pulse width: 1.5 – 2.5 sec. (fixed)

Relay life

External protection: Recommended to protect the contact

and to eliminate noise when driving an inductive load (coils,

etc.)

Attaching jumper to SHORT or OPEN of CH1 COM and CH2

COM enables to switch common or separation.

INSTALLATION

Current consumption: Approx. 50 mA

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 30 to 95 %RH (non-condensing)

Mounting: Standard Rack 38BXx

Weight: 150 g (0.33 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @ 1 minute

(input or power to ch.1 to ch.2 to ground)

500 V AC @ 1 minute (ch.1 start - ch.1 stop)

500 V AC @ 1 minute (ch.2 start - ch.2 stop)

(Non-isolation when common is connected)

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

Low Voltage Directive

EN 61010-1

Measurement Category II (output)

Pollution Degree 2

Input or power to ch.1 to ch.2: Reinforced insulation

(300 V)

RoHS Directive

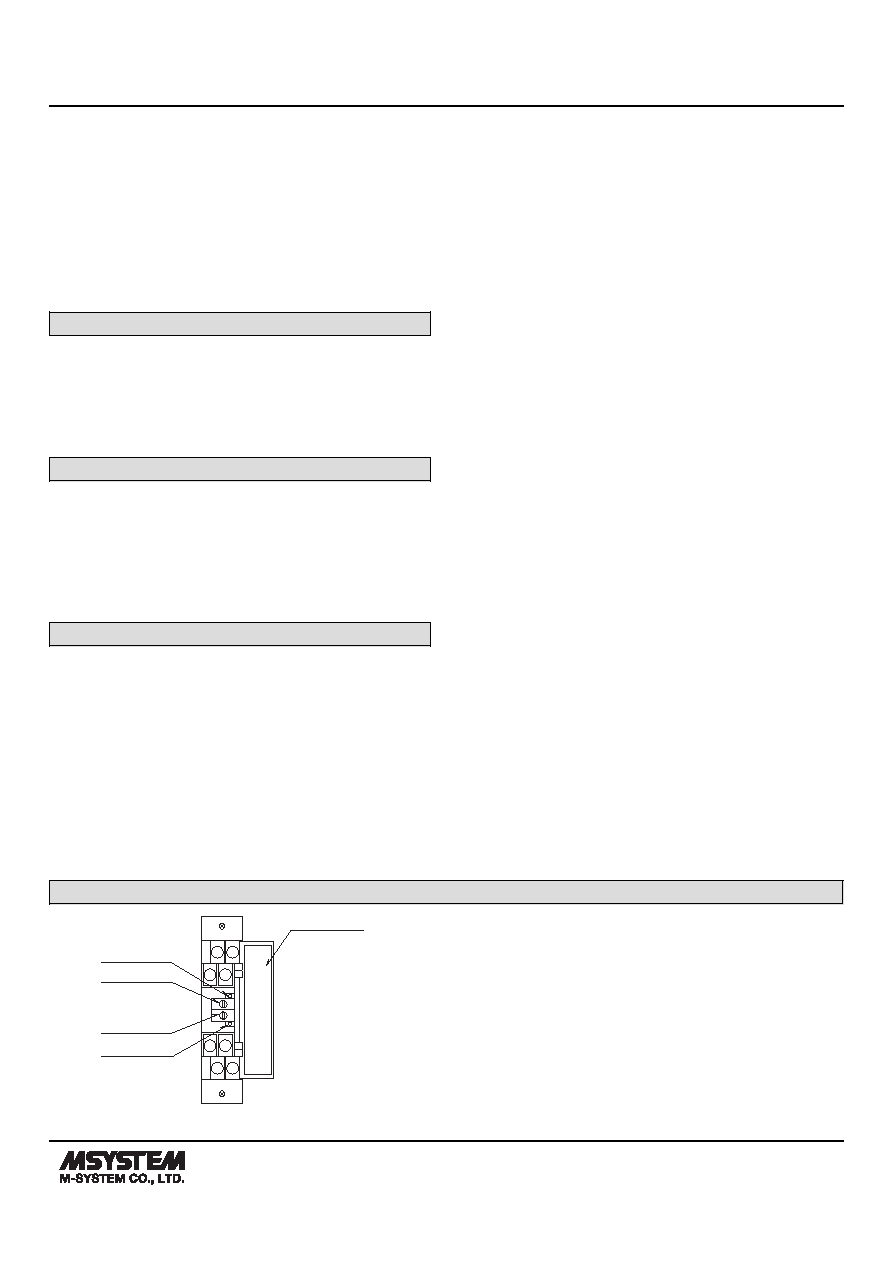

EXTERNAL VIEW

1

2

3

4

7

8

5

6

Ch. 2

•

Status LED

•

Test Switch

Ch. 1

•

Status LED

•

Test Switch

Terminal Cover
