MODEL: 61D

61D SPECIFICATIONS

ES-6629 Rev.14 Page 4/4

https://www.m-system.co.jp/

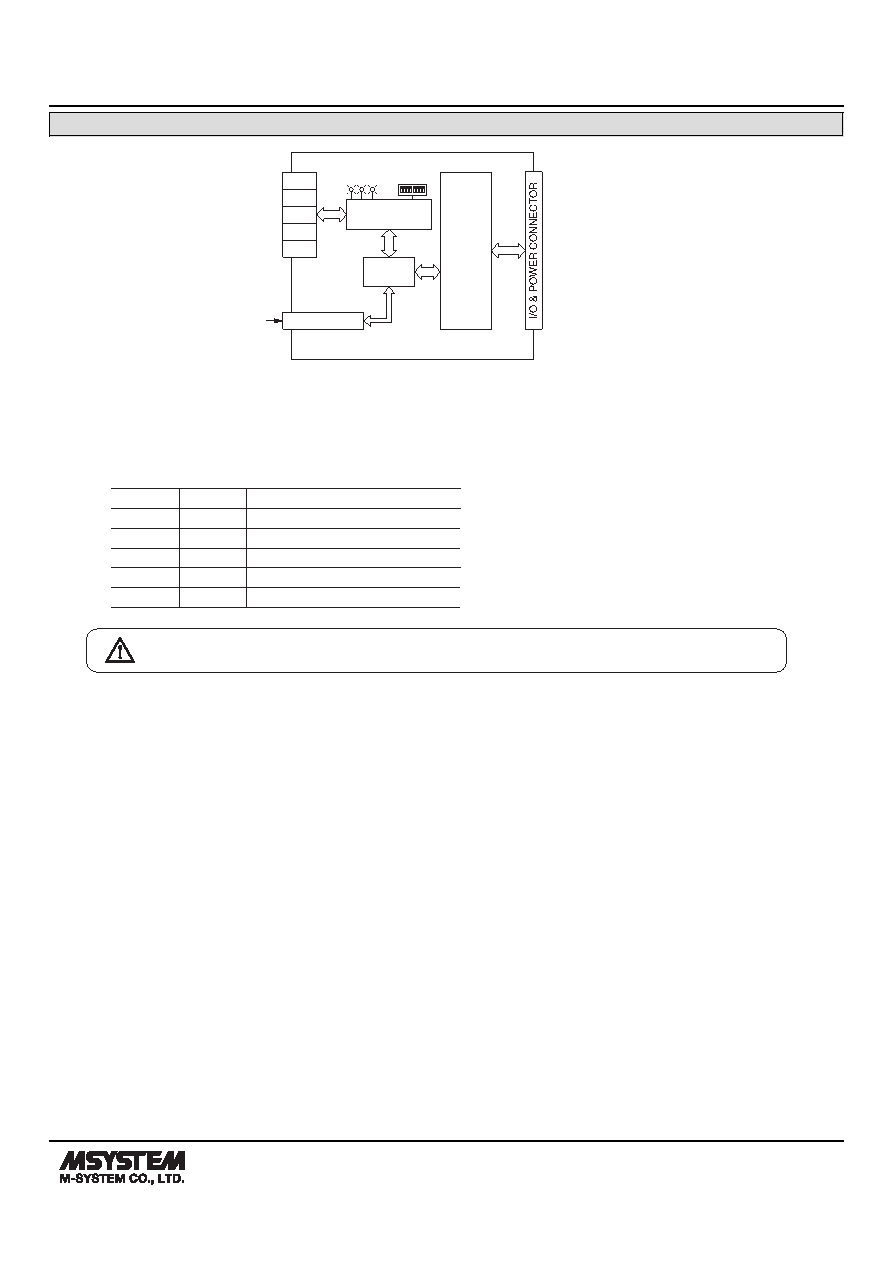

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

A / D

or

D / A

Conv.

I / O

CPU

DeviceNet

Comm. CPU

SERIAL

TRANSMISSION

LINE

MODULAR JACK

DIP SW

INDICATOR

LED

V+

CAN_H

Drain

CAN_L

V–

To Other

DeviceNet

Devices

To

Installation

Base

PU-2x

■ CABLE IDENTIFICATION

The following table defines wire insulation colors and

designations. The terminal block is labeled also in

the same colors so that the correct assignment can

be confirmed.

COLOR

DESIG.

DESCRIPTION

black

V –

Power (–)

blue

CAN_L

Signal Low

bare

Drain

Shield

white

CAN_H

Signal High

red

V +

Power (+)

Specifications are subject to change without notice.
