MODEL: 48NAM

48NAM SPECIFICATIONS

ES-9434 Rev.13 Page 8/9

http://www.m-system.co.jp/

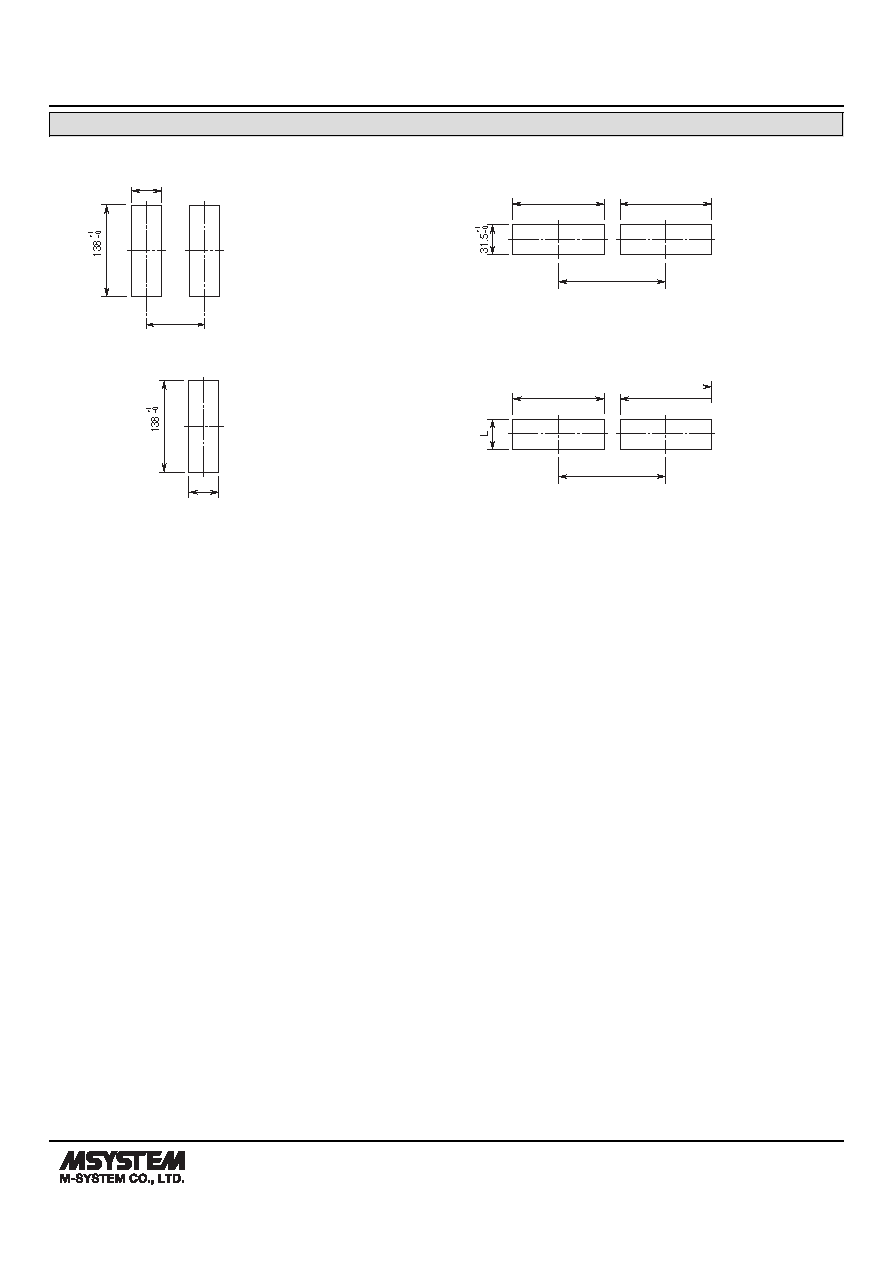

PANEL CUTOUT unit: mm

138

+1

–0

164 min.

Note 1: Observe at the minimum of 3 cm above and below the units for heat dissipation.

Note 2: No bezel is needed when the panel is cut according to the above drawings.

Panel thickness: 1.6 – 8.0 mm

Panel thickness: 1.6 – 8.0 mm

• Vertical Mounting

• Horizontal Mounting

■ SINGLE MOUNTING (Conform to degree of protection IP65)

138

+1

–0

L

138

+1

–0

164 min.

Panel thickness: 1.6 – 8.0 mm

L = {31.5 + 36 × (N – 1)}

(N : number of units)

Panel thickness: 1.6 – 8.0 mm

L = {31.5 + 36 × (N – 1)}

(N : number of units)

+1

–0

+1

–0

• Vertical Mounting

• Horizontal Mounting

■ CLUSTERED MOUNTING (Not conform to degree of protection IP65)

138

+1

–0

61.5 min.

31.5

+1

–0
