MODEL: R6S-PF1

R6S-PF1 SPECIFICATIONS

ES-7781-BF Rev.2 Page 2/3

https://www.m-system.co.jp/

CURRENT CONSUMPTION

The network module and I/O modules operate with 24V DC

power supply via the power supply module. The total

current consumption of the network module and I/O

modules is required to be not more than 1 A. If the total

current consumption exceeds 1 A, change the combination

of I/O modules or reduce the number of I/O modules.

R6xSV2 20mA

R6xSS2 20mA

R6xTS2 20mA

R6xTS2A 20mA

R6xRS2 20mA

R6xDS1 55mA

R6xYV2 25mA

R6xYS2 45mA

R6xDA4 10mA

R6xDC4A 20mA

R6xDC4B 20mA

R6NC1 110mA

R6NC3 110mA

R6ND1 40mA

R6NE1 75mA

R6NE2 75mA

R6NM1 50mA

R6NM2 50mA

R6NF1 100mA

R6NP1 100mA

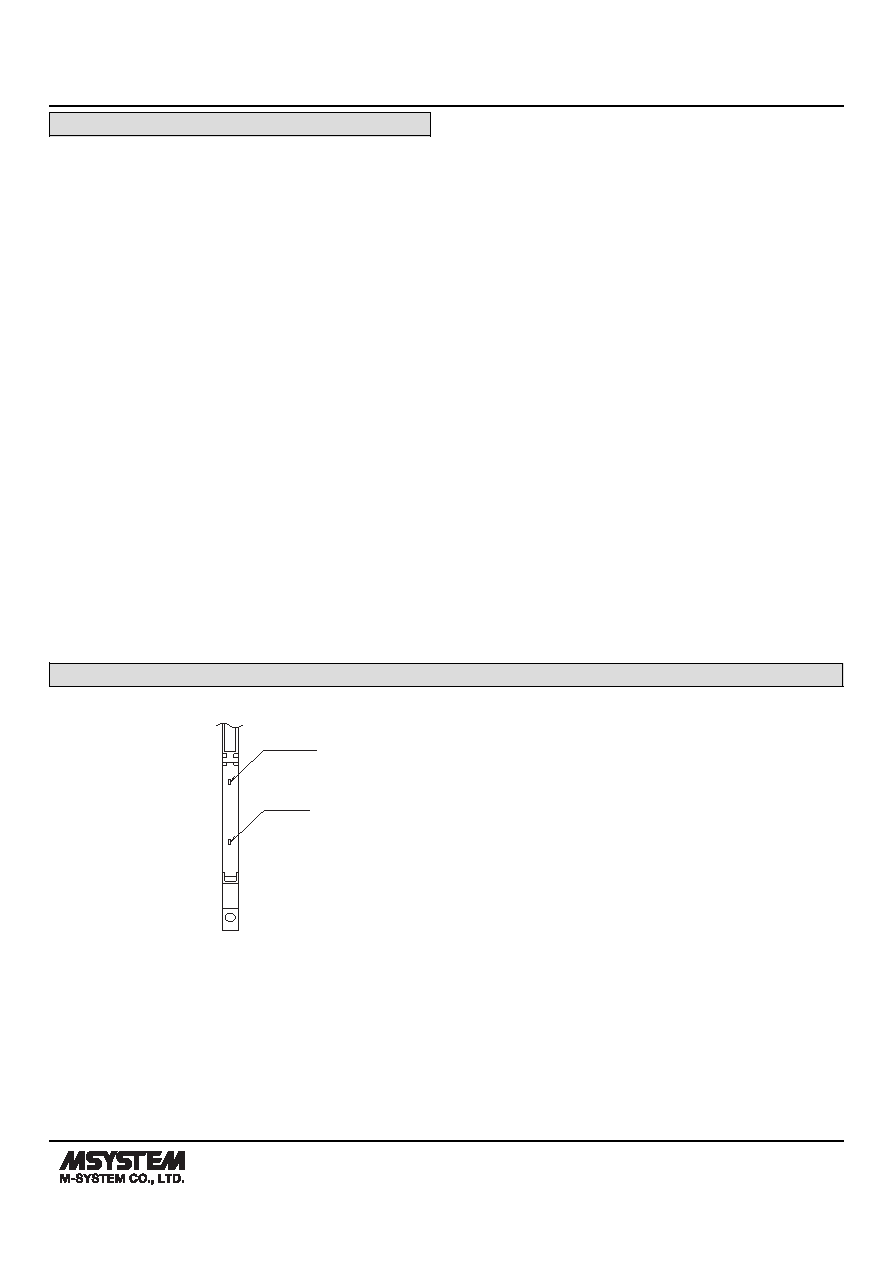

EXTERNAL VIEW

(With the cover open)

Power LED

RUN LED
