MODEL: R3-NE1

R3-NE1 SPECIFICATIONS

ES-8361 Rev.24 Page 7/8

https://www.m-system.co.jp/

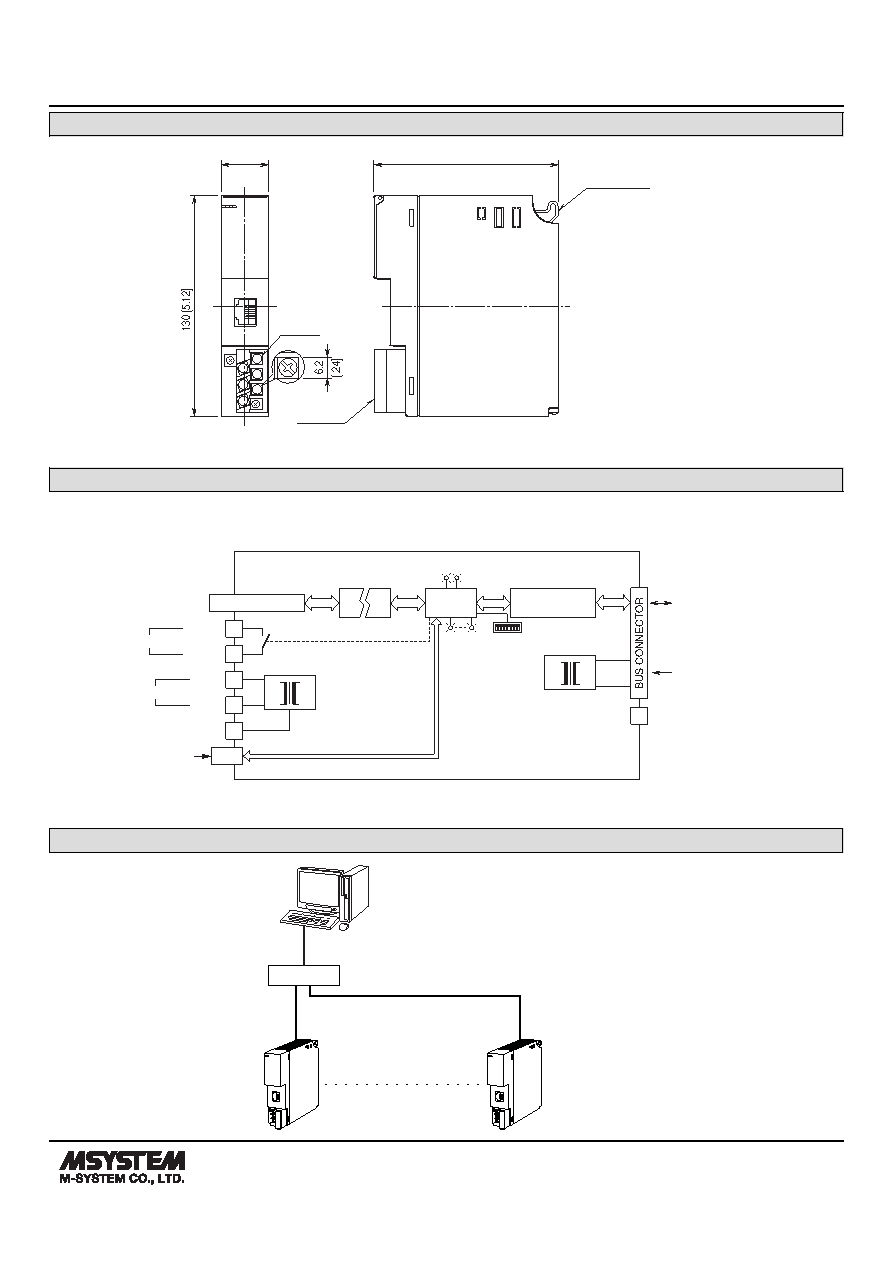

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

1

2

3

4

5

6

27.5 [1.08]

109 [4.29]

POSITIONING

GUIDE

TERMINAL

COVER

6–M3

SCREW

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Note: In order to improve EMC performance, bond the FG terminal to ground.

Caution: FG terminal is NOT a protective conductor terminal.

INTERNAL POWER

INTERNAL BUS

DIP SW

ETHERNET

LED

LED

Modbus/TCP

CONFIGURATION JACK

Isolation

Control

Circuit

Communication

Circuit

JACK

RJ-45 MODULAR JACK

*Not provided with ‘No Power Supply’ type module.

1

4

RUN

+

RUN

–

RUN CONTACT OUTPUT

2

3

6

U (+)

V (–)

FG

POWER INPUT

*

*

*

5

SYSTEM CONFIGURATION EXAMPLES

Ethernet Interface Module

(model: R3-NE1)

STP Cable

Switch / Hub

STP Cable

(10BASE-T, 100BASE-TX)

Ethernet Interface Module

(model: R3-NE1)
