Package information

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages,

depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product

status are available at: www.st.com. ECOPACK is an ST trademark.

2.1

SMB Flat package information

•

Epoxy meets UL94, V0

•

Lead-free package

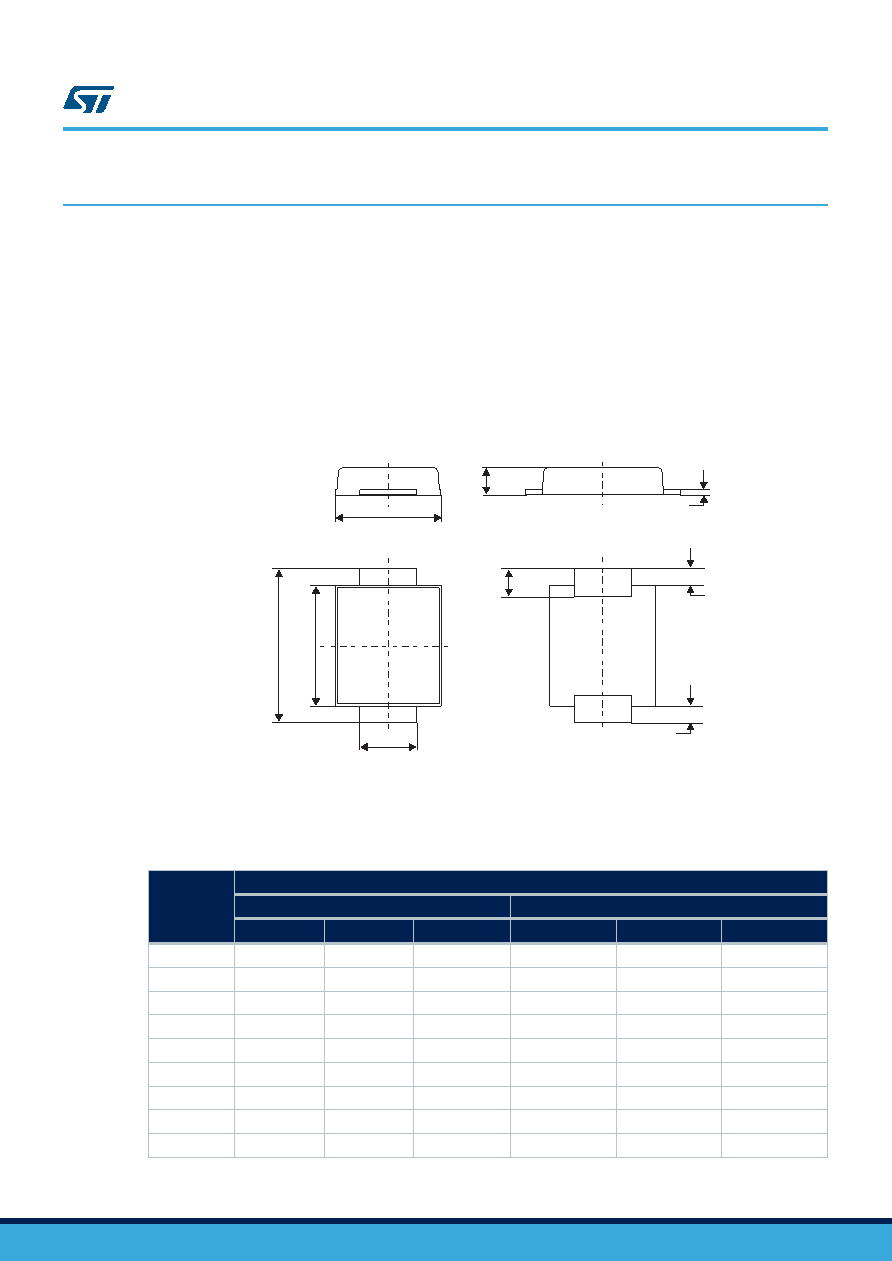

Figure 12. SMB Flat package outline

L 2x

L2 2 x

L1 2 x

Table 4. SMB Flat mechanical data

Ref.

Dimensions

Millimeters

Inches

Min.

Typ.

Max.

Min.

Typ.

Max.

0.90

1.10

0.035

0.044

1.95

2.20

0.076

0.087

0.15

0.40

0.005

0.016

3.30

3.95

0.129

0.156

5.10

5.60

0.200

0.221

4.05

4.60

0.159

0.182

0.75

1.50

0.029

0.060

0.40

0.016

0.60

0.024

STPS3170

Package information

DS10645 - Rev 2

page 5/13
