ADP172ACBZ-2.2-R7 データシート(PDF) 7 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADP172ACBZ-2.2-R7 データシート(HTML) 7 Page - Analog Devices |
|

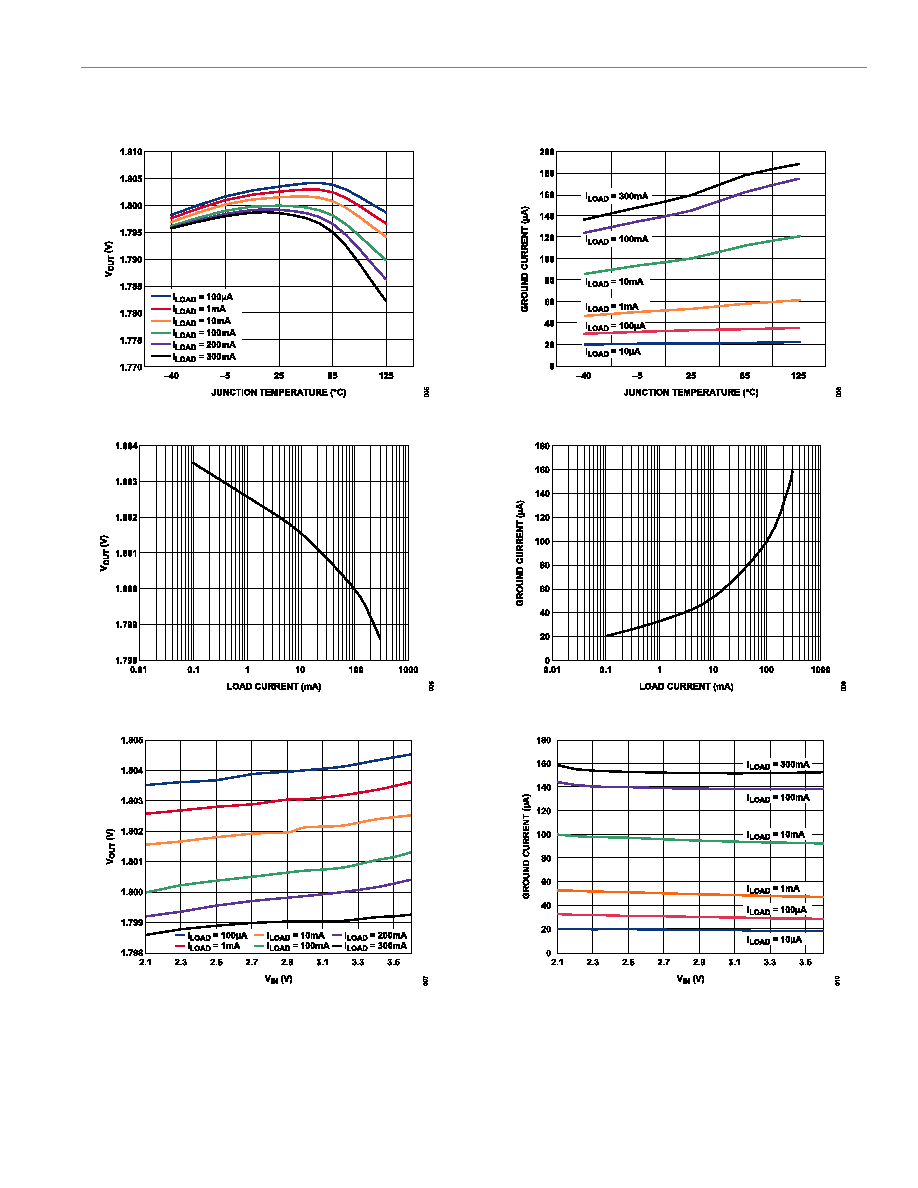

7 / 17 page ![]() Data Sheet ADP172 TYPICAL PERFORMANCE CHARACTERISTICS analog.com Rev. F | 7 of 17 VIN = 3.6 V, VOUT = 1.8 V, IOUT = 10 mA, CIN = COUT = 1 µF, TA = 25°C, unless otherwise noted. Figure 3. Output Voltage vs. Junction Temperature Figure 4. Output Voltage vs. Load Current Figure 5. Output Voltage vs. Input Voltage Figure 6. Ground Current vs. Junction Temperature Figure 7. Ground Current vs. Load Current Figure 8. Ground Current vs. Input Voltage |
|
|
