Microcomputer Peripheral LSIs

MN1380 Series

Embossed Taping Specifications for Mini Type Package (MN1382/MN13821/MN13822)

There is a choice of two orientations, TW and TX, for the product relative to the tape.

Figure 15. TW Orientation

Figure 16. TX Orientation

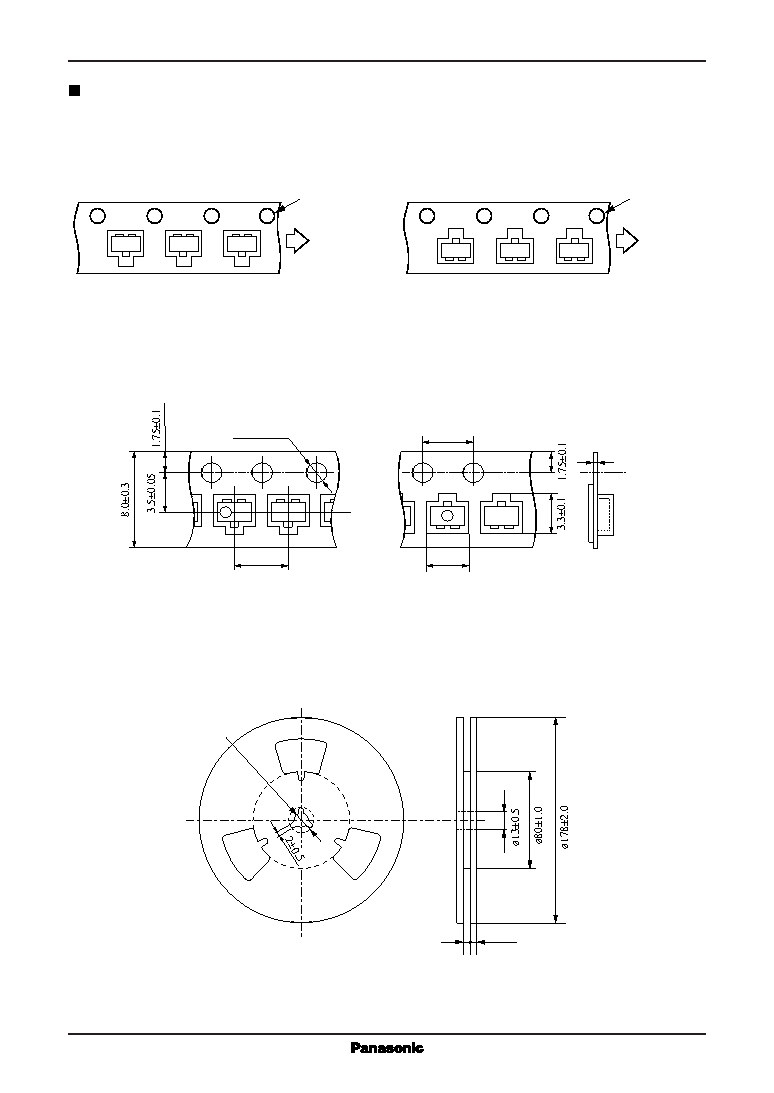

Figure 17. Embossed Taping Dimensions for Mini Type Package

Figure 18. Embossed Taping Reel Dimensions for Mini Type Package

Unit: mm

Unit: mm

3,000 packages per reel

Product orientation A is labeled TW; orientation B, TX.

A

B

ø1.5

+0.1

-0

4.0±0.1

3.2±0.1

4.0±0.1

t+0.3±0.1

ø21±0.8

10±1.5

2±0.5

TW

Tape feed hole

Drawing

direction

(Marking surface on top)

TX

Tape feed hole

Drawing

direction

(Marking surface on top)
