Data Sheet
ADL8106
APPLICATIONS INFORMATION
analog.com
Rev. 0 | 25 of 26

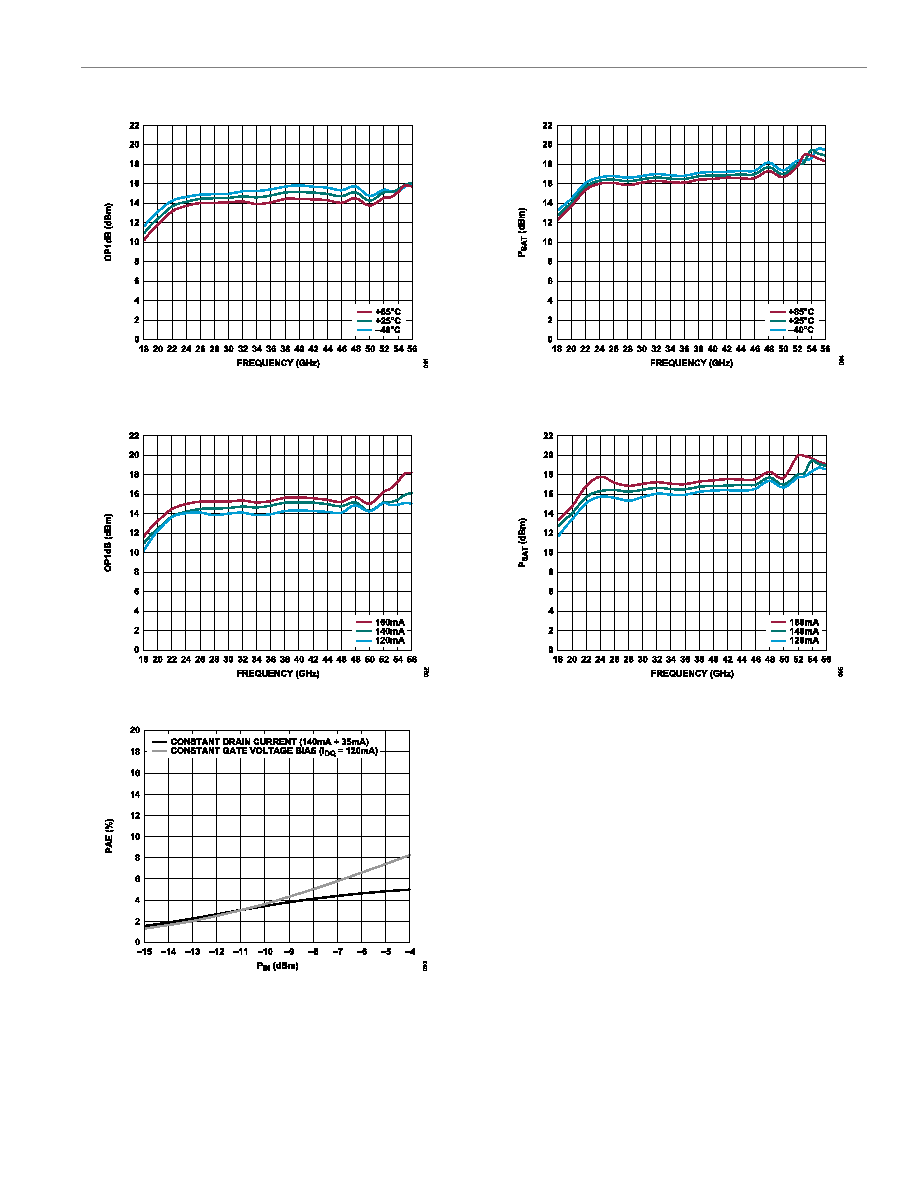

Figure 91. OP1dB vs. Frequency for Various Temperatures, Data Measured
with Constant Drain Current of 140 mA
Figure 92. OP1dB vs. Frequency for Various Constant Drain Currents
Figure 93. PAE vs. PIN, VDD = 3 V, Frequency = 36 GHz, Constant Drain
Current Bias (140 mA + 35 mA) and Constant Gate Voltage Bias (IDQ= 120
mA)
Figure 94. PSAT vs. Frequency for Various Temperatures, Data Measured with
IDD = 140 mA
Figure 95. PSAT vs. Frequency for Various Constant Drain Currents
