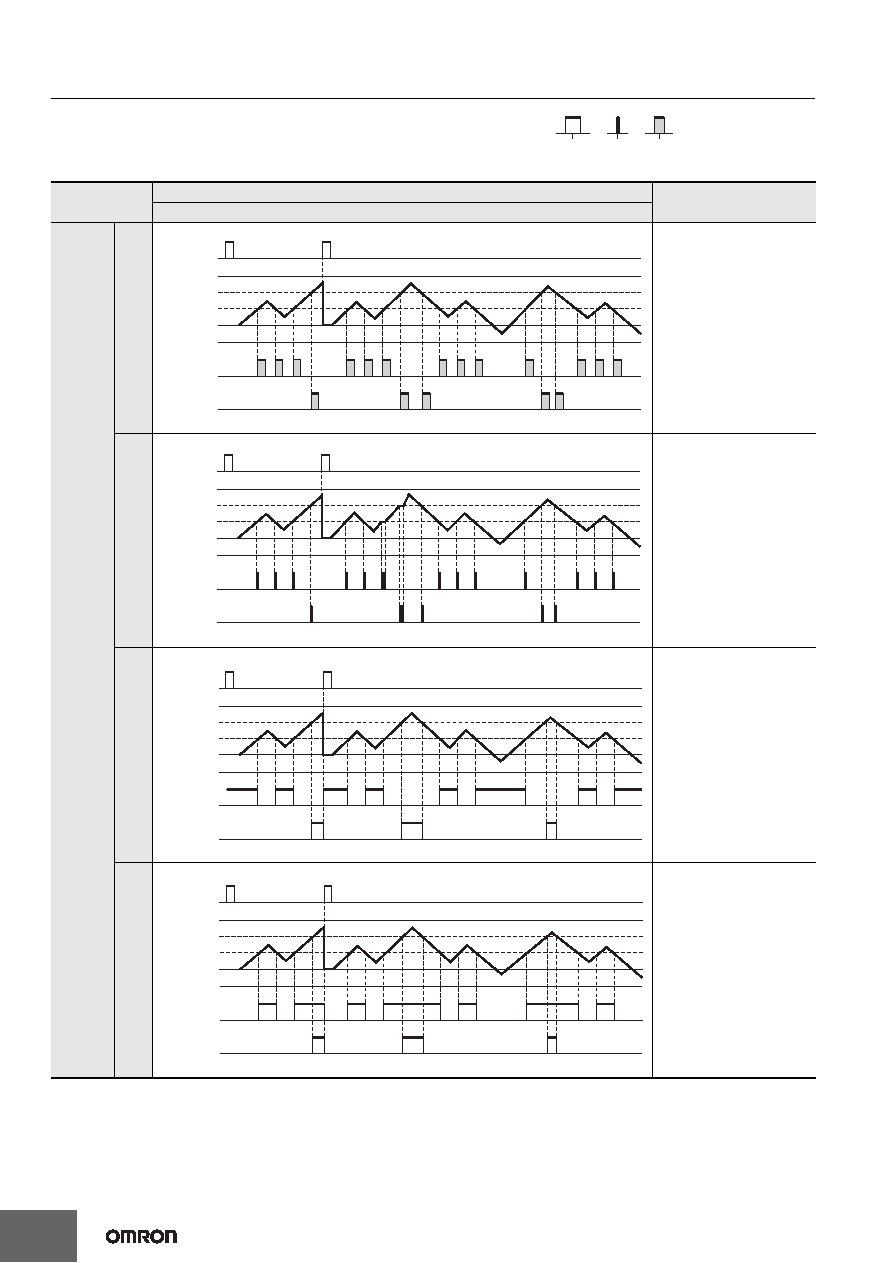

H7CC-A

Counter

Note: 1. Counting cannot be performed during reset/reset 1 input.

2. If reset/reset 1 is input while one-shot output is ON, one-shot output turns OFF.

3. If there is power interruption while output is ON, output will turn ON again when the power supply has recovered, if memory backup is

enabled.

For one-shot output, output will turn ON again for the duration of the output time setting once the power supply has recovered.

4. Do not use the counter function in applications where the count may be completed (again) while one-shot output is ON.

5. The set value is from

−99999 to 999999.

One-shot

output

Self-holding

output

Instantaneous

(equals) output

(The one-shot output time can be

set in the range 0.01 to 99.99s.)

Input mode

Operation after count

completion

UP/DOWN A, B, C

Output

mode

setting

K-2

The display continues to

increase/decrease until the

overflow or underflow value is

reached.

One-shot output only.

The display continues to

increase/decrease until the

overflow or underflow value is

reached.

The outputs are ON while the

count is equal.

The display continues to

increase/decrease until the

overflow or underflow value is

reached.

OUT1 is held while the

present value is less than or

equal to set value 1.

OUT2 is held while the

present value is greater than

or equal to set value 2.

The display continues to

increase/decrease until the

overflow or underflow value is

reached.

OUT1 is held while the

present value is greater than

or equal to set value 1.

OUT2 is held while the

present value is greater than

or equal to set value 2.

* H mode is available only

when using a model as a 2-

stage counter.

−99999

Reset/

reset 1

OUT1

OUT2

999999

Set value 2

Set value 1

−99999

Reset/

reset 1

OUT1

OUT2

999999

Set value 2

Set value 1

−99999

Reset/

reset 1

OUT1

OUT2

999999

Set value 2

Set value 1

−99999

Reset/

reset 1

OUT1

OUT2

999999

Set value 2

Set value 1
