Connect to a host computer using the standard USB 1.1

or 2.0 plug-in connector on the ECONseries module. The

USB connector provides power to the module, eliminating

the need for an external power supply, while providing

complete enumeration for all data flow.

Connect sensors directly to the screw terminal of the

module. Screw terminals can accept AWG 26 to AWG 16 size

wire.

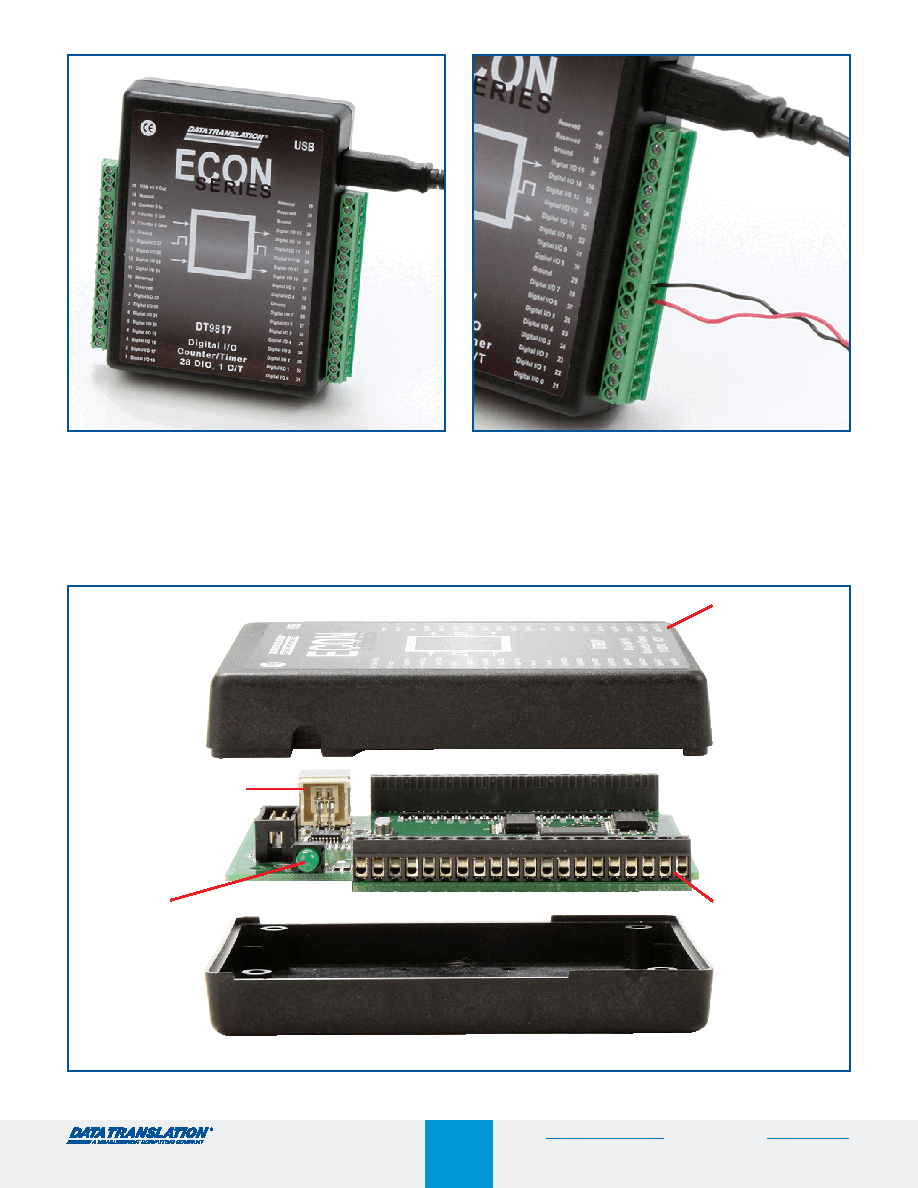

Easy to Connect

Standard USB Connector

LED indicator

provides USB

status

Shielded, rugged

enclosure provides

noise immunity

Built-in signal I/O

screw terminal

connectors

All ECONseries modules provide easy signal and USB connections in a shielded, rugged enclosure.
