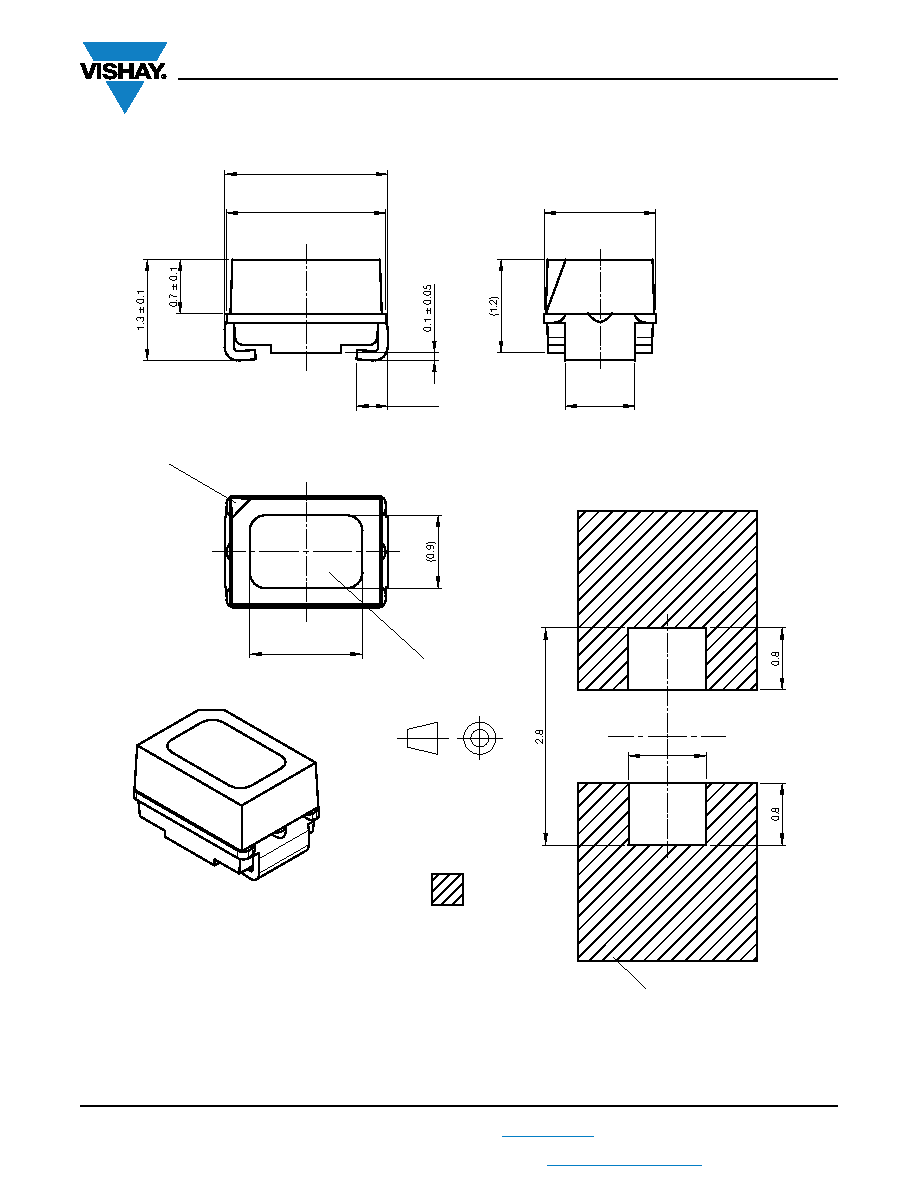

PACKAGE DIMENSIONS in millimeters

Drawing-No.: 6.541-5069.01-4

Issue: 2; 24.11.14

2.2 ± 0.1

2.05 ± 0.1

0.4 ± 0.1

0.9 ± 0.1

1.4 ± 0.1

Cathode mark

Not indicated tolerances ± 0.2

(1.5)

Area not flat

technical drawings

according to DIN

specifications

Solder resist

Cu.area > 5 mm2

1

Proposed pad layout

(for reference only)
