SC000532-6-R4 datasheet(1/1 Pages) ASS

部品番号	SC000532-6-R4

部品情報	4MM FEMALE SOCKET, 6-8AWG MACHINED RADSOCK® R8S CONTACT

PDF	1 Pages

Scroll/Zoom	100%

メーカー	ASS [Amphenol Sine Systems Corp.]

ホームページ	https://www.amphenol-sine.com/

Logo

1 / 1 page

REV

DESCRIPTION

DATE

REVISIONS

ECO

APPR

BY

RELEASED DRAWING

SEP-21-20

BLINK

A1

-

MATERIALS LIST

SIZE

PROCESS SPECIFICATIONS:

MATERIAL SPECIFICATIONS:

UNLESS OTHERWISE SPECIFIED

3 PL DEC ±0.08

1) All dimensions are in metric(mm).

2) Tolerances are as follows:

1 PL DEC ±0.30

2 PL DEC ±0.15

QUANTITY

SIGNATURES

Fractions ±1/64

Angles ±1°

APPROVAL:

ENGINEER:

CHECKED:

DRAWN:

SCALE:

DATE

PART NUMBER

REVISION

DWG NO:

C-

TYPE

SHEET

OF

ITEM

DESCRIPTION

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

MANUFACTURING VARIATIONS.

CUSTOMER:

NEXT ASS'Y:

Amphenol

Clinton Township, MI 48036

X

3) Note reference =

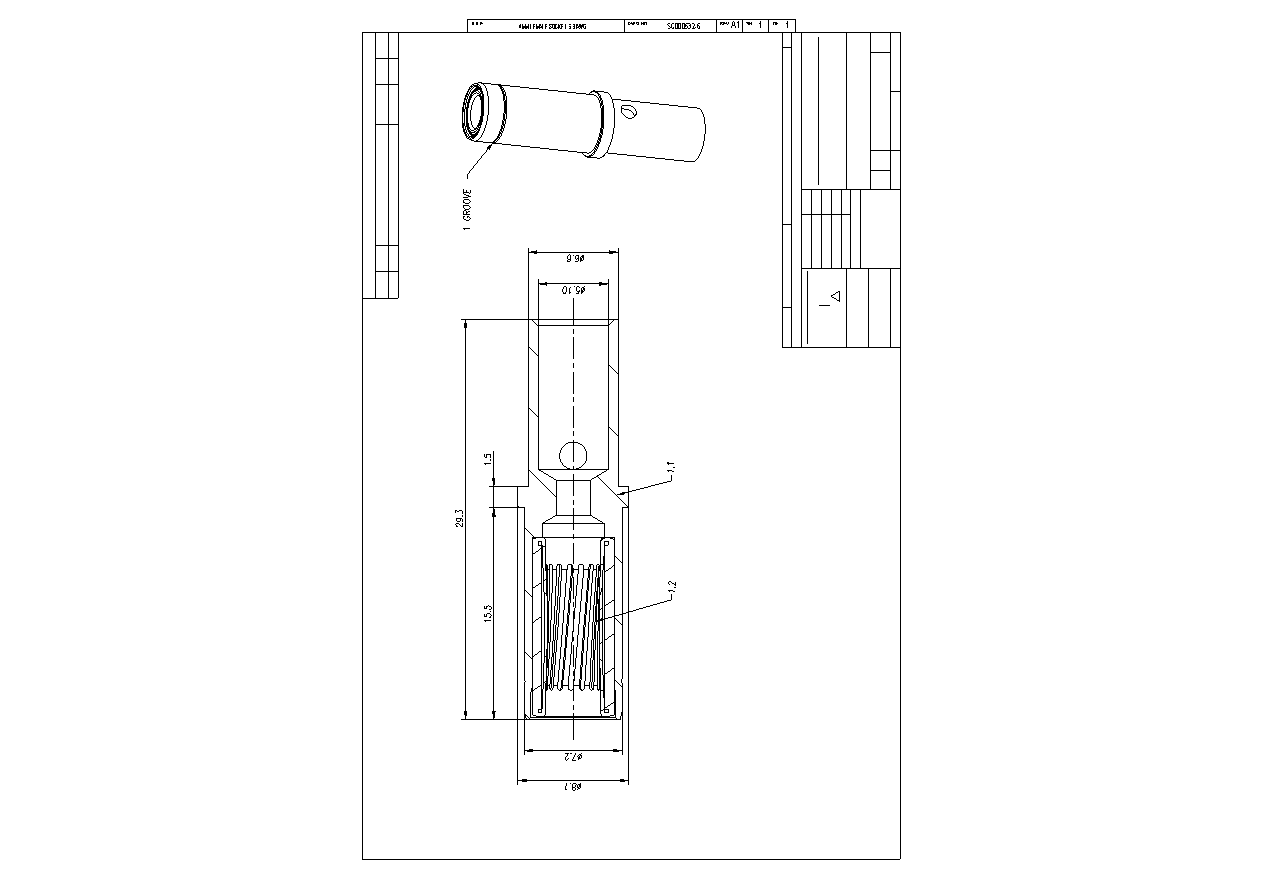

4MM FEMALE SOCKET, 6-8AWG

MACHINED RADSOCK® R8S CONTACT

B

SC000532-6-R4

A1

1

BLINK

SEP-21-20

ORION

SEP-23-20

TOMMY

SEP-25-20

NONE

TOMMY

NOTES：（UNLESS OTHERWISE SPECIFIED）

1 . MATERIAL：

1 .1 CONTACT BODY：COPPER ALLOY, SILVER PLATED.

1 .2 RADSOK：COPPER ALLOY, SILVER PLATED.

2. SPECIFICATIONS：

2.1 CURRENT RATING：70A(MAX).

2.2 TERMINATION TYPE：CRIMPING.

2.3 WIRE RANGE：6-8AWG .

3. RoHS COMPLIANT.

4.

ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
