12. Package Outline Drawings

The package outline drawings and land pattern are located at the end of this document. The package information is the most current data

available and is subject to change without notice or revision of this document.

13. Special Notes: NDG 48-VFQFN Package Assembly

Unopened dry packaged parts have a one-year shelf life.

The HIC indicator card for newly-opened dry packaged parts should be checked. If there is any moisture content, the parts must be baked for

a minimum of 8 hours at 125˚C within 24 hours prior to the assembly reflow process.

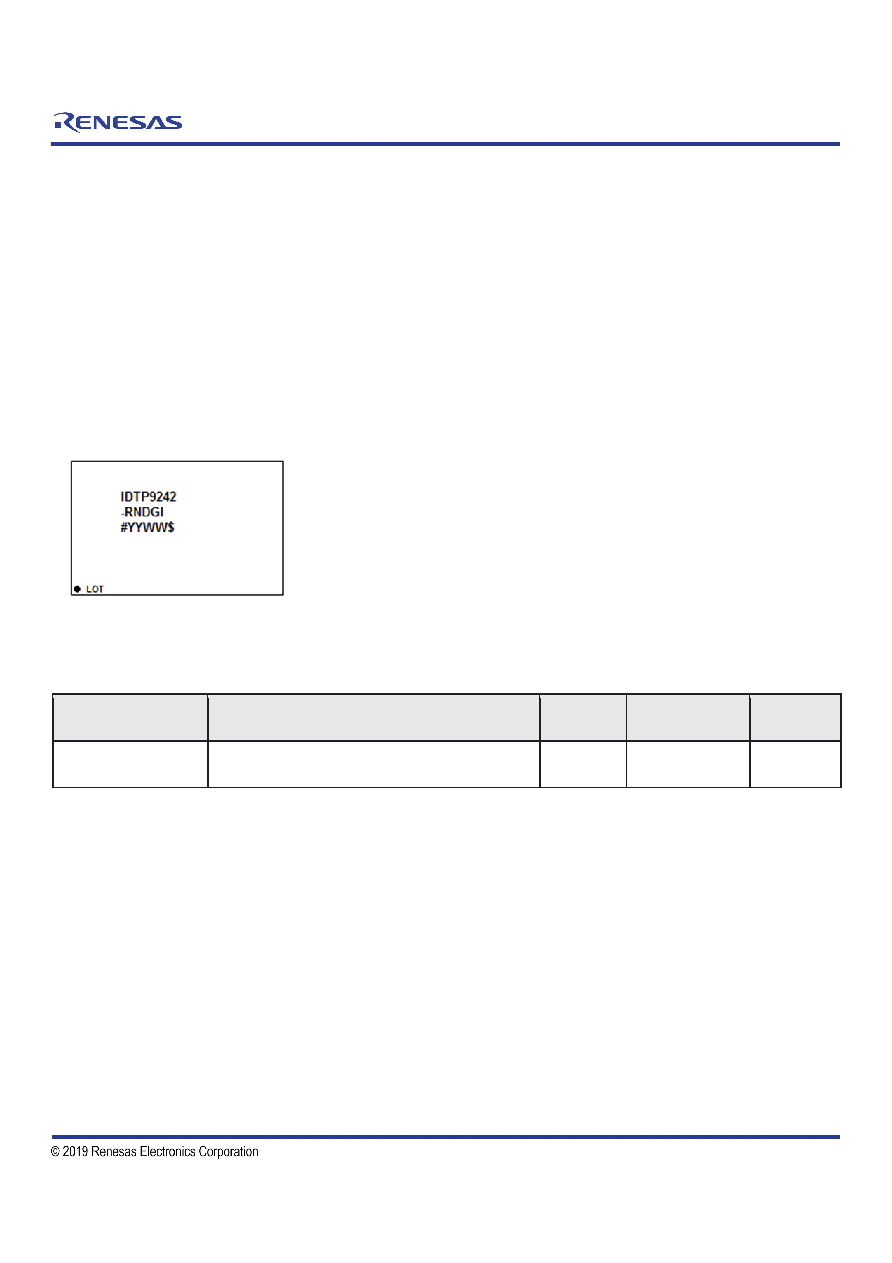

14. Marking Diagram

1. Line 1: Company name and part number.

2. Line 2: -R is part of the part number, which is followed by the package code.

3. Line 3: “YYWW” is the last two digits of the year and two digits for the week that

the part was assembled. # is the device step.“$” denotes the mark code.

15. Ordering Information

Orderable Part Number

Description and Package

MSL Rating

Shipping Package

Ambient

Temperature

P9242-RNDGI8

P9242-R Wireless Power Receiver for 15W Applications,

48-VFQFN (6 x 6 mm) package (NDG48P2)

MSL3

Reel

0°C to +85°C
