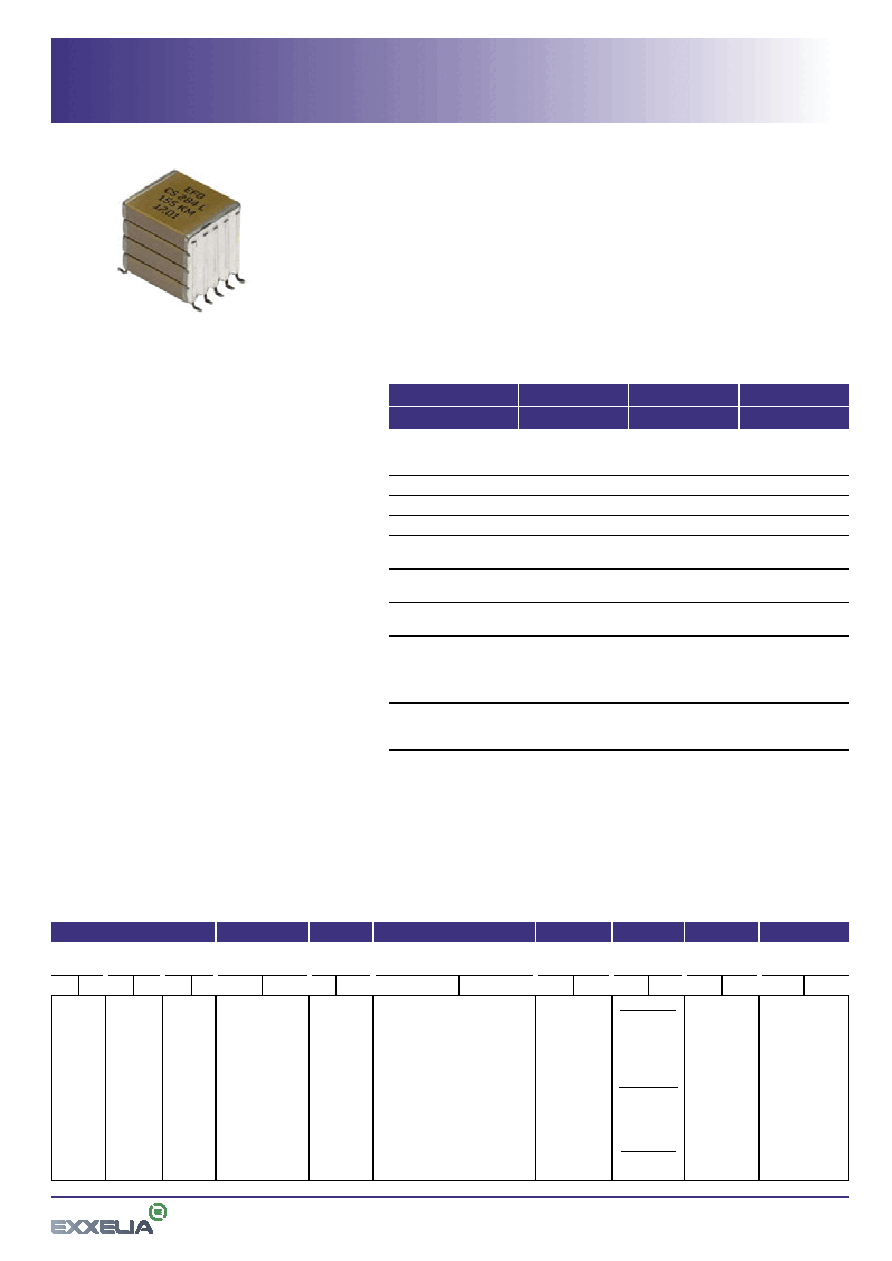

CERAMIC CAPACITORS

70

www.exxelia.com

Taping : dimensions

Page revised 02/21

ELECTRICAL SPECIFICATIONS

DIELECTRIC

NPO

C4XX

X7R

Dielectriccode

1

4

2

Maximum ∆C/°C

over temperature range without

voltage

NA

±15%

Temperature coefﬁcient

(0±30) ppm/°C

(–2,200±500) ppm/°C

NA

Aging

None

≤ 2.5% per decade hour

Operating temperature

–55°C to +125°C

Rated voltage (URC)

1,000 VDC to

10,000 VDC

1,000 VDC to

5,000 VDC

1,000 VDC to

10,000 VDC

Dielectric

withstanding voltage

1.3 URC

1.2 URC

Capacitance

at 1MHz for C ≤ 1,000pf

at 1kHz for C > 1,000pf

at 1kHz

Dissipation factor

≤ 0.15% at 1MHz

for C ≤ 1,000pf

≤ 0.10% at 1kHz

≤ 2.5% at 1kHz

≤ 0.15% at 1kHz

for C > 1,000pf

Insulation resistance at 25°C

under URC for URC ≤ 500 V

under 500 VDC for URC > 500 V

≥ 100,000 MΩ for C ≤ 10nf

≥ 1,000 MΩ.

µF for C > 10nf

≥ 20,000 MΩ for C ≤ 25nf

≥ 500 MΩ.

µF for C > 25nf

FEATURES

• Multilayer chip ceramic capacitors stacked

• NPO, C4xx and X7R dielectrics

• Capacitance range: 220pf to 15

µF

• Voltage range: 1,000 VDC to 10,000 VDC

PHYSICAL CHARACTERISTICS

CONSTRUCTION

• P, PL, L models: DIL leaded uncoated stacked chip

capacitors for surface mounting recommended to elimi-

nate thermomechanical stresses.

• N, NU models: DIL leaded stacked chip capacitors for

through-hole circuits (N: varnished chips, NU: uncoated

chips).

• R, RU models: Ribbon leaded stacked chip capacitors for

surface mounting (R: varnished chips, RU: uncoated

chips) recommended to eliminate thermomechanical

stresses.

RECOMMENDED FOOTPRINT

See general information on high voltage capacitors (see

page 50).

MARKING

Series, capacitance value, tolerance, rated voltage, date

code.

HOW TO ORDER

CS

2

84

P

W

F

120nF

20%

2,000 V

-

Series

Dielectric

code

Exxelia

size code

Leads style

RoHS

compliant

Quality level

Capacitance

Tolerance

Rated voltage

Reliability level

CS = High

voltage

stacked

capacitor

1 = NPO

2 = X7R

4 = C4xx

80

81

82

83

84

89

85

87

88

P

PL

L

R

RU

N

NU

- = No RoHS

W = RoHS

compliant

- = standard quality level

F = Hi-Rel quality:

screening

in accordance with

Exxelia speciﬁcation

Capacitance

value in clear

NPO dielectric:

±1%

±2%

±5%

±10%

±20%

C4xx dielectric:

±2%

±5%

±10%

±20%

X7R dielectric:

±10%

±20%

1,000 V

1,500 V

2,000 V

3,000 V

4,000 V

5,000 V

7,500 V

10,000 V

Intermediary,

lower and

higher voltages

available: con-

tact your sales

representative.

For F parts only.

Acc. to Exxelia spec.

-

T5

T6

See page 15

CS Series

High Voltage Stacked Capacitors
