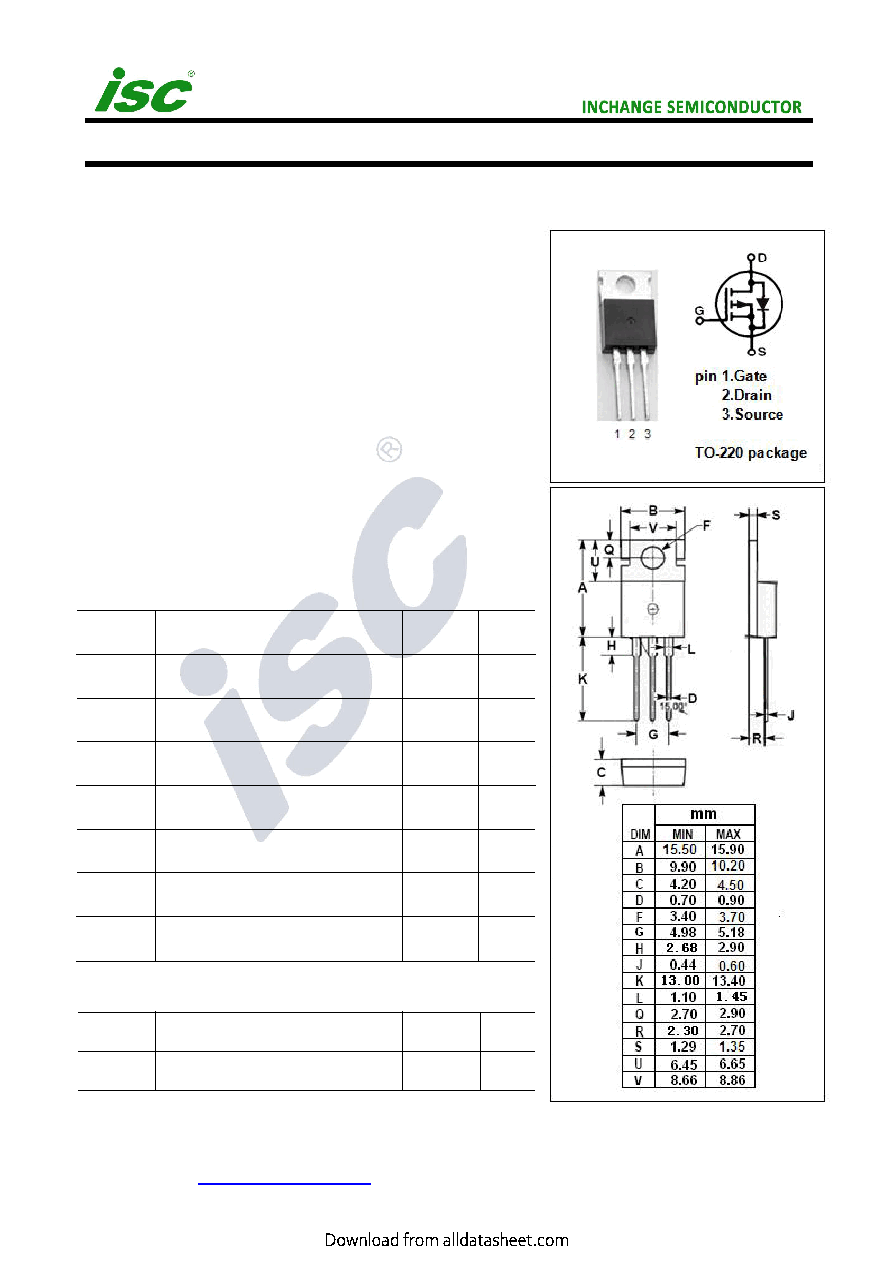

isc P-Channel MOSFET Transistor
FDP4020P
FEATURES
·
Drain Current –ID= -16A@ TC=25℃
·
Drain Source Voltage-
: VDSS= -20V(Min)
·
Static Drain-Source On-Resistance
: RDS(on) =0.08Ω(Max)@VGS= 10V
·
100% avalanche tested
·
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
DESCRIPTION
·
motor drive, DC-DC converter, power switch
and solenoid drive.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
VALUE
UNIT
VDSS
Drain-Source Voltage
-20
V
VGS
Gate-Source Voltage-Continuous
±
8
V
ID
Drain Current-Continuous
-16
A
IDM
Drain Current-Single Pluse
-48
A
PD
Total Dissipation @TC=25℃
37.5
W
TJ
Max. Operating Junction Temperature
175
℃
Tstg
Storage Temperature
-65~175
℃
SYMBOL
PARAMETER
MAX
UNIT
Rth j-c
Thermal Resistance, Junction to Case
4.0
℃
/W
