Data Sheet

ADCA3280

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 7 of 18

S-PARAMETERS

Using the downstream schematic and bill of materials (BOM) per the Recommended Applications Circuit and BOM section. VDD = 21 V, IDD =

540 mA, TPADDLE = 35°C, and ZS = ZL = 75 Ω, unless otherwise noted.

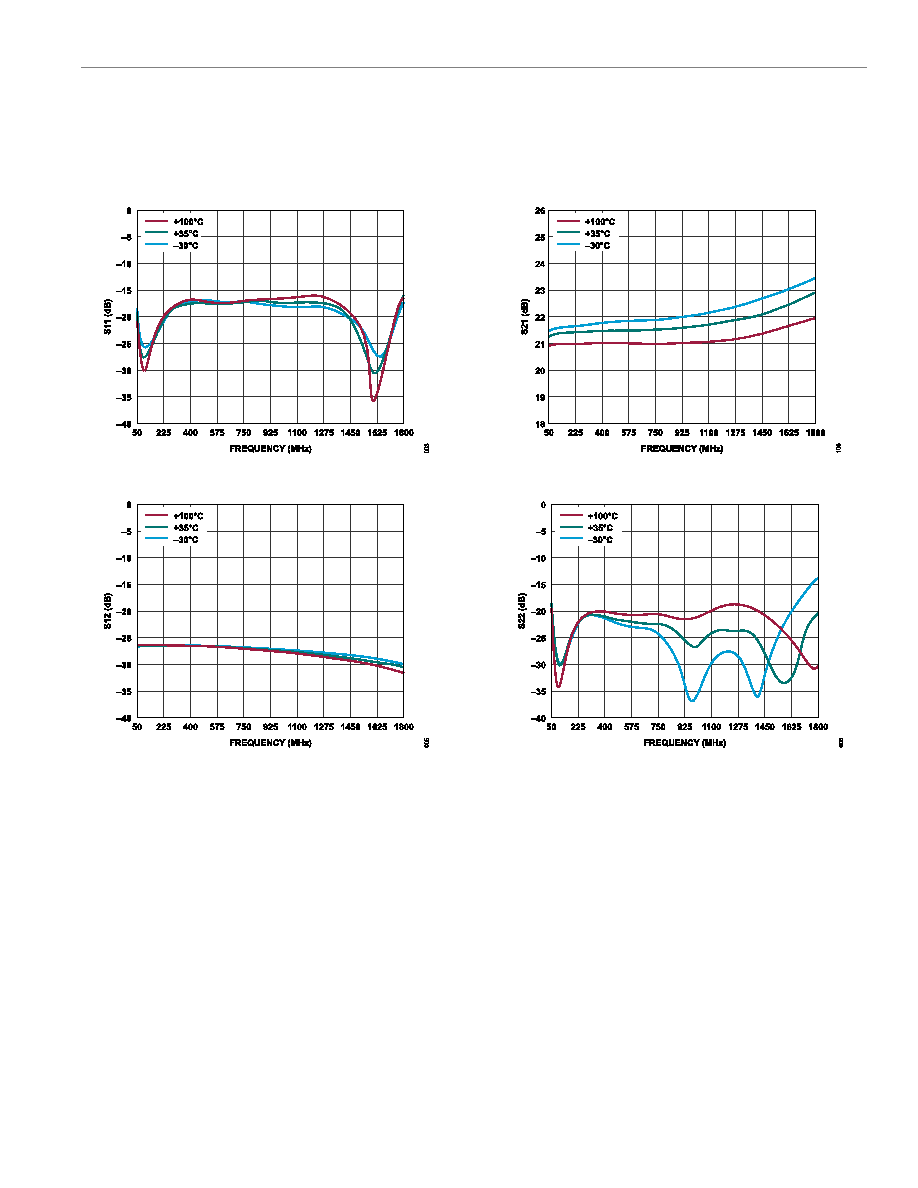

Figure 3. S11 vs. Frequency Over Temperature

Figure 4. S12 vs. Frequency Over Temperature

Figure 5. S21 vs. Frequency Over Temperature

Figure 6. S22 vs. Frequency Over Temperature
