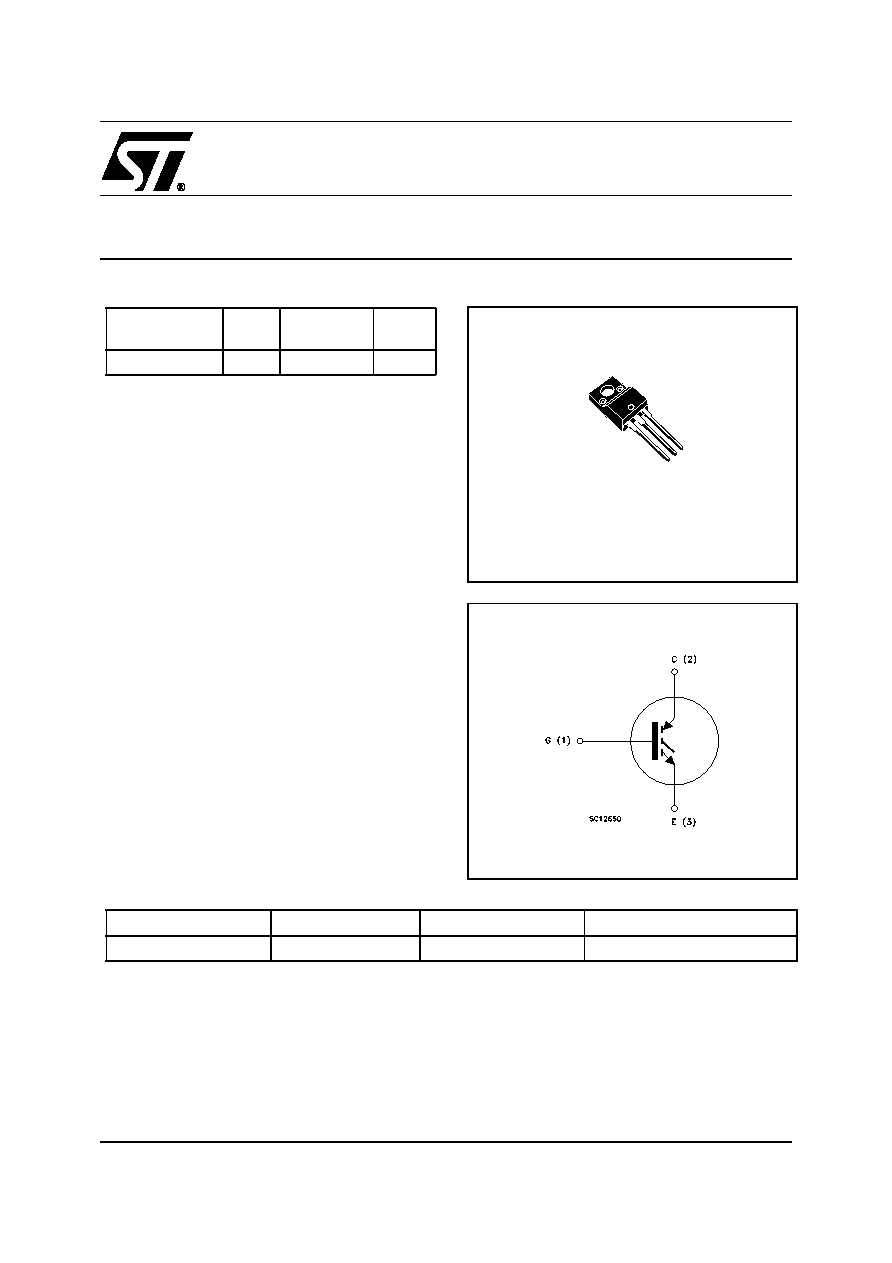

1/11

August 2005

STGF20NB60S

N-CHANNEL 13A - 600V TO-220FP

PowerMESH™ IGBT

Table 1: General Features

LOW ON-VOLTAGE DROP (Vcesat)

HIGHT CURRENT CAPABILITY

OFF LOSSES INCLUDE TAIL CURRENT

HIGH INPUT IMPEDANCE (VOLTAGE

DRIVEN)

DESCRIPTION

Using the latest high voltage technology based on

a patented strip layout, STMicroelectronics has

designed an advanced family of IGBTs, the Pow-

erMESH™ IGBTs, with outstanding performances.

The suffix “S” identifies a family optimized to

achieve minimum on-voltage drop for low frequen-

cy to applications (<1kHz).

APPLICATIONS

LIGHT DIMMER

STATIC RELAYS

MOTOR CONTROL

Table 2: Order Code

Figure 1: Package

Figure 2: Internal Schematic Diagram

TYPE

VCES

VCE(sat) (Max)

@25°C

IC

@100°C

STGF20NB60S

600 V

< 1.7 V

13 A

1

2

3

TO-220FP

PART NUMBER

MARKING

PACKAGE

PACKAGING

STGF20NB60S

GF20NB60S

TO-220FP

TUBE

Rev. 3
