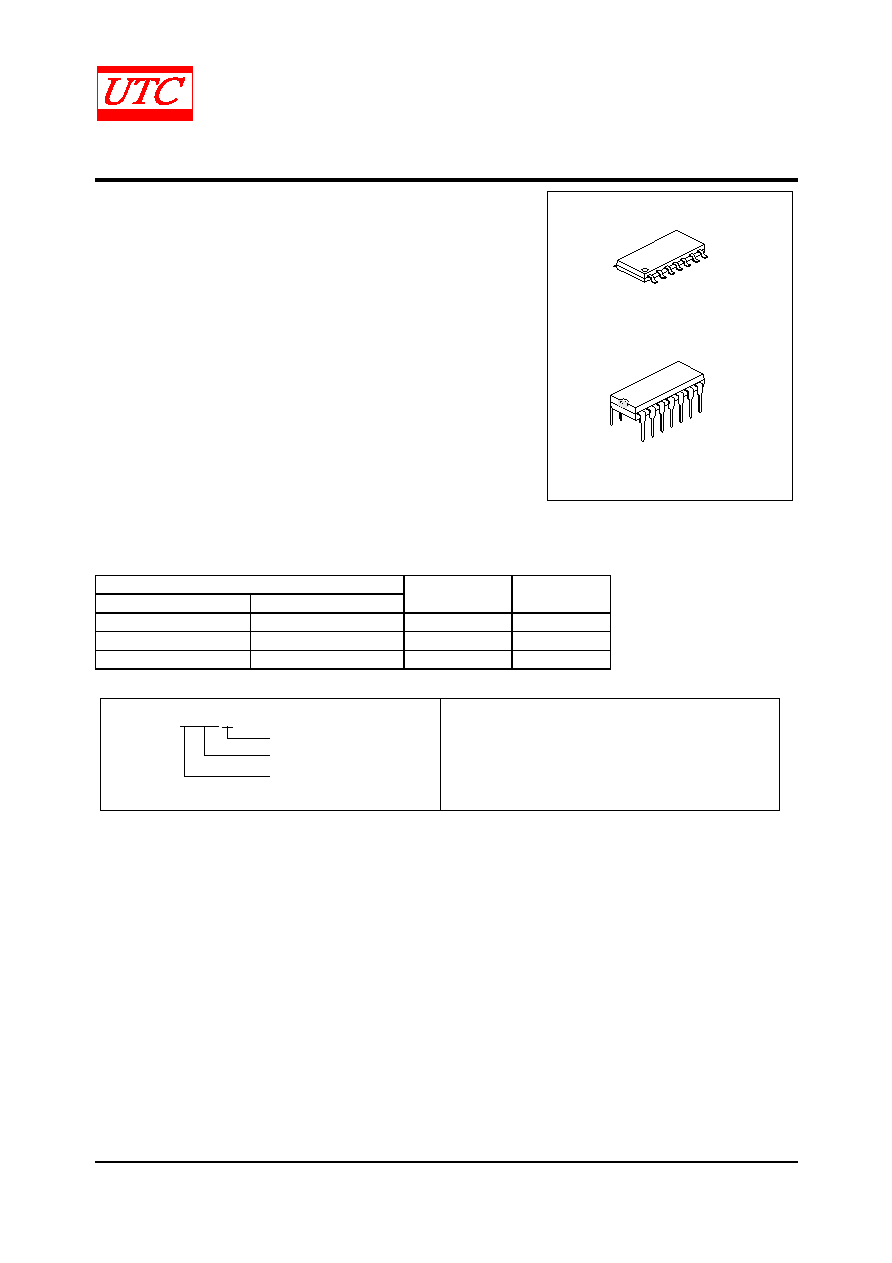

UNISONIC TECHNOLOGIES CO., LTD

CD4069

CMOS IC

www.unisonic.com.tw

1 of 7

QW-R502-020,B

INVERTER CIRCUIT

DESCRIPTION

The UTC CD4069 is a CMOS IC with six inverter circuits and

designed for using of wide power supply operating range, low power

consumption, high noise immunity, and symmetric controlled rise

and fall times. The IC is capable of ESD protection by diode clamps

to VDD and VSS.

FEATURES

* Wide supply voltage range: 3.0V ~ 15V.

* High noise immunity: 0.45 VDD typ.

* Low Power TTL compatibility: Fan out of 2 driving 74L

or 1 driving 74LS.

DIP-14

SOP-14

*Pb-free plating product number: CD4069L

ORDERING INFORMATION

Order Number

Normal

Lead Free Plating

Package

Packing

CD4069-D14-T

CD4069L-D14-T

DIP-14

Tube

CD4069-S14-R

CD4069L-S14-R

SOP-14

Tape Reel

CD4069-S14-T

CD4069L-S14-T

SOP-14

Tube

CD4069L-D14-T

(1)Packing Type

(2)Package Type

(3)Lead Plating

(1) R: Tape Reel, T: Tube

(2) D14: DIP-14, S14: SOP-14

(3) L: Lead Free Plating, Blank: Pb/Sn
