OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MS-001-BA

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

SEATING

PLANE

0.015

(0.38)

MIN

0.210

(5.33)

MAX

PIN 1

0.150 (3.81)

0.130 (3.30)

0.115 (2.92)

0.070 (1.78)

0.060 (1.52)

0.045 (1.14)

0.280 (7.11)

0.250 (6.35)

0.240 (6.10)

0.100 (2.54)

BSC

0.400 (10.16)

0.365 (9.27)

0.355 (9.02)

0.060 (1.52)

MAX

0.430 (10.92)

MAX

0.014 (0.36)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.195 (4.95)

0.130 (3.30)

0.115 (2.92)

0.015 (0.38)

GAUGE

PLANE

0.005 (0.13)

MIN

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HALF LEADS.

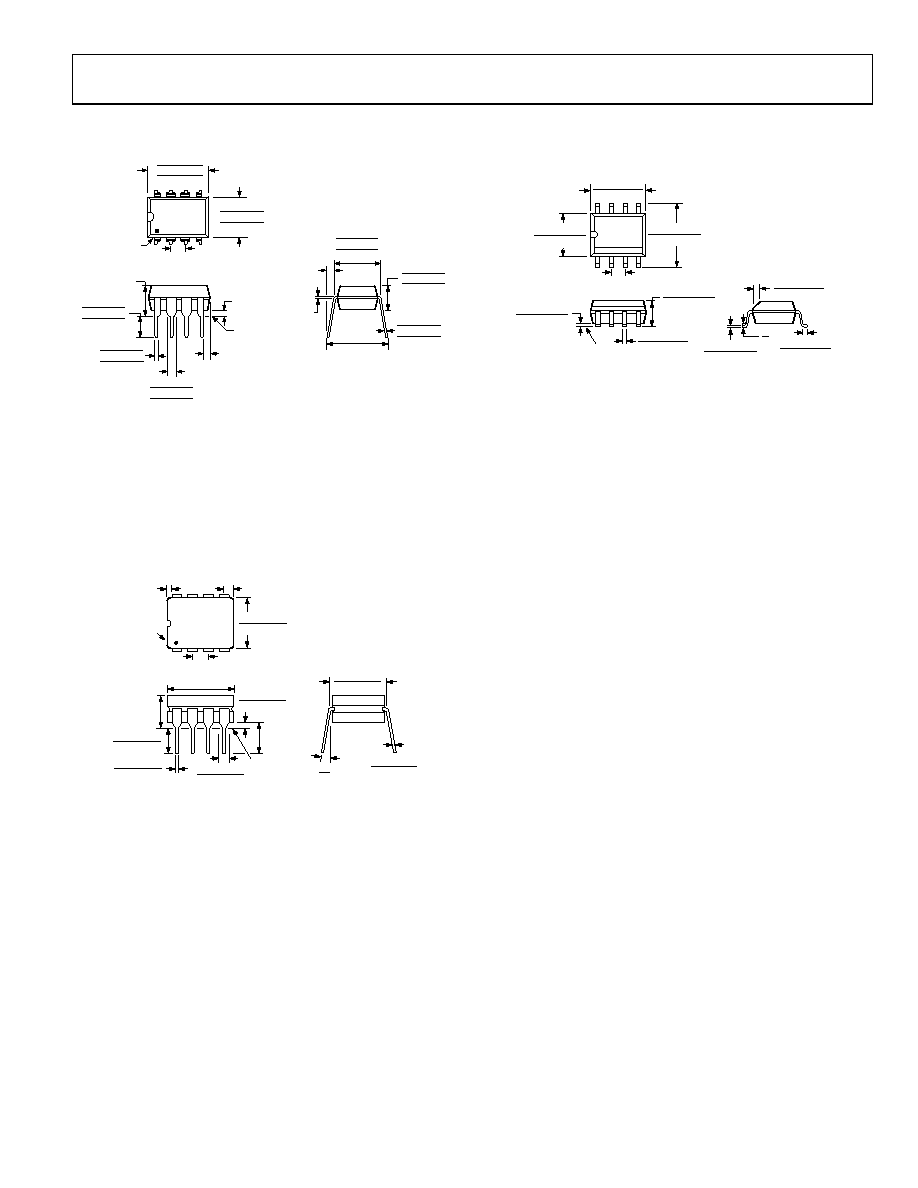

Figure 50. 8-Lead Plastic Dual In-Line Package [PDIP]

Narrow Body (N-8).

Dimensions shown in inches and (millimeters)

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

0.310 (7.87)

0.220 (5.59)

PIN 1

0.005 (0.13)

MIN

0.055 (1.40)

MAX

0.100 (2.54) BSC

15°

0°

0.320 (8.13)

0.290 (7.37)

0.015 (0.38)

0.008 (0.20)

SEATING

PLANE

0.200 (5.08)

MAX

0.405 (10.29) MAX

0.150 (3.81)

MIN

0.200 (5.08)

0.125 (3.18)

0.023 (0.58)

0.014 (0.36)

0.070 (1.78)

0.030 (0.76)

0.060 (1.52)

0.015 (0.38)

Figure 51. 8-Lead Ceramic Dual In-Line Package [CERDIP] (Q-8)

Dimensions shown in inches and (millimeters)

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

× 45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2440)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

COMPLIANT TO JEDEC STANDARDS MS-012AA

Figure 52. 8-Lead Standard Small Outline Package [SOIC]

Narrow Body (R-8)

Dimensions shown in millimeters and (inches)
