Technical data

Mechanical data



Design

Rectangular, QP08

Dimensions

32 x 20 x 8  mm

Housing material

Plastic, PP, Yellow

Active area material

PP, yellow

Electrical connection

Cable

Cable quality

Ø 3 mm, Gray, Lif9Y-11Y, PUR, 7  m

Suited for E-ChainSystems® acc. to

manufacturers declaration H1063M

Core cross-section

3 x 0.14  mm2

Environmental conditions



Ambient temperature

-25…+70  °C

Vibration resistance

55 Hz (1 mm)

Shock resistance

30  g (11 ms)

Protection class

IP67

MTTF

874  years acc. to SN 29500 (Ed. 99) 40

°C

Power-on indication

LED, Green

Switching state

LED, Yellow

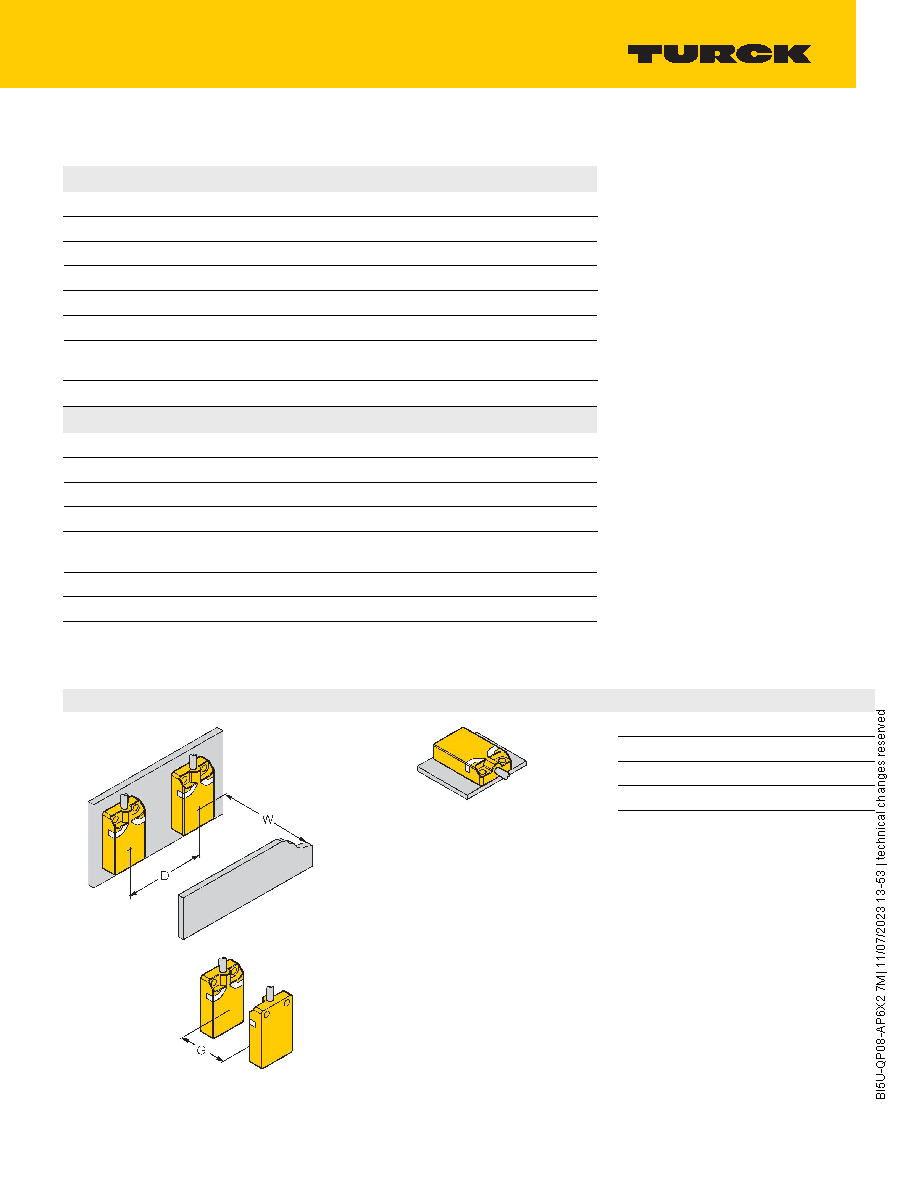

Mounting instructions

Mounting instructions/Description

Distance D

40 mm

Distance W

24 mm

Distance G

48 mm

Width active area B 20 mm

Mounting on metal possible
