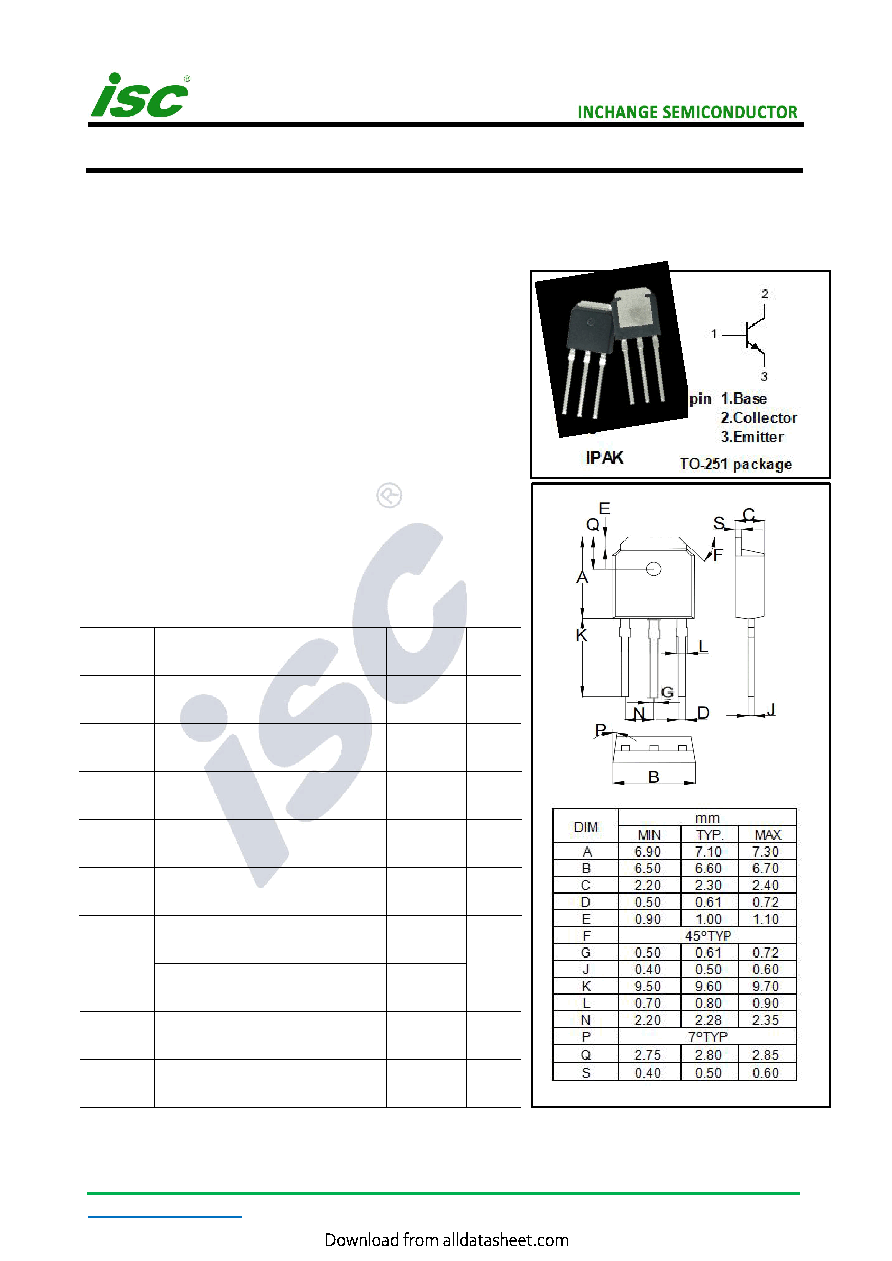

Silicon NPN Power Transistor

2SC3074

www.iscsemi.com

1

DESCRIPTION

·

Excellent linearity of hFE

·

Low collector-to-emitter saturation voltage

·

Fast switching speed

·

Complementary to 2SA1244

APPLICATIONS

·

Relay drivers, high-speed inverters , converters and

Other general high current switching applications

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VALUE

UNIT

VCBO

Collector-Base Voltage

60

V

VCEO

Collector-Emitter Voltage

50

V

VEBO

Emitter-Base Voltage

5

V

IC

Collector Current-Continuous

5

A

IB

Base Current-Continuous

1

A

PC

Collector Power Dissipation

1

W

Collector Power Dissipation

@TC=25℃

20

TJ

Junction Temperature

150

℃

Tstg

Storage Temperature Range

-55~150

℃

2
