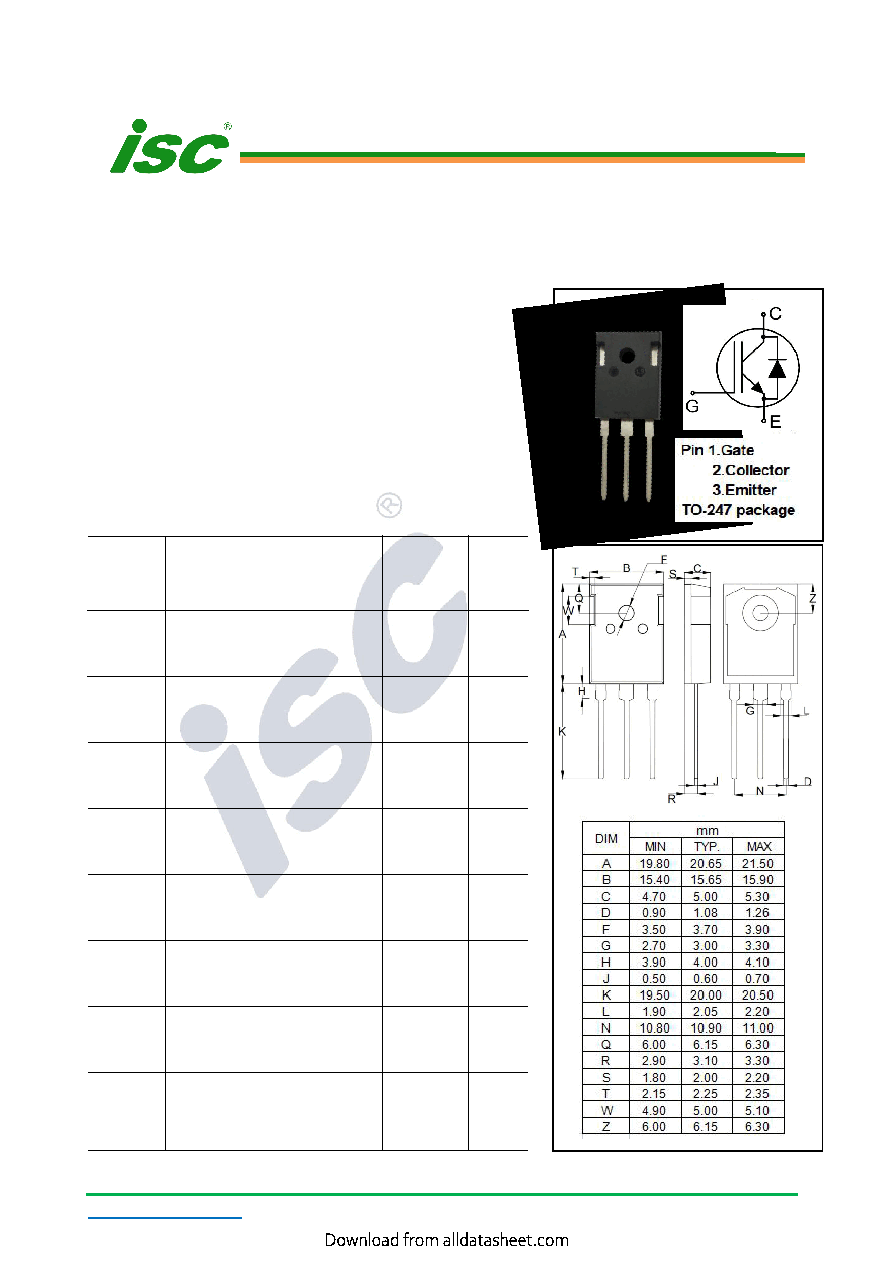

ISG2085

eq STGD5H60DF

Trench Field-stop IGBT

www.iscsemi.com

1

DESCRIPTION

· High ruggedness, temperature stable behavior

· Very low VCEsat

· Very tight parameter distribution

· Tight parameter distribution

APPLICATIONS

· Induction cooker

· Microwave ovens

ABSOLUTE MAXIMUM RATINGS

SYMBOL

PARAMETER

VALUE

UNIT

VCES

Collector-Emitter Voltage

1400

V

VGES

Gate-Emitter Voltage

±

20

V

IC

Collector Current-Continuous

@ TC= 25℃

68

A

IC

Collector Current-Continuous

@ TC= 100℃

45

A

ICM

Pulsed Collector Current Note1

200

A

PD

Power Dissipation @TC=25℃

246

W

TJ

Operating Junction Temperature

-55~150

℃

Tstg

Storage Temperature Range

-55~175

℃
