Date: 01/26/05

SP6691EB Evaluation Board Manual

Copyright 2005 Sipex Corporation

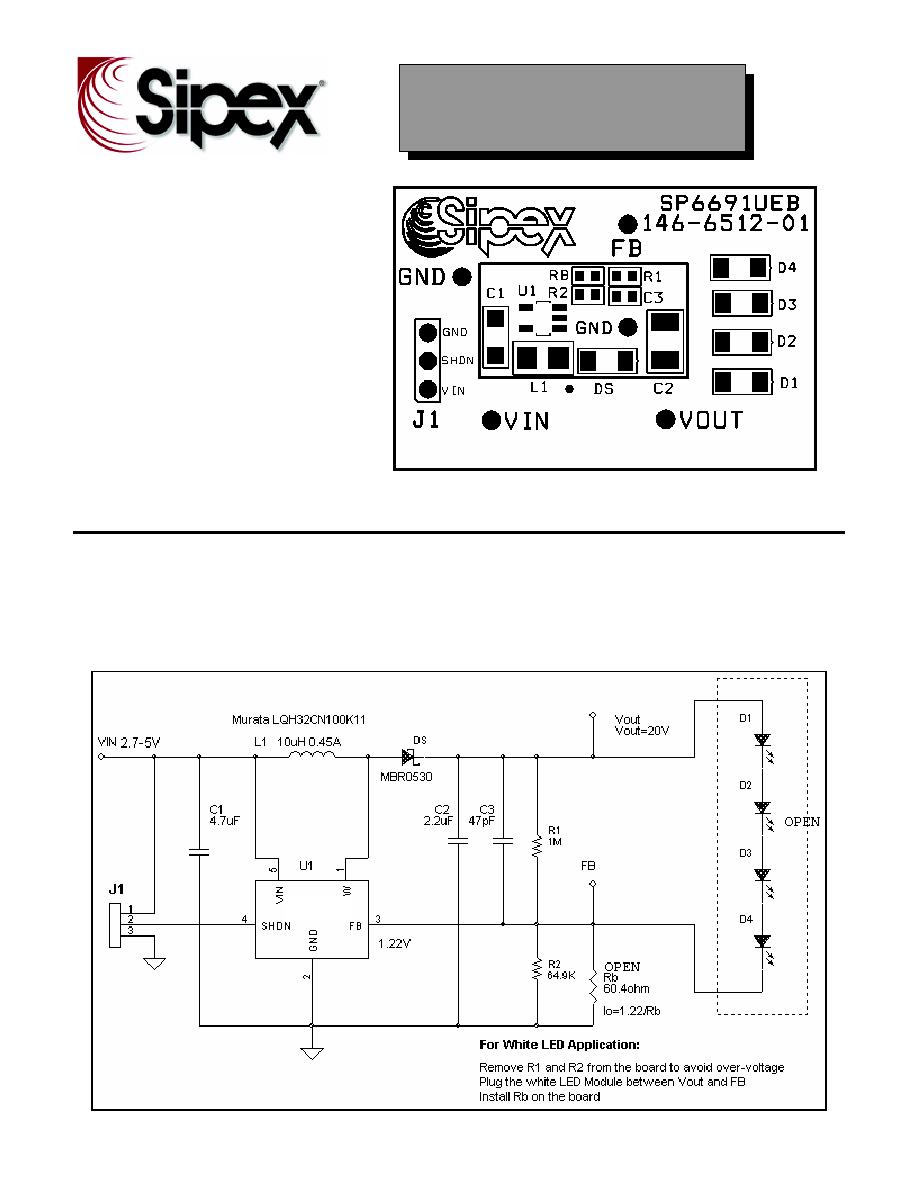

DESCRIPTION AND BOARD SCHEMATIC

The SP6691EB Evaluation Board is designed to help the user evaluate the performance of the

SP6691EB as a series white LED driver. The evaluation board is a completely assembled and

tested surface mount board which provides easy probe access points to all SP6691EB Inputs

and Outputs so that the user can quickly connect and measure electrical characteristics and

waveforms.

Ideal for series white LED driver

High output voltage, up to 30V

Low quiescent current: 20uA

Ultra low shutdown current: 10nA

High Efficiency: up to 80%

SOT23-5 Package & SMT

components for small, low profile

Power Supply

SP6691EB

Evaluation Board Manual

SP6691
