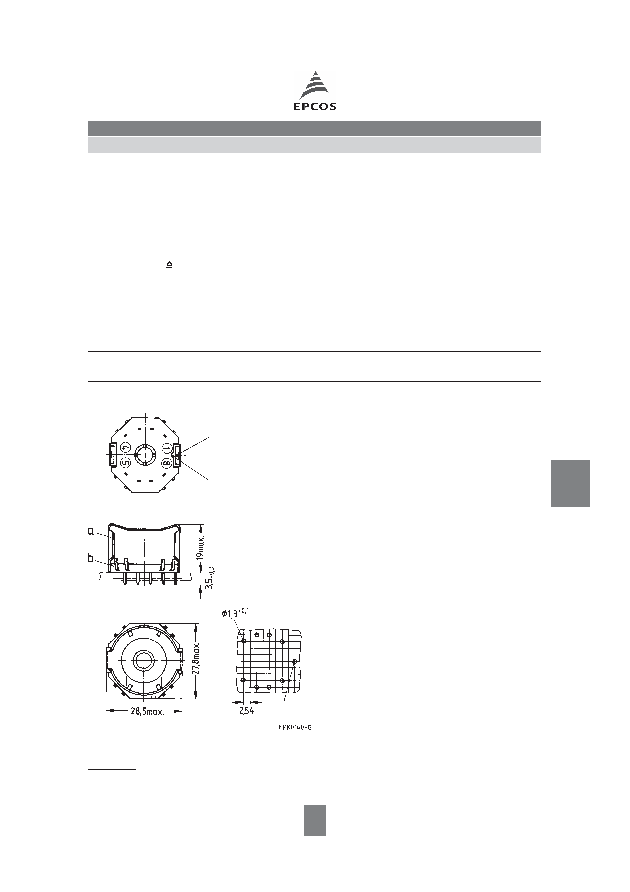

Mounting assembly for printed circuit boards

Terminal carrier

Material:

GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:

F

max. operating temperature 155 °C), color code gray

Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s

Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3,5 s

Yoke

Spring yoke, made of tinned nickel silver (0,4 mm), with ground terminal

Complete mounting assembly (8 solder terminals)

Ordering code: B65675-B5

a) Yoke

b) Terminal carrier with 8 solder terminals

Hole arrangement

View in mounting direction

This recess must be on the side of the

grounding pin to ensure that the yoke

locks into position.

Grounding pin

Ground

B65675

Accessories

P 26

× 16
