Data Sheet

ADL8143

8 GHz to 14 GHz, Low Noise Amplifier

Rev. 0

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to

change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FEATURES

►

Single positive supply (self biased) typical: 1.5 V and 35 mA

►

RBIAS drain current adjustment pin

►

Gain: 28.5 dB from 8 GHz to 10 GHz

►

Noise figure: 1 dB from 8 GHz to 10 GHz

►

Extended operating temperature range: −55°C to +125°C

►

Internally matched and AC-coupled

►

RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

APPLICATIONS

►

Satellite communications

►

Radar

►

Telecommunications

GENERAL DESCRIPTION

The ADL8143 is a low noise amplifier (LNA) that operates from 8

GHz to 14 GHz. The typical gain, noise figure, output power for 1

dB compression (OP1dB), and output third-order intercept (OIP3)

are 28.5 dB, 1 dB, 7.5 dBm, and 19.5 dBm, respectively, from 8

GHz to 10 GHz. The nominal quiescent current (IDQ), which can be

adjusted, is 35 mA from a 1.5 V supply voltage (VDD). The ADL8143

also features inputs and outputs that are AC-coupled and internally

matched to 50 Ω.

The ADL8143 is housed in an RoHS-compliant, 2 mm × 2 mm,

8-lead lead frame chip scale package [LFCSP] and is specified for

operation from −55°C to +125°C.

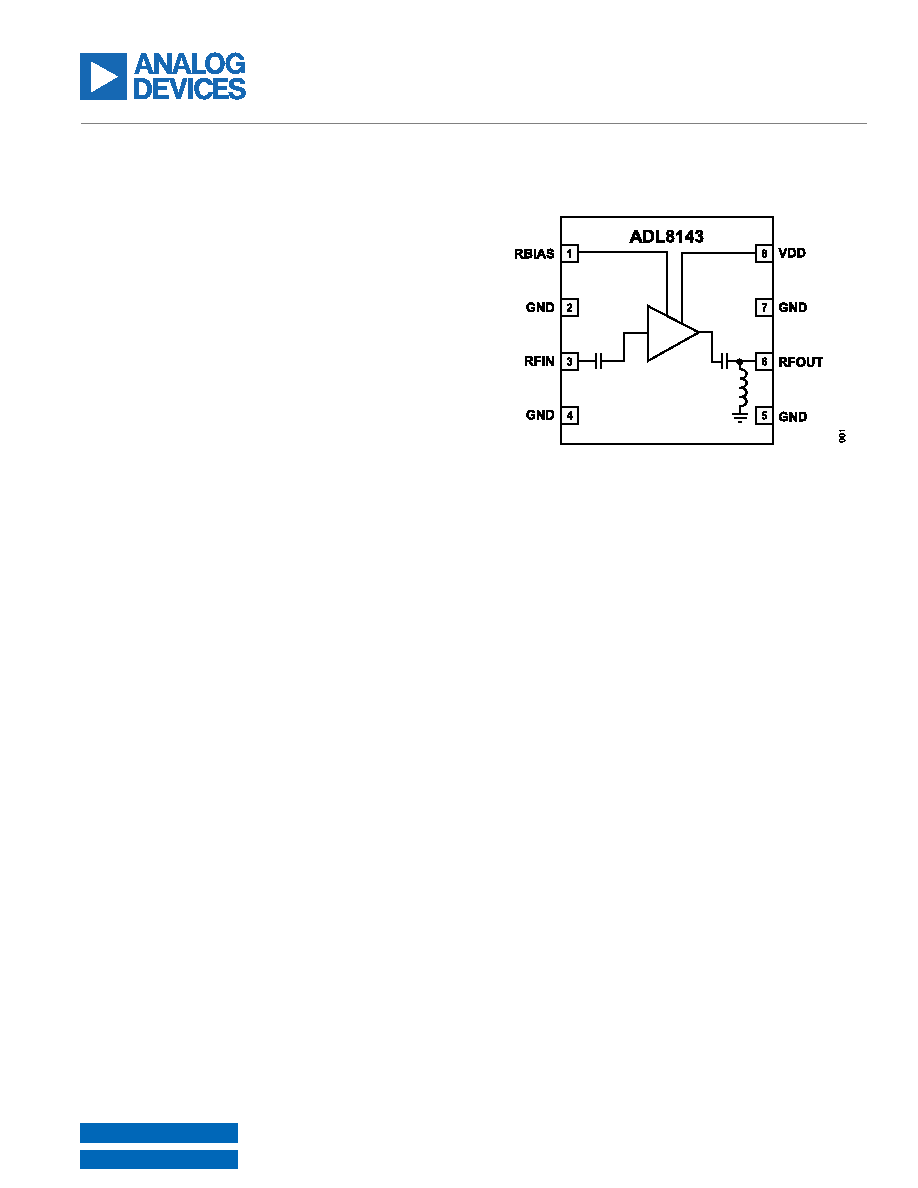

FUNCTIONAL BLOCK DIAGRAM

Figure 1. Functional Block Diagram
