TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 7 of 20

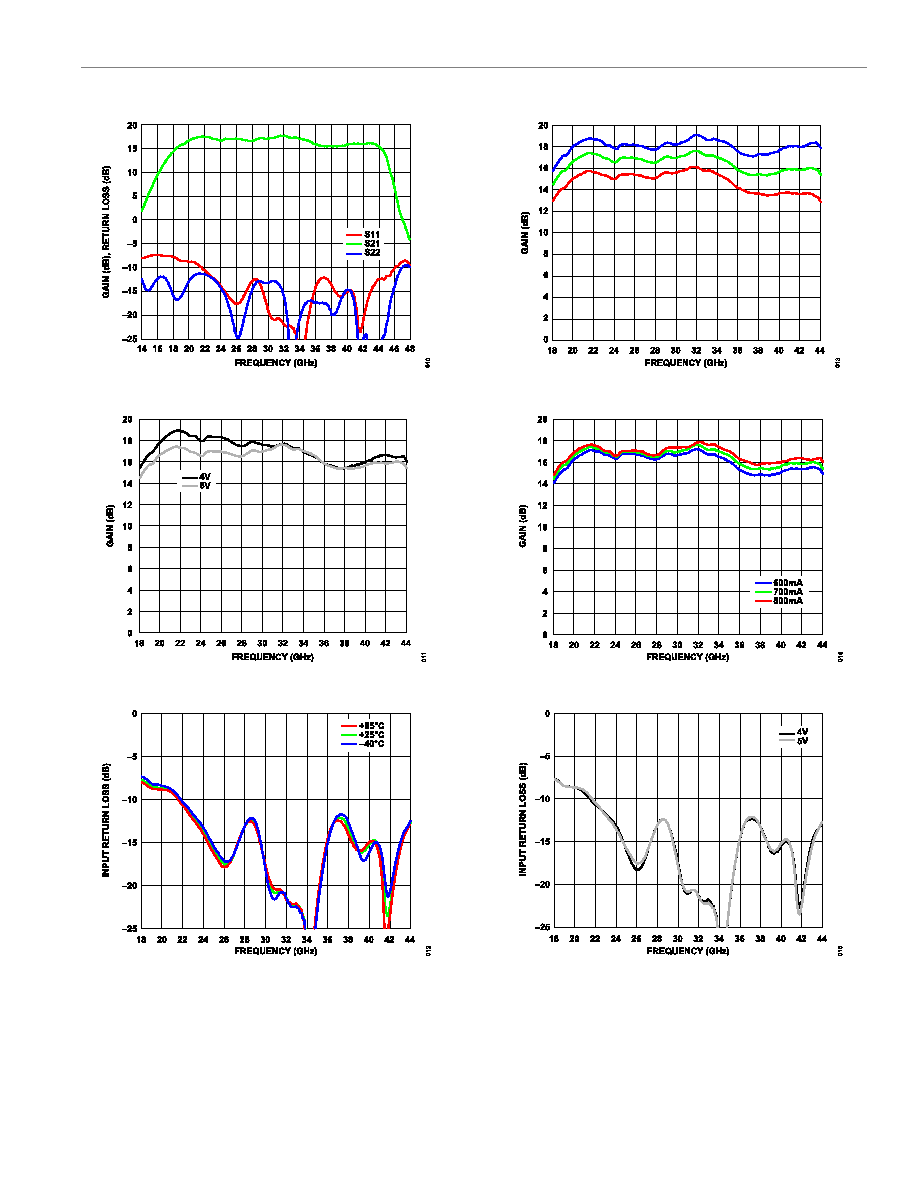

Figure 10. Gain and Return Loss vs. Frequency

Figure 11. Gain vs. Frequency for Various Drain Voltages

Figure 12. Input Return Loss vs. Frequency for Various Temperatures, VDD =

5 V, IDQ = 700 mA

Figure 13. Gain vs. Frequency for Various Temperatures

Figure 14. Gain vs. Frequency for Various Quiescent Drain Currents

Figure 15. Input Return Loss vs. Frequency for Various Drain Voltages
