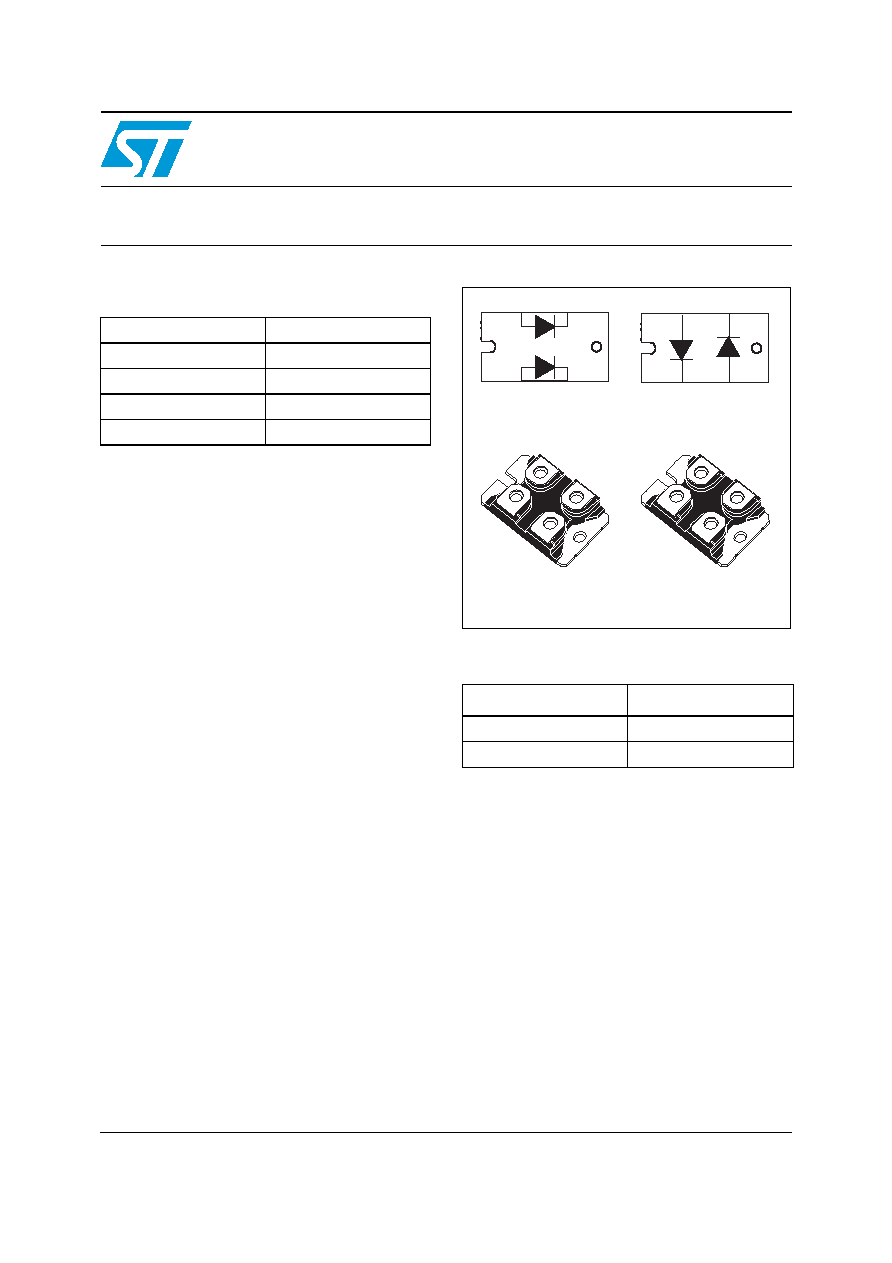

STTH12010TV
Ultrafast recovery - high voltage diode
Main product characteristics
Features and benefits
■ Ultrafast, soft recovery
■ Very low conduction and switching losses
■ High frequency and/or high pulsed current
operation
■ High reverse voltage capability
■ High junction temperature
■ Insulated package
– Electrical insulation = 2500 VRMS
Capacitance = 45 pF
Description
The compromise-free, high quality design of this
diode has produced a device with low leakage
current, regularly reproducible characteristics and
intrinsic ruggedness. These characteristics make
it ideal for heavy duty applications that demand
long term reliability.
These demanding applications include industrial
power supplies, motor control, and similar
industrial systems that require rectification and
freewheeling. These diodes also fit into auxiliary
functions such as snubber, bootstrap, and
demagnetization applications.
The improved performance in low leakage
current, and therefore thermal runaway guard
band, is an immediate advantage for reducing
maintenance of the equipment
Order codes
IF(AV)
2 x 60 A
VRRM
1000 V
Tj
150° C
VF (typ)
1.30 V
trr (typ)
49 ns
Part Number
Marking
STTH12010TV1
STTH12010TV1
STTH12010TV2
STTH12010TV2
K2
K1
A2
A1
K2
K1
A2
A1
A1
A1
A2
A2
K1
K1
K2
K2
ISOTOP
STTH12010TV1
ISOTOP
STTH12010TV2
