PowerPC 440SP Embedded Processor
Revision 1.23 - Sept 26, 2006
AMCC Proprietary
71
Data Sheet
Input/Output Timing

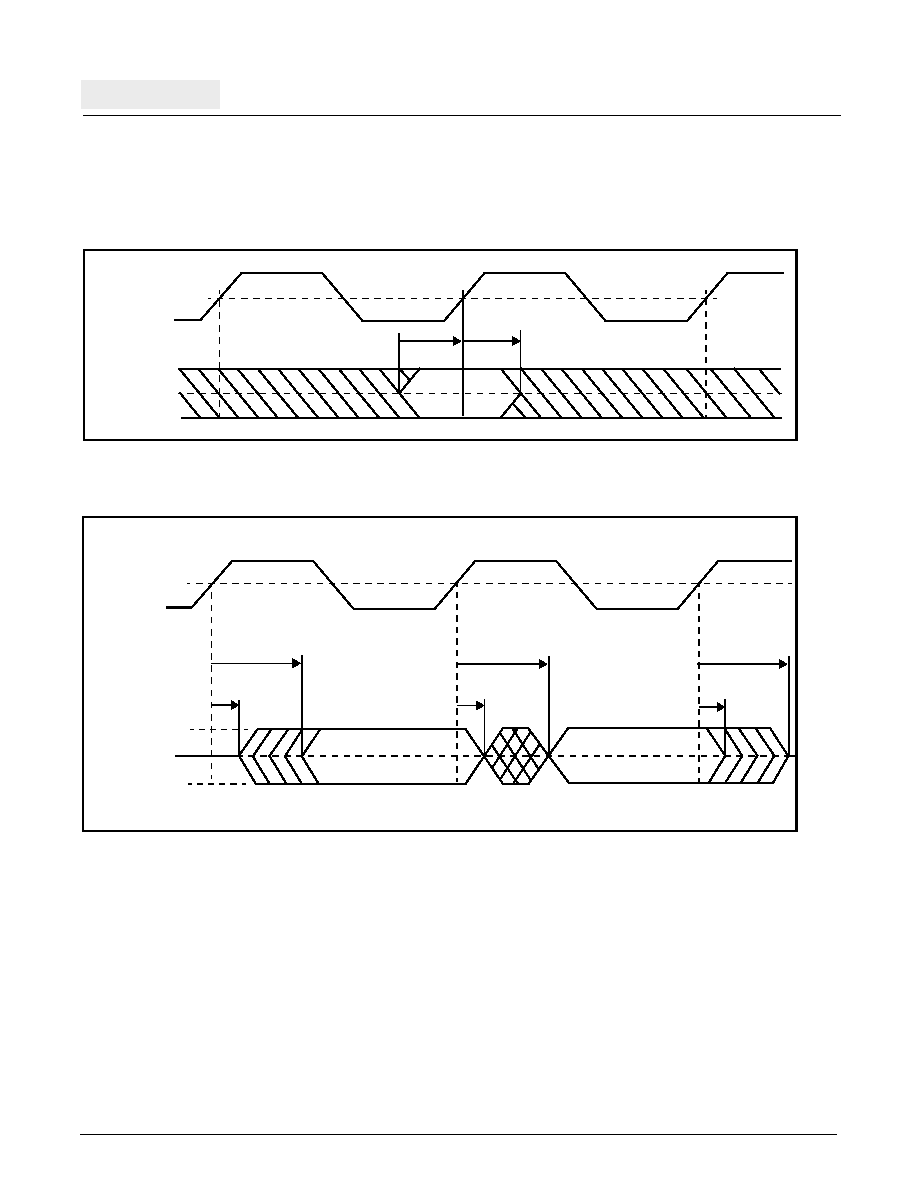

These timing diagrams illustrate the relationship of the timing parameters defined in the I/O Specification tables
that follow.
Figure 5. Input Setup and Hold Timing Waveform
Figure 6. Output Delay and Hold Timing Waveform
Clock
TIS
TIH
min
min
Inputs
Valid
Valid
Clock
Outputs
Valid
TOH min
TOVmax
TOVmax
TOH min
TOVmax
TOH min
Float (High-Z)
High (Drive)
Low (Drive)
