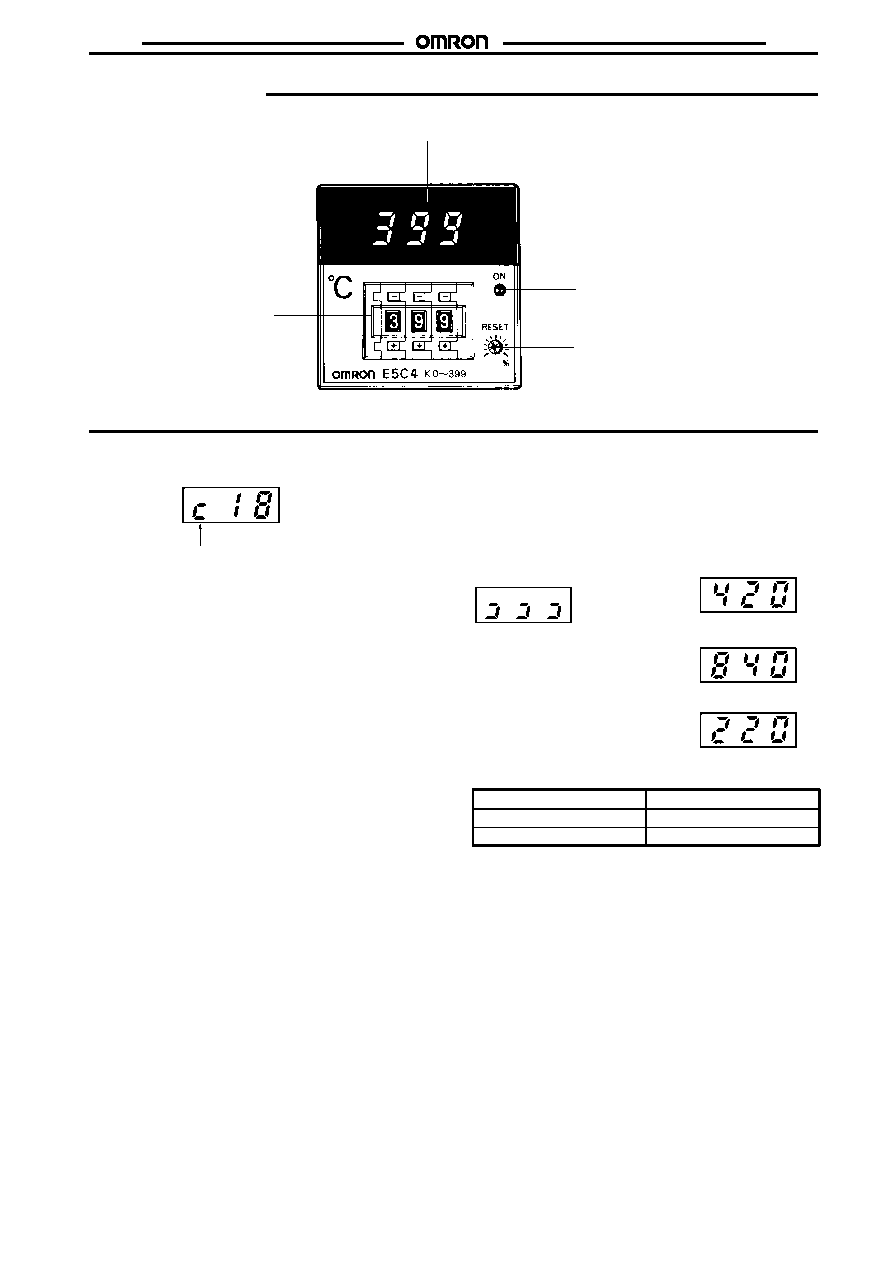

Nomenclature

Temperature indicator

Digital switch for

temperature setting

Operation indicator

RESET shaft

Negative Value Display (Example: –18

°C)

Indicates that the temperature

is below 0

°C.

Note:

The E5C4 does not have a parameter display any tempera-

ture below 0

°C. Therefore, the accuracy of any tempera-

ture below 0

° displayed by the E5C4 cannot be guaranteed.

Overflow Display

The following will be displayed if the sensor burnout detection circuit

operates or the process value exceeds the temperature range that

has been preset.

(Except models with a set temperature range from 0

°C to 399°C,

32

°F to 799°F and 32°F to 199°F.)

0

°C to 999°C or 0°C to 99.9°C

or 32

°F to 999°F

0

°C to 399°C

32

°F to 799°F

32

°F to 199°F

Operation Indicator

Indicator

Output

Red

Lit

ON

Not lit

OFF
