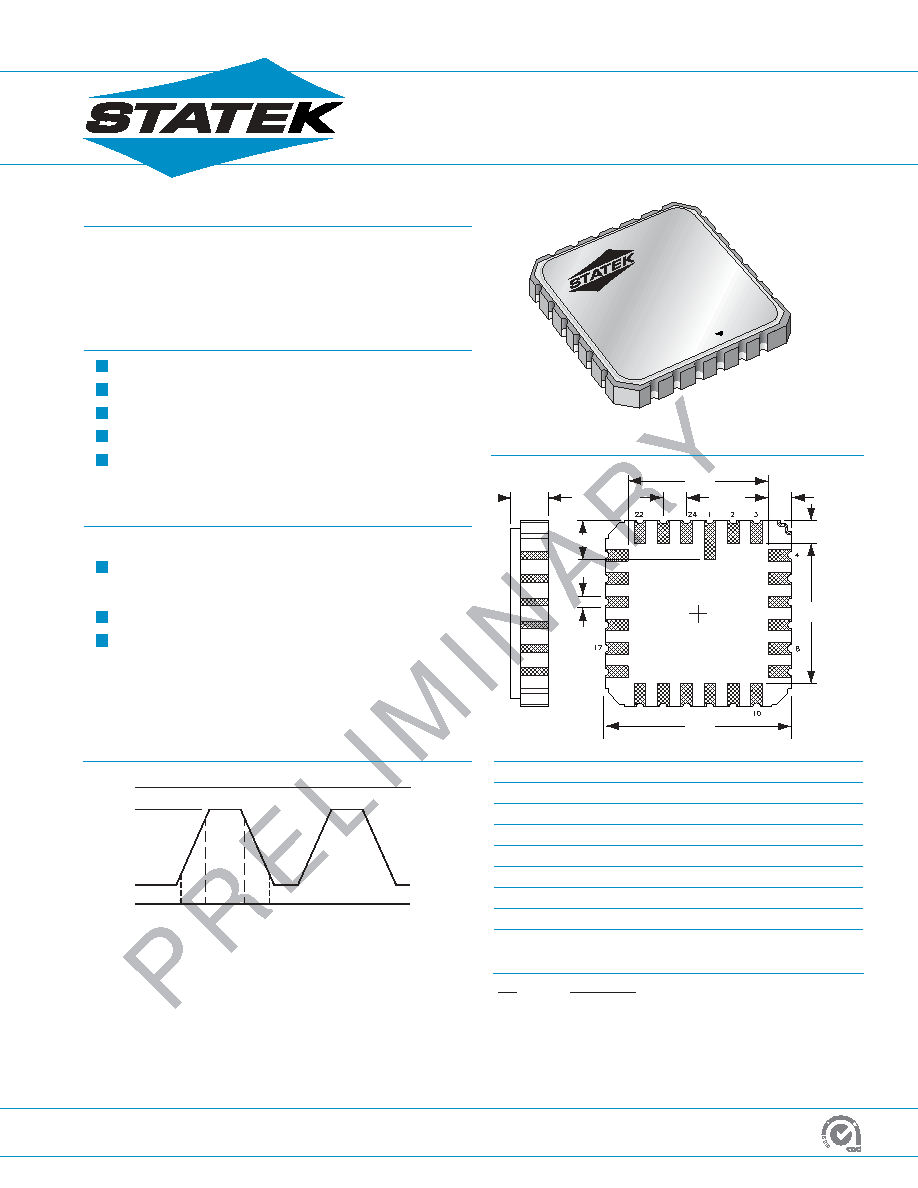

STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256 www.statek.com

YS

TEM

CERTIFIC

AT

01

10159 - Rev A

DESCRIPTION

The SQXO2ATSM oscillator consists of a CMOS-

compatible hybrid circuit, hermetically sealed in a industry

standard 24-pin ceramic leadless chip carrier.

FEATURES

CMOS and TTL compatible

High frequency (AT)

Wide temperature range

Full military testing available

Hermetically sealed

APPLICATIONS

Industrial, Computer & Communications

Rugged Computer

Military & Aerospace

Intelligent Munitions

Avionics

SQXO2ATSM OSCILLATOR

312 kHz to 120 MHz

Surface Mount Crystal Oscillator

™

B

D

C

A

C

E

G

F

DIM

inches

mm

A0.410 MAX.

10.1 6 MAX.

B0.080 MAX.

2.03 MAX.

C0.300 MAX.

7.62 MAX.

D0.050 TYP.

1.27 TYP.

E0.085 TYP.

2.16 TYP.

F0.050 TYP.

1.27 TYP.

G0.025 TYP.

0.64 TYP.

PIN CONNECTIONS

Connection

5,6

VDD

13,14

Output

19,20

Output Enable, INH (Tri-State) or NC

23,24

Ground

All Others NC

SQXO2SM

32MHz

PACKAGE DIMENSIONS

OUTPUT WAVE FORM

* Of VDD

VDD

VOH

tr

tf

0

VOL

90%*

10%*
