GS-R12F

Pin settings

3/12

1

Pin settings

1.1

Pin connection

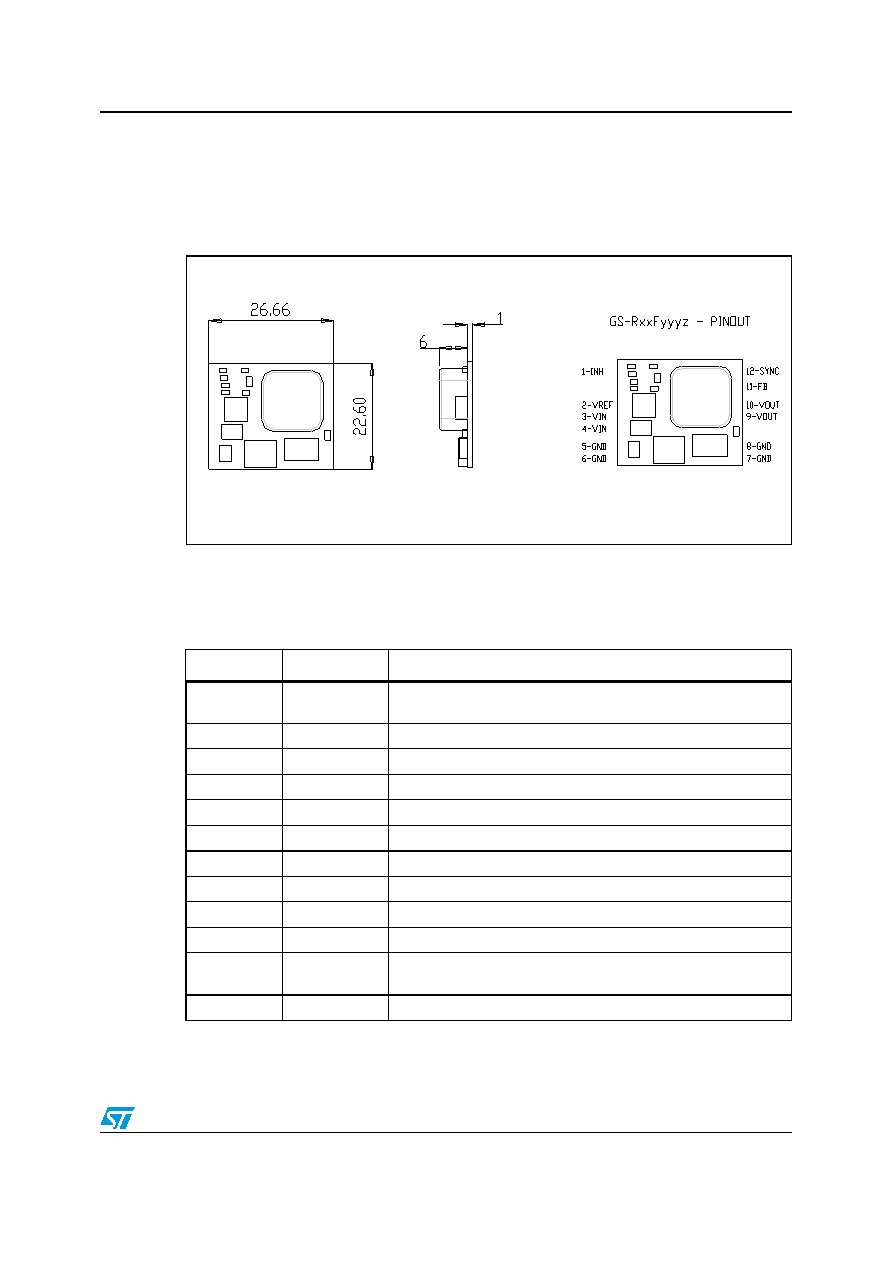

Figure 1.

Pin connection and mechanical data (dimensions in mm)

1.2

Pin description

Table 1.

Pin description

Name

Function

Description

1INH

A logic high level disables the device. When the pin is open, an

internal pull up disables the device

3.3V reference voltage

3

Input +

DC input voltage

4

Input +

DC input voltage

5

Input GND

Return for input voltage source

6

Input GND

Return for input voltage source

7

Output GND

Return for output voltage source

8

Output GND

Return for output voltage source

Regulated power output

10

Regulated power output

11

FB

Feedback input, available on adjustable device and on request for

additional compensation

12

Sync

Master/Slave synchronization
