Data Sheet

ADL6331

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 13 of 54

ADL6331-A

V33AMP1 = V33AMP1A = V33AMP2 = V33AMP2A = V33FUSE = 3.3 V, TA = 25°C, fixed gain mode, DSA attenuation = 0 dB, RS = 50 Ω differential, and

RL = 50 Ω single-ended, unless otherwise noted.

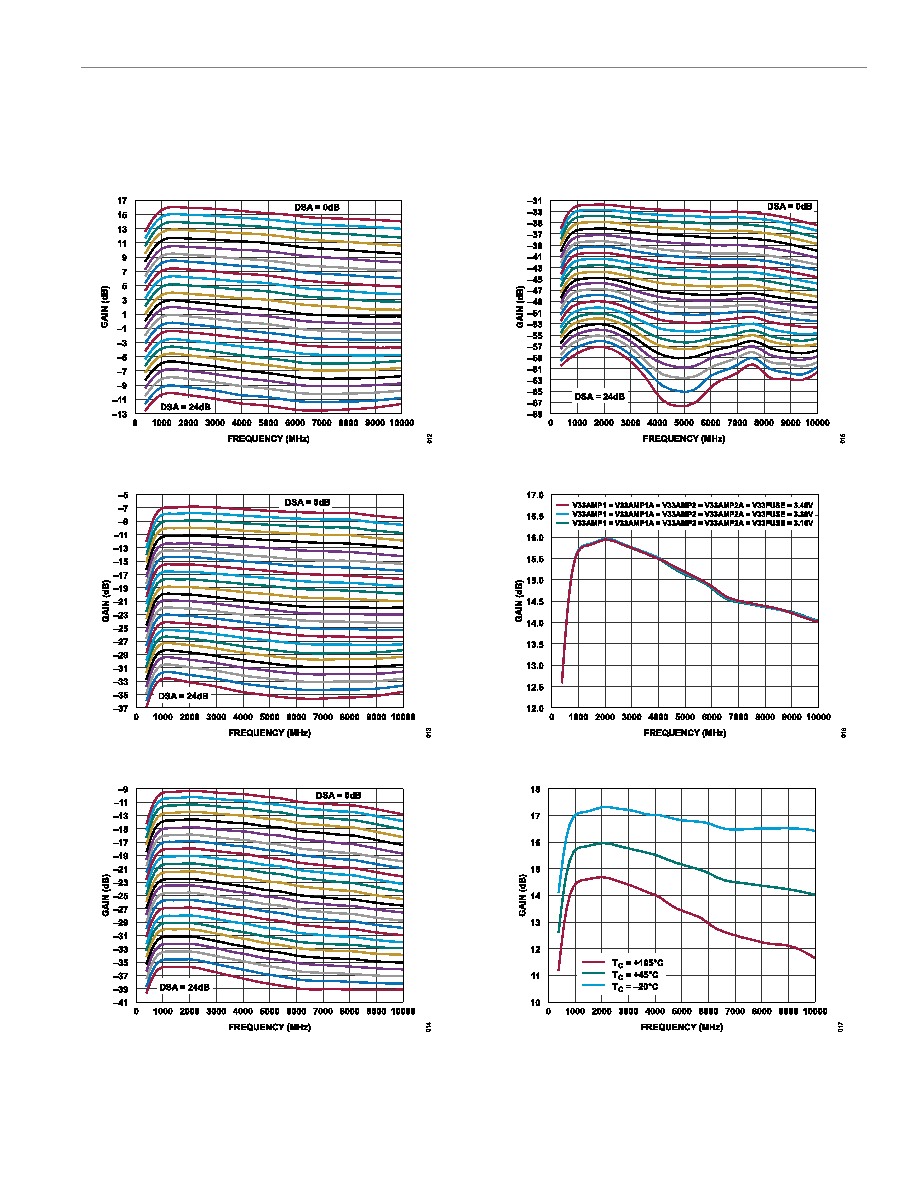

Figure 12. Gain vs. Frequency, 1.0 dB DSA Steps

Figure 13. Gain vs. Frequency, 1.0 dB DSA Steps, AMP2 Bypass

Figure 14. Gain vs. Frequency, 1.0 dB DSA Steps, AMP1 Bypass

Figure 15. Gain vs. Frequency, 1.0 dB DSA Steps, AMP1 and AMP2 Bypass

Figure 16. Gain vs. Frequency for Various Supplies

Figure 17. Gain vs. Frequency for Various Temperatures
