BL-R2132K データシート(PDF) 2 Page - BRIGHT LED ELECTRONICS CORP

部品番号 BL-R2132K
部品情報  GaP /GaP Green Low power consumption.
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
メーカー  BRIGHT [BRIGHT LED ELECTRONICS CORP]
ホームページ  http://www.brightled.co.kr
Logo BRIGHT - BRIGHT LED ELECTRONICS CORP

BL-R2132K データシート(HTML) 2 Page - BRIGHT LED ELECTRONICS CORP

  BL-R2132K Datasheet HTML 1Page - BRIGHT LED ELECTRONICS CORP BL-R2132K Datasheet HTML 2Page - BRIGHT LED ELECTRONICS CORP
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
B
BR
RIIG
GH
HT
T L
LE
ED
D E
EL
LE
EC
CT
TR
RO
ON
NIIC
CS
S C
CO
OR
RP
P..
B
BL
L--R
R2
21
13
32
2F
F
Ver.1.0 Page: 2 of 2
SINCE 1981

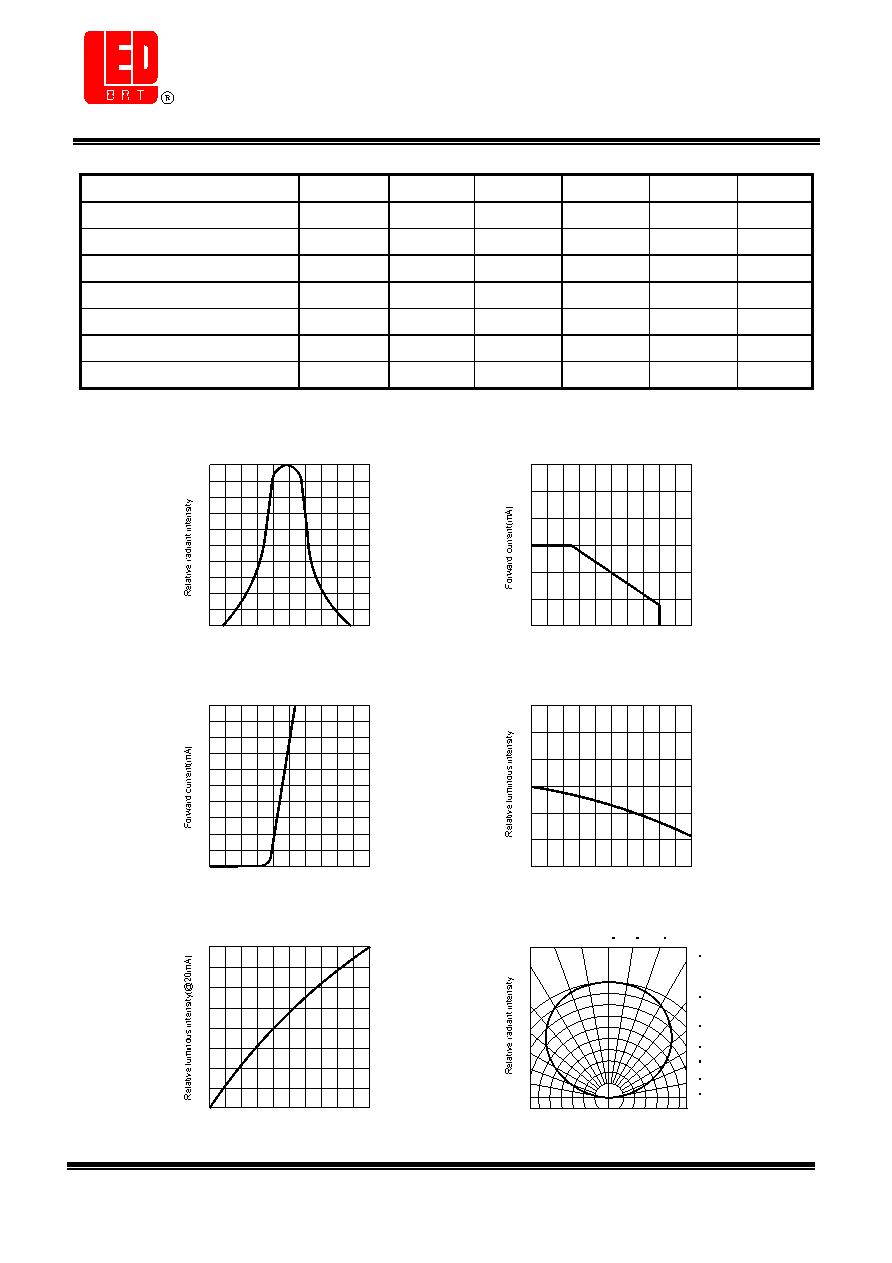

● Electrical and optical characteristics(Ta=25℃)
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Forward Voltage
VF
IF=20mA
-
2.2
2.6
V
Luminous Intensity
Iv
IF=20mA
-
7.0
-
mcd
Reverse Current
IR
VR=5V
-
-
100
µA
Peak Wave Length
λ
p
IF=20mA
-
568
-
nm
Dominant Wave Length
λ
d
IF=20mA
560
-
576
nm
Spectral Line Half-width
∆λ
IF=20mA
-
30
-
nm
Viewing Angle
2θ1/2
IF=20mA
-
125
-
deg
● Typical electro-optical characteristics curves
Fig.3 Forward current vs. Forward voltage
Fig.4 Relative luminous intensity
0
0.5
1.0
1.5
10
20
30
40
50
2.0
0
10
20
30
40
50
12
3
4
5
520
0
0.5
1.0
570
620
0
-40
0.5
-20
0
20
1.0
1.5
2.0
2.5
3.0
40
60
40
10
10
0
20
30
20
40
60
50
60
100
80
Forward current (mA)
Fig.5 Relative luminous intensity
vs. Forward current
Forward voltage(V)
0.7
0.8
0.9
1.0
0.5
0.3
0.1
0.2
70
80
90
0.4
0.6
40
60
50
vs. Ambient temperature
Ambient temperature Ta( )
℃
Fig.6 Radiation diagram
010
30
20
Fig.1 Relative intensity vs. Wavelength
Wavelength λ (nm)
Fig.2 Forward current derating curve
vs. Ambient temperature
Ambient temperature Ta( )
℃
