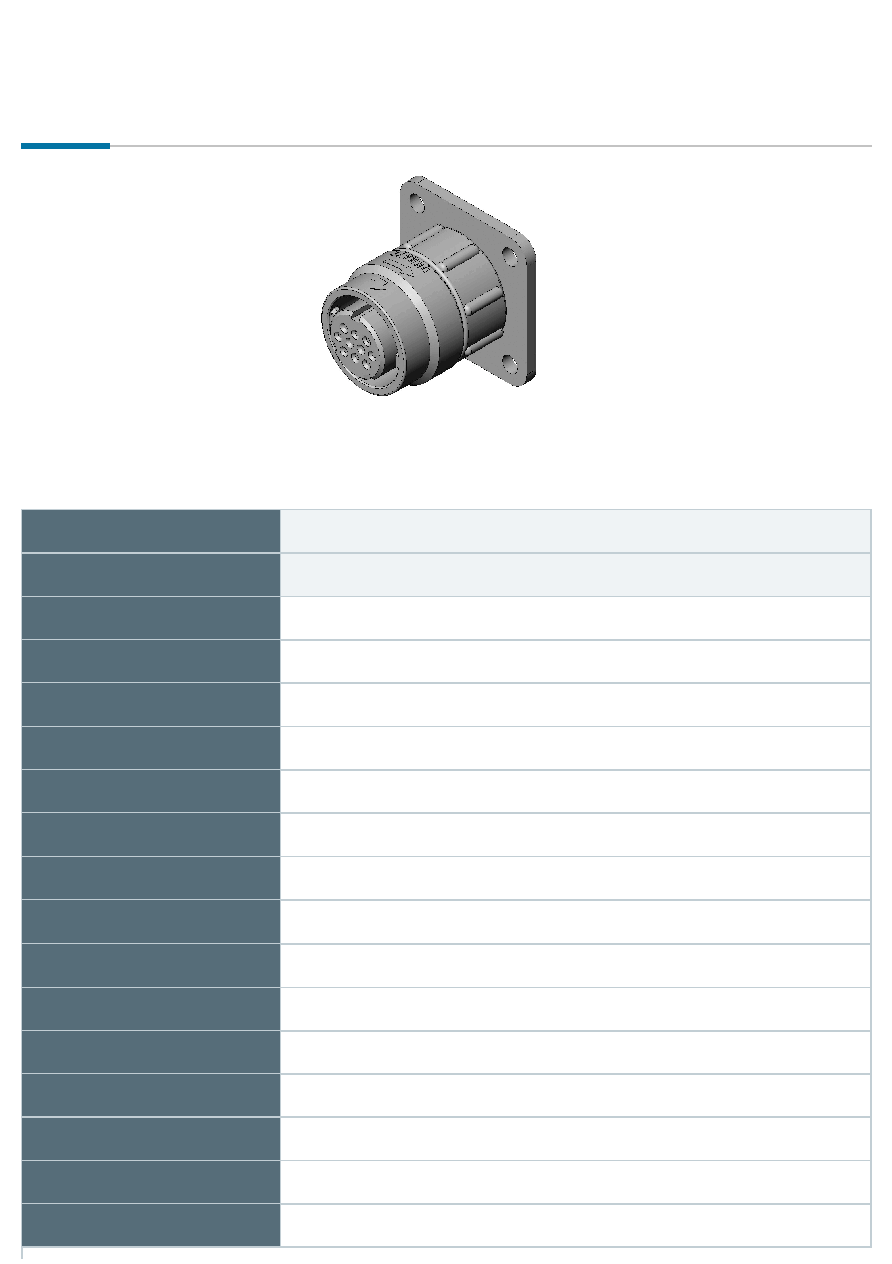

JN2MS10SL1-R

Features

Small circular connector, Square flange, 10 pos., Panel mount plug

Part Number

JN2MS10SL1-R

Status

Active

Number of Positions

10 pos.

Rated Current

3A

Rated Voltage

Waterproof/ Non-waterproof

Waterproof (when mated)

Applications

Industrial equipment interface　　

Connector Type

Panel mount plug

Connector Style

Contact Type

Socket (Sold separately)

Wire Termination Method

Crimp or Soldering

Applicable Wire Size (AWG)

Coupling Style

One-touch locking

Contact Size

#22

Shell Size

S

Contact Arrangement Code

Contact Size X No. of Contacts

#22*10

Product Details
