1/16

September 2003

s

INPUT VOLTAGE UP TO 40V

s

OUTPUT VOLTAGE ADJUSTABLE FROM 2

TO 37V

s

POSITIVE OR NEGATIVE SUPPLY

OPERATION

s

SERIES, SHUNT, SWITCHING OR

FLOATING OPERATION

s

OUTPUT CURRENT TO 150mA WITHOUT

EXTERNAL PASS TRANSISTOR

s

ADJUSTABLE CURRENT LIMITING

DESCRIPTION

The

LM723

is

a

monolithic

integrated

programmable voltage regulator, assembled in

14-lead dual in-line plastic and SO-14 micro

package. The circuit provides internal current

limiting. When the output current exceeds 150mA

an external NPN or PNP pass element may be

used. Provisions are made for adjustable current

limiting and remote shut-down.

LM723

HIGH PRECISION VOLTAGE REGULATOR

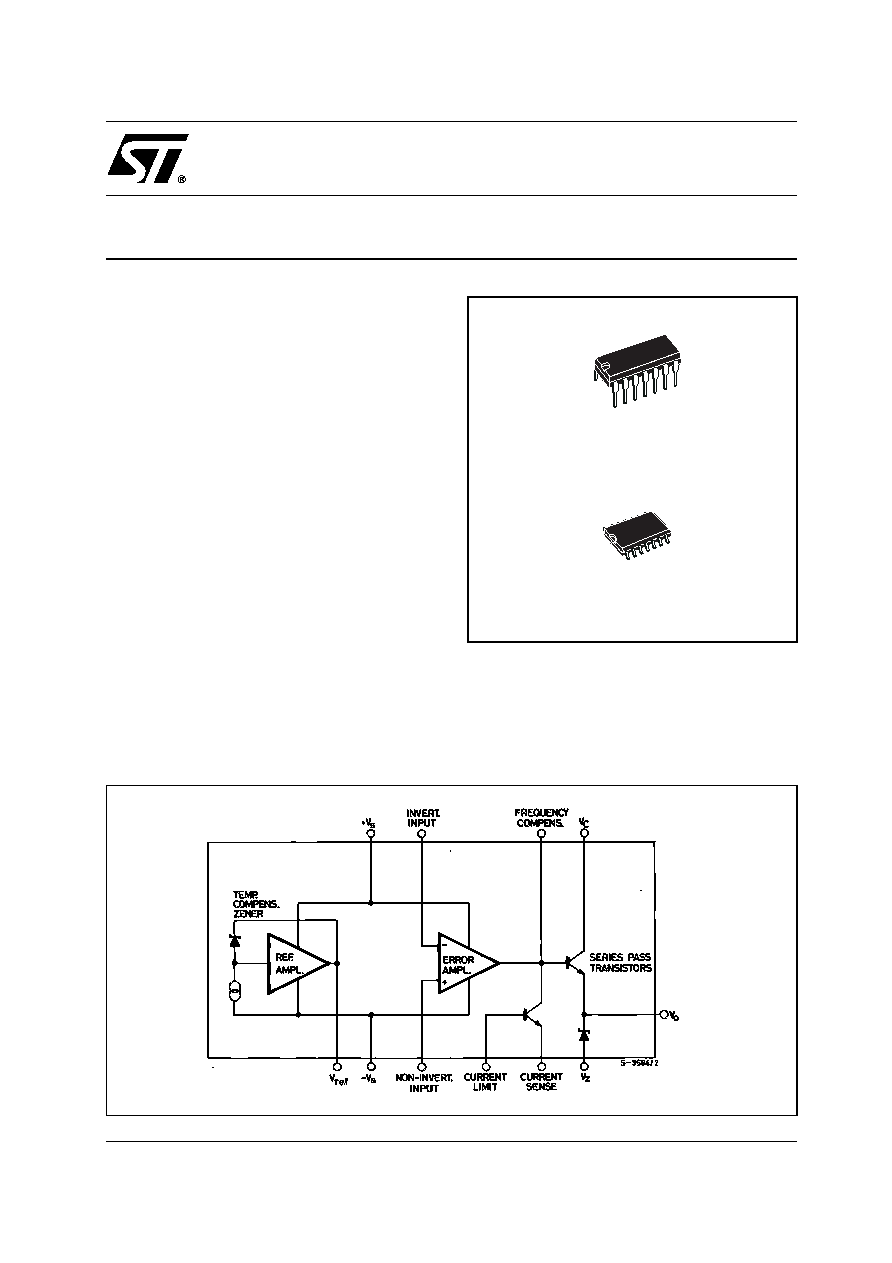

SCHEMATIC DIAGRAM

DIP-14

SO-14
