HG72704CU-RSP datasheet(1/1 Pages) L-COM

部品番号	HG72704CU-RSP

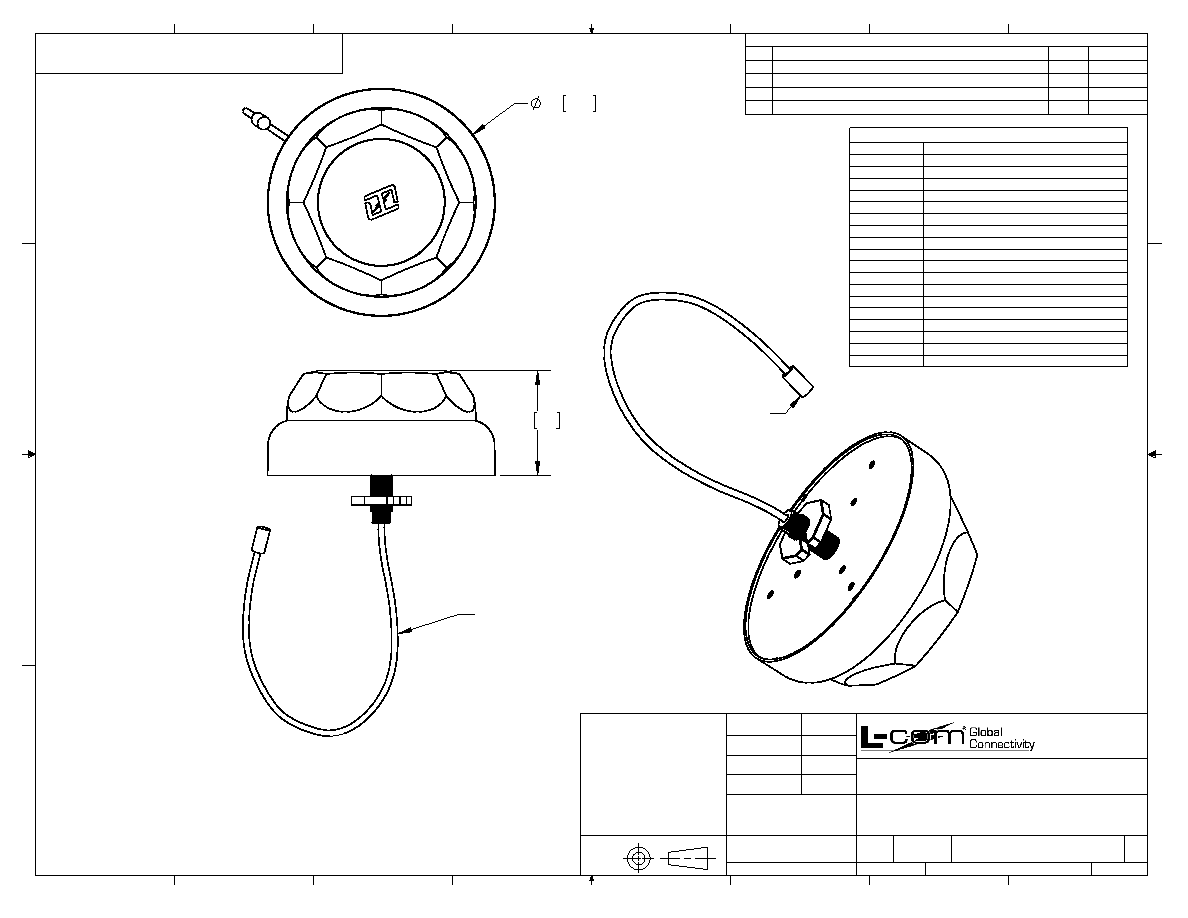

部品情報	700MHz-2.7GHz 4dBi OMNI CEILING ANTENNA W/12 INCH PIGTAIL AND CONNECTOR

PDF	1 Pages

Scroll/Zoom	100%

メーカー	L-COM [Infinite Electronics International, Inc.]

ホームページ	https://www.l-com.com/

Logo

1 / 1 page

3.4 86

12 INCH

COAXIAL

PIGTAIL

7.4 187

SEE CHART FOR

CONNECTOR TYPE

ANTENNA

NOTES:

PACKAGING:

COMPONENT SHALL BE INDIVIDUALLY PACKAGED IN ACCORDANCE

WITH L-COM SPECIFICATION PKG-00097

- ALL DIMENSIONS FOR REFERENCE -

RoHS Compliant 

MODEL# HG72704CU-

SUFFIX

CONNECTOR TYPE

NF

N-FEMALE

NM

N-MALE

RSP

RP SMA-PLUG

RSJ

RP SMA-JACK

RTP

RP TNC-PLUG

RTJ

RP TNC-JACK

RNP

RP N-PLUG

RNJ

RP N-JACK

SM

SMA MALE

SF

SMA FEMALE

TM

TNC MALE

TF

TNC FEMALE

BM

BNC MALE

RBP

RP BNC PLUG

RBJ

RP BNC JACK

WM

WAVE RIDER COMPATIBLE TYPE

AM

ORiNOCO COMPATIBLE TYPE

QP

QMA PLUG RIGHT ANGLE

A

B

C

D

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845

SCALE:

SIZE

CAD FILE:

DWG. NO.

A

SHEET

OF

REV.

DATE

APPROVALS

DRAWN BY

CHECKED BY

APPROVED BY

1

2

3

4

5

6

7

8

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

A

B

C

D

1

2

3

4

5

6

7

8

HG72704CU

A

HG72704CU.SLDDRW

1

P.PESA

03/21/13

REVISIONS

DESCRIPTION

APPROVED

REV

DATE

P.PESA

03/21/13

3/29/13

A

-

INITIAL RELEASE

-

D.GRIFFIN

-
