DBD-R2V1
Analog Technologies, Inc.

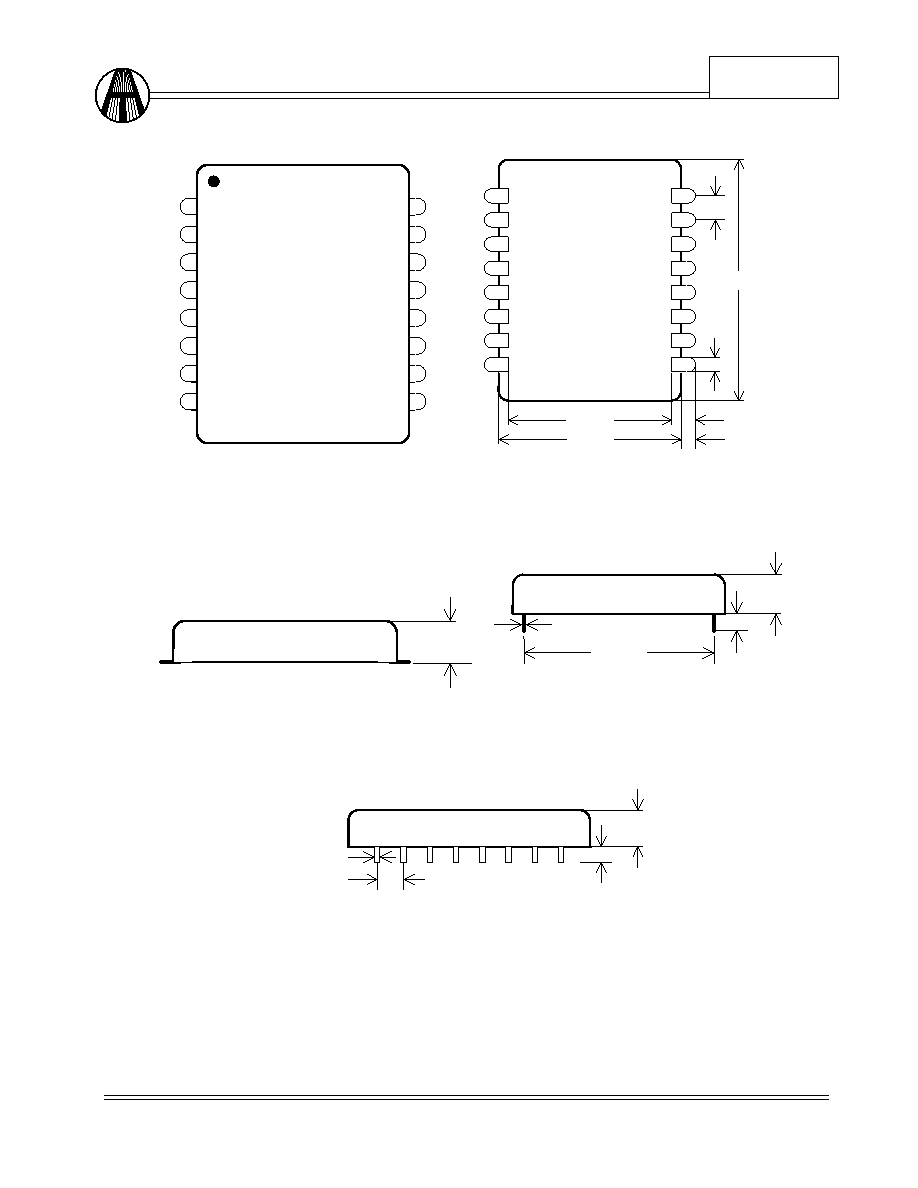

Mechanical dimensions
Figure 2 Top View of DBD-R2V1-S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
LIO
CLGD
GND
LPI
LPS
LIS
LDC
GND
VPS
GND
SDI/MIND
CSLD
SD
2.5V
SCK
LDA
25.5mm
2.54mm
20mm
1.26mm
1.26mm
2.26mm
Figure 3 Bottom View of DBD-R2V1-S
18mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4.5mm
Figure 4 End View of DBD-R2V1-S
4.5mm
0.42mm
Figure 5 End View of DBD-R2V1-D
18mm
3mm
4.5mm
0.6mm
Figure 6 Side View of DBD-R2V1-D
2.54mm
3mm
